ULTRA-CUT 400 XT

Manual 0-5275 REPLACEMENT PARTS 6-15

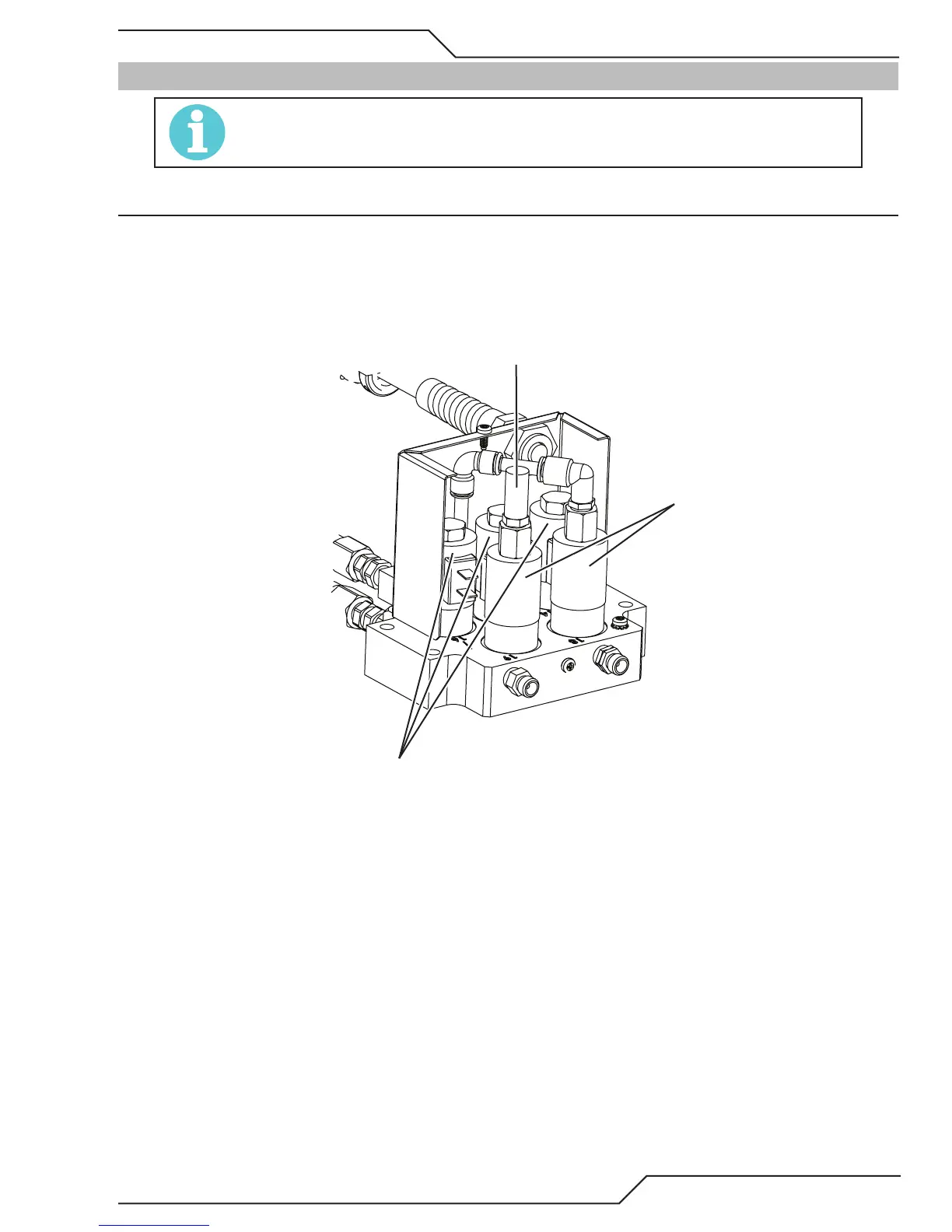

6.15 XTL Torch Valve Assembly Internal Replacement Parts

NOTE!

The XTL Torch Valve Assembly requires Firmware versions 3.2 or higher for the C.C.M. and 3.1

or higher for the GCM 2010. It also requires the resetting of DIP switches in the C.C.M..

Item # Qty Description Catalog #

1 1 Exhaust Mufﬂer 9-3321

2 2 Solenoid 9-3319

3 3 Solenoid 9-9392

Art # A-07651
