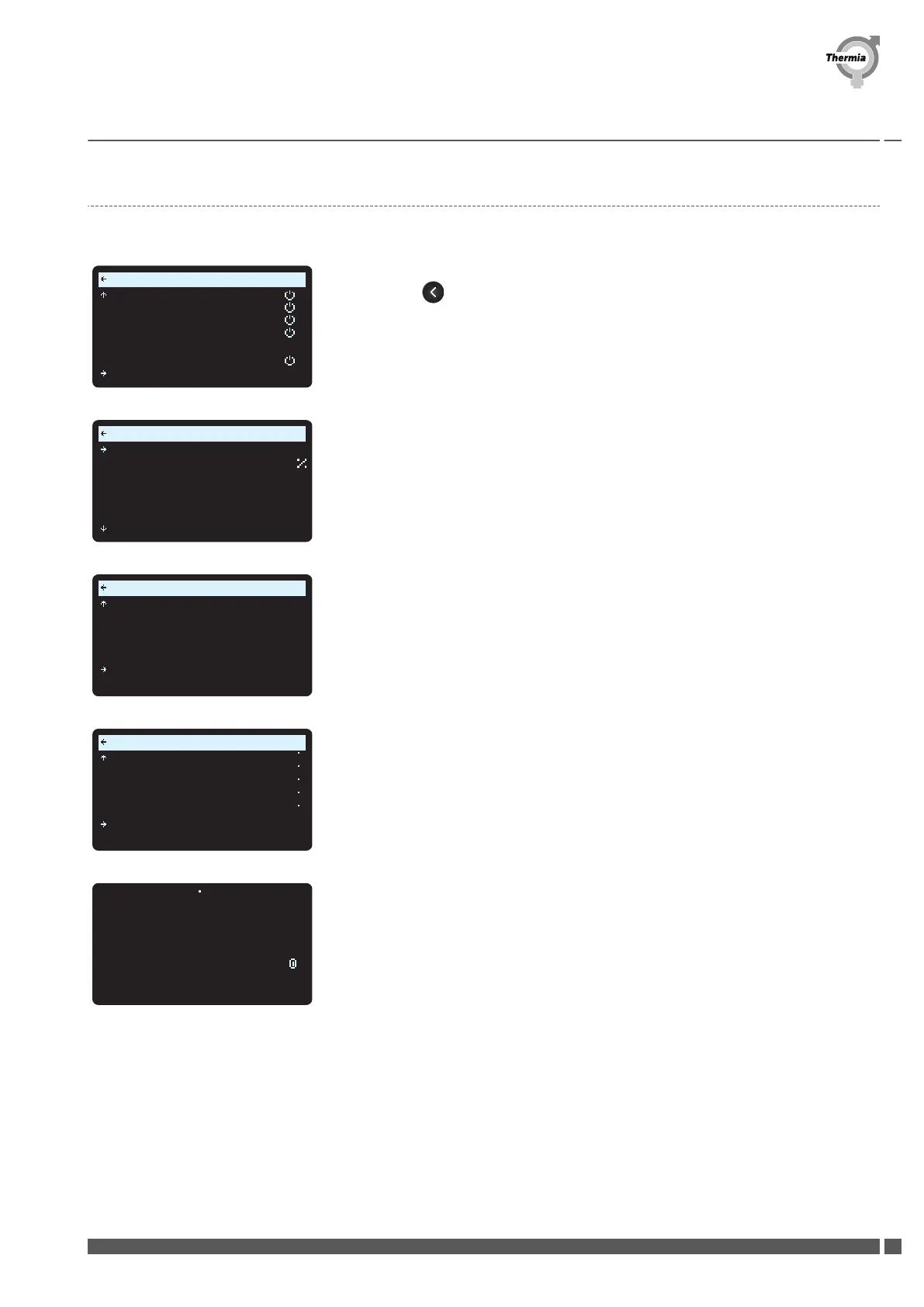

11.9 Zoning
Configuration of zoning function:
POOL
DISTR. CIRCUIT 1
DISTR. CIRCUIT 2
BUFFER TANK
OPTIMUM
CURRENT LIMITER
ZONING
ON
2
SYSTEM
Put the Operation mode to "OFF".
Press and hold to gain access to the SERVICE menu.
Navigate to SERVICE - INSTALLATION - SYSTEM and set ZONING to use one or two zones.
1
0
0
0
0
0
0
MANUAL TEST
CONDENSER PUMP
REV.V.HOT WATER
IMM.HEAT 1
IMM.HEAT 2
EXT.AUX.HEATER
POT.FREE
MANUAL TEST
Zoning is now activated. Navigate to MANUAL TEST in the SERVICE menu and set it to "1".
▪
0 = Manual test inactive
▪
1 = Manual test active
0
0
-
0
0
0
0
POT.FREE
BY-PASS COOLING
SYSTEM SHUNT
REV.V.POOL
ALARM
ZONE 1
ZONE 2
MANUAL TEST
To test the 2-way valve, scroll down to ZONE 1 and ZONE 2 at the bottom of the MANUAL TEST
menu.
▪
0 = output inactive (closed)
▪
1 = output active (open)
20.0
-1.0
30.0
30.0
6.0
1
1
C
C
C
C
C
REFR 1
REFR 2
DISCH. PIPE
COMPR. TEMP
AMB.T.OUTD.UNIT
ZONE 1
ZONE 2
OP.DATA
In the OP.DATA menu, the state of the input (relay) of the room sensor can be found.
▪
0 = input inactive (open)
▪
1 = input active (closed)
ZONE STOP
OPERAT. COMPRESSOR
ROOM 20 C
If both zones are closed it will be indicated on the start page in the display.
Commissioning iTec XT
Thermia AB AWIXT01CG0102
55
