Maintenance
Cleaning the Q00 Ion Optics
92 TSQ Series Hardware Manual Thermo Scientific
Removing the Ion Optics Cage Assembly
 To remove the ion optics cage assembly
1. Using a Phillips screwdriver, remove the three screws fastening the ion source interface
cover to the mass spectrometer, and place the cover in a safe place. See Figure 51.

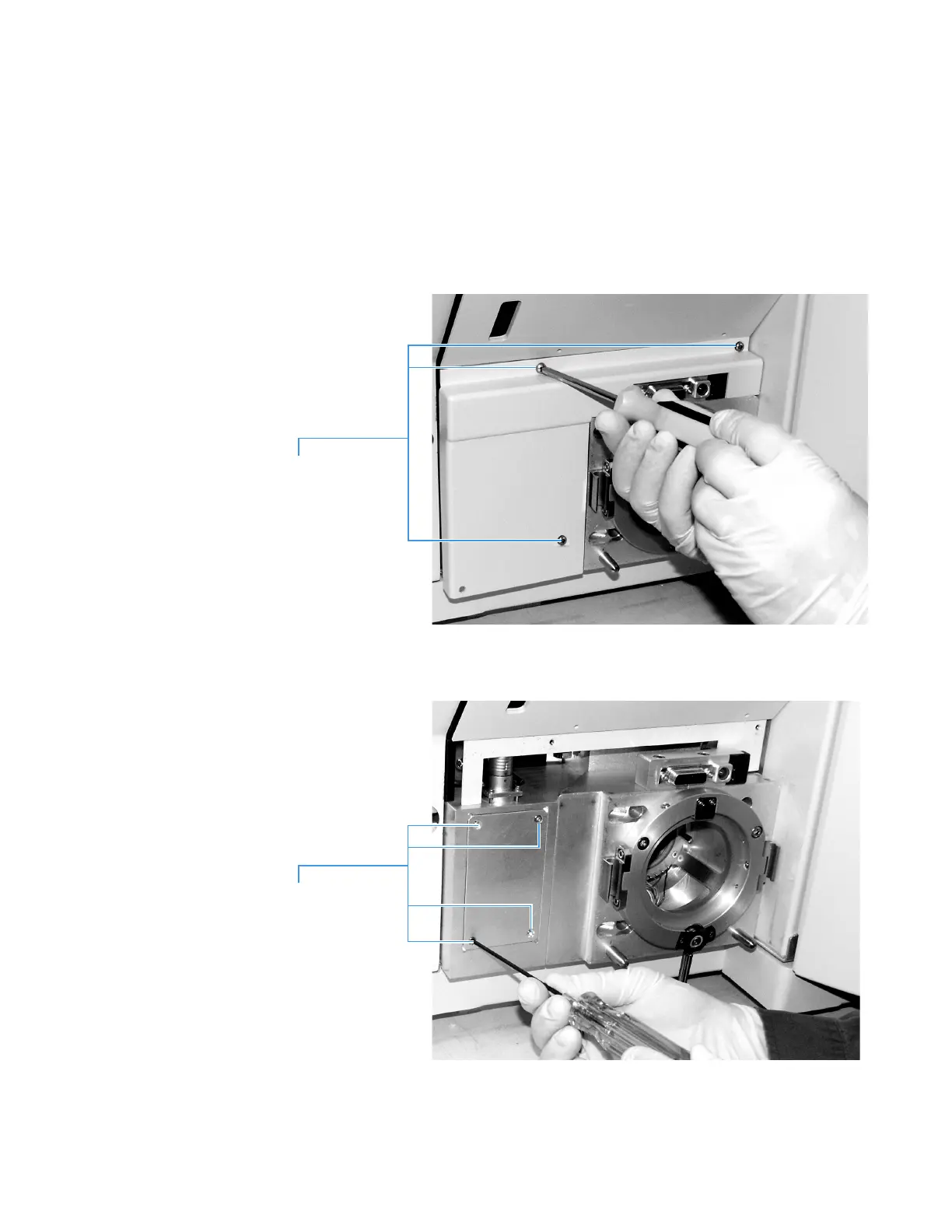

Figure 51. Removing the ion source interface cover screws
2. Using a hex ball driver, remove the roughing pump adapter access plate. See Figure 52.
Figure 52. Removing the roughing pump adapter access plate screws
Ion source interface
cover screws
Access plate
screws
