1. Unpack unit from the box and verify that all the parts match packing list.
2. Read instruction manual carefully! If assistance is required, contact Thermo.
3. If the unit is part of a larger system, use the vacuum tubing supplied to
hook up unit (See Figure 4).
4. If this SPD SpeedVac
®
is replacing an older single outlet vacuum tube
SpeedVac, please see Appendix 1 on how to propely plumb the new
SPD Concentraor.
5. If being hooked up to existing system, simply attach vacuum tubing to
port on side of unit. (See item 8, figure 2-vacuum port).
CAUTION - Cold trap should be in line between the vacuum source and
the SPD Unit.

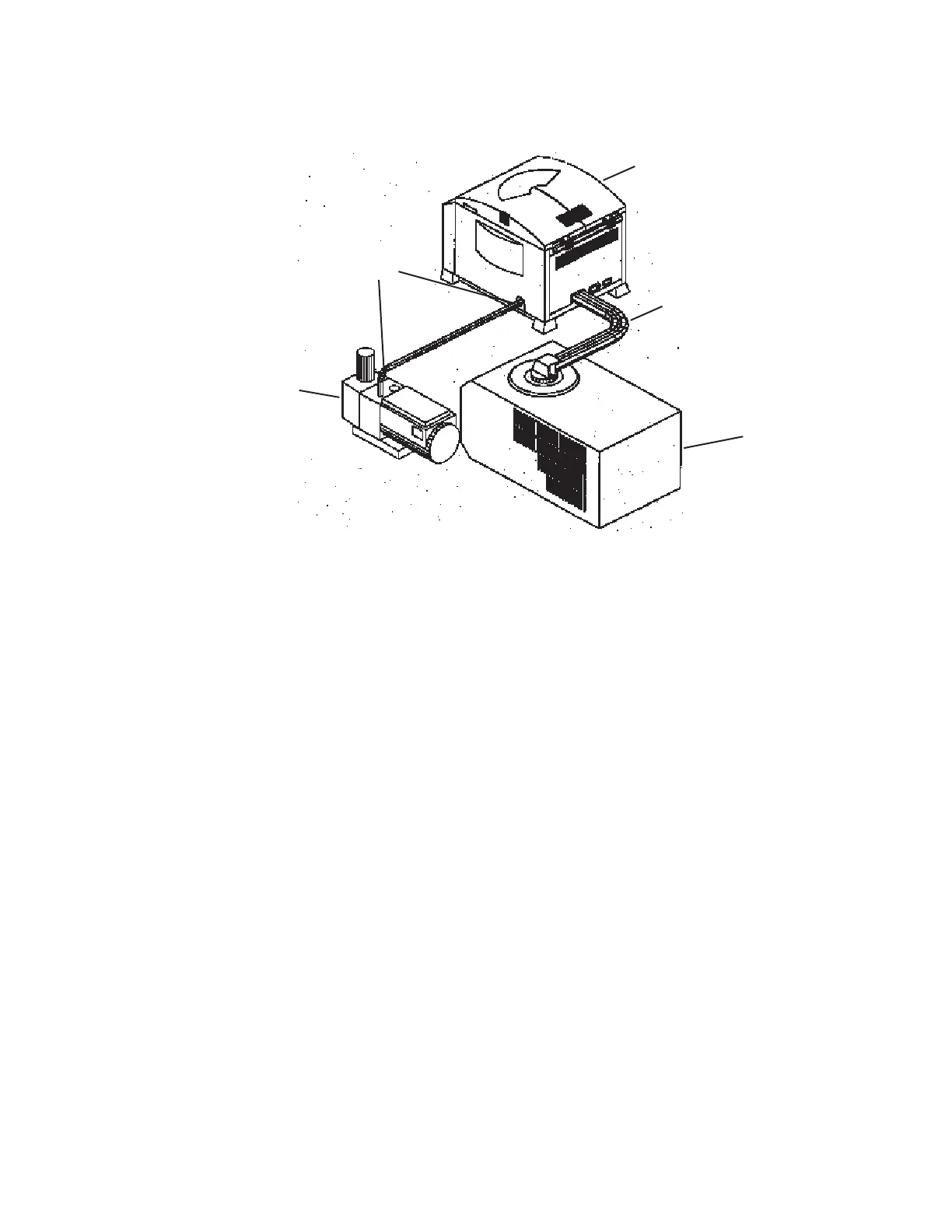

1.3 How To Hook Up The SPD121P SpeedVac
®
System
Thermo
RVT4104-
Refrigerated Vapor Trap
Thermo
VLP Vacuum Pump
SPD121P-
SpeedVac
®
Concentrator
1.2 INSTALLATION OF THE SPD121P
3
From Vacuum Chamber,
black markings*
Figure 4-Rear View of System
Clamps
To Next Page
