Thermon GENESIS User Manual

25
SPECIFICATION GUIDE
HMI HUMAN MACHINE INTERFACE
The HMI serves as the central monitoring and
interrogation point for a Genesis Controller system,
including its heat tracing control modules. Through
its touch screen monitor, the HMI allows the operator
to access operating control parameters and operating
conditions throughout the heat tracing system network.
The HMI communicates directly with the Genesis
Network and DCS systems through its Ethernet port.
HMI SPECIFICATIONS
Operating supply voltage .........................................................24 Vdc
Max Power consumption ....................................................30 Watts
Clock speed .......................................................................................1.5 GHZ
Processor ............................................................32 Bit Arm Cortex A15
IP Rating ............................................................................... Type 4X, IP66
Brightness ................................................................................. 1000 cd/m
2
Input/Output ports ......................................................Ethernet/USB
Maximum storage temperature .............................. 85°C (185°F)
Minimum storage temperature ............................ -40°C (-40°F)
Operating ambient temperature range ........................................
-40°C (-40°F) to 70°C (158°F)
Weight .................................................................................. 2.72 kg (6 lbs.)

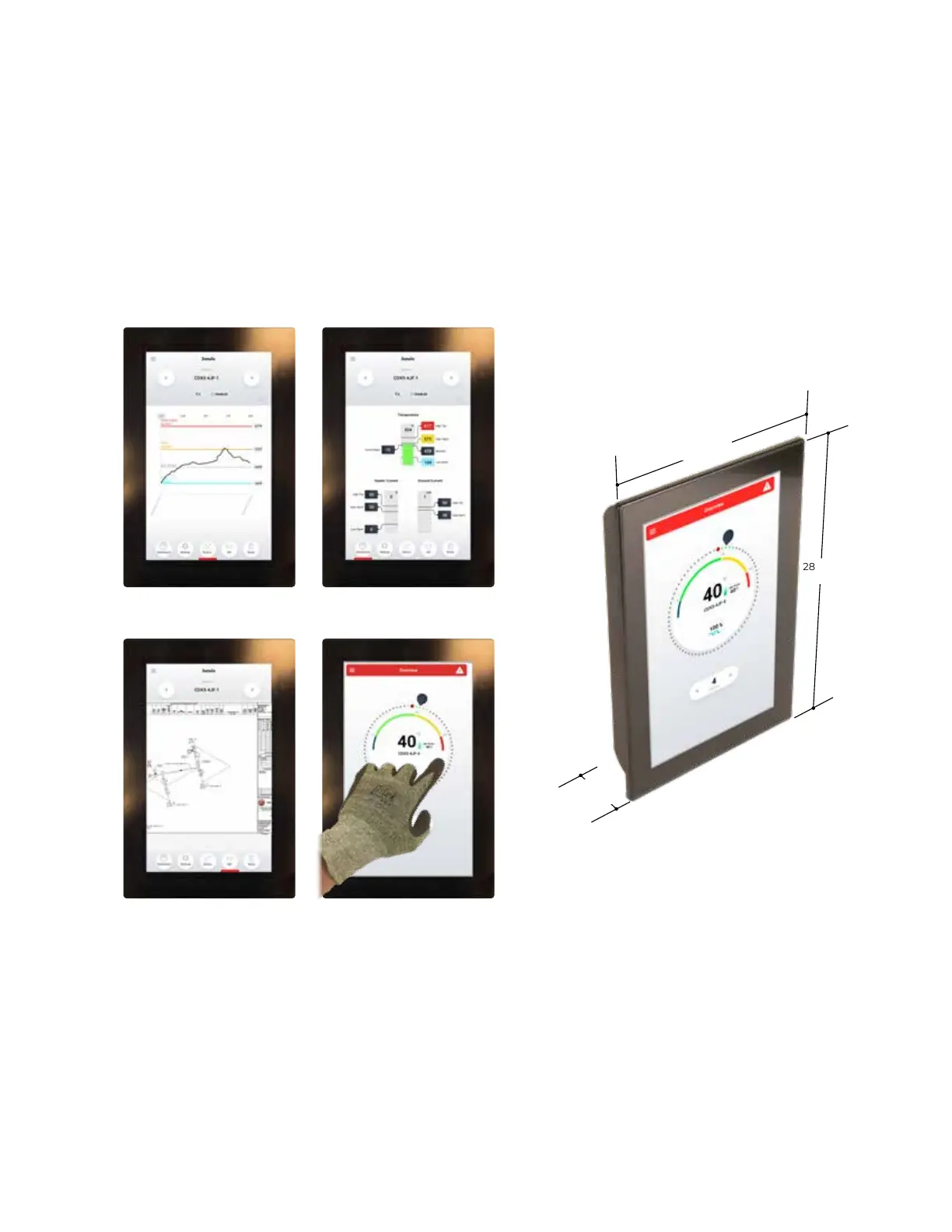

HMI DIMENSIONAL DATA
HMI PRODUCT FEATURES
• Genesis Controller HMI Is IP66
• Module operates in a wide range of ambient
conditions
• Multi-language capability
• Color display utilizes LED backlighting to maximize
service life and is additionally programmable for
“sleep mode” operation
• Utilizes projected capacitive touch screen for user
input functions
• Intuitive user friendly graphical interface
• Type 4X, IP66 panel mount enclosure which may be
installed on panel with access door or inside on panel
swingout
• Optically bonded display for bright sunlight visibility
281 mm
(11")
188 mm
(7-1/2")
581 mm
(2-1/4")
Circuit History for Trending
Circuit Isometric Drawing
Circuit Dashboard
"Glove Touch" User Interface
3THERMON.COM
