Thermon GENESIS User Manual

26
DCM FEATURES
• Operates in a wide range of ambient conditions
• Single or dual pole solid state switching
• Nickel plated terminal construction
•
Black anodized aluminum heat sink capable of
dissipating the heat generated for up to a total of 180
Amps continuous
• Includes a ground/earth leakage circuit test loop
which allows the operator to conduct a functionality
test on each circuit
• The DCM module has the following control modes:
1. On-Off
2. On-Off with Soft-Start (solid state relays only)
3. Proportional (solid state relays only)
4. Ambient Proportional (solid state relays only)
5. Ambient Proportional - Mechanical
• Activates test functions including:
1. Ground/Earth Leakage Fault Circuit Test
2. Loss of Heater Current Test
• Activates programmed control function based on the
temperature values provided by up to 20 RTD's per
circuit
• Monitors ground/earth leakage and heater operating
current in heat tracing circuits
DCM COMPONENT SPECIFICATIONS
Circuit control capacity ............... up to six heat trace circuits
Storage ambient temp. range ....-40°C (-40°F) to 105
o
C (221
o
F)
Operating ambient temp. range .........................................................
-40°C (-40°F) to 100°C (212°F)
Power terminal connectiones
1
..............................................................
0.5 to 10 mm
2
(20 to 6 AWG), 630 Vac
Printed circuit board ...........................................conformal coated
Heat sink ...............................................................................Type 4X, IP66
Weight ................................................................................ 8 kg (17.63 lbs.)
1. DIN-rail mounted terminal blocks for line voltage to be off PC board.
DCM DISTRIBUTED CONTROL MODULE
The DCM serves as the power switching module, using
solid state relays for a network of heat tracing control
modules.

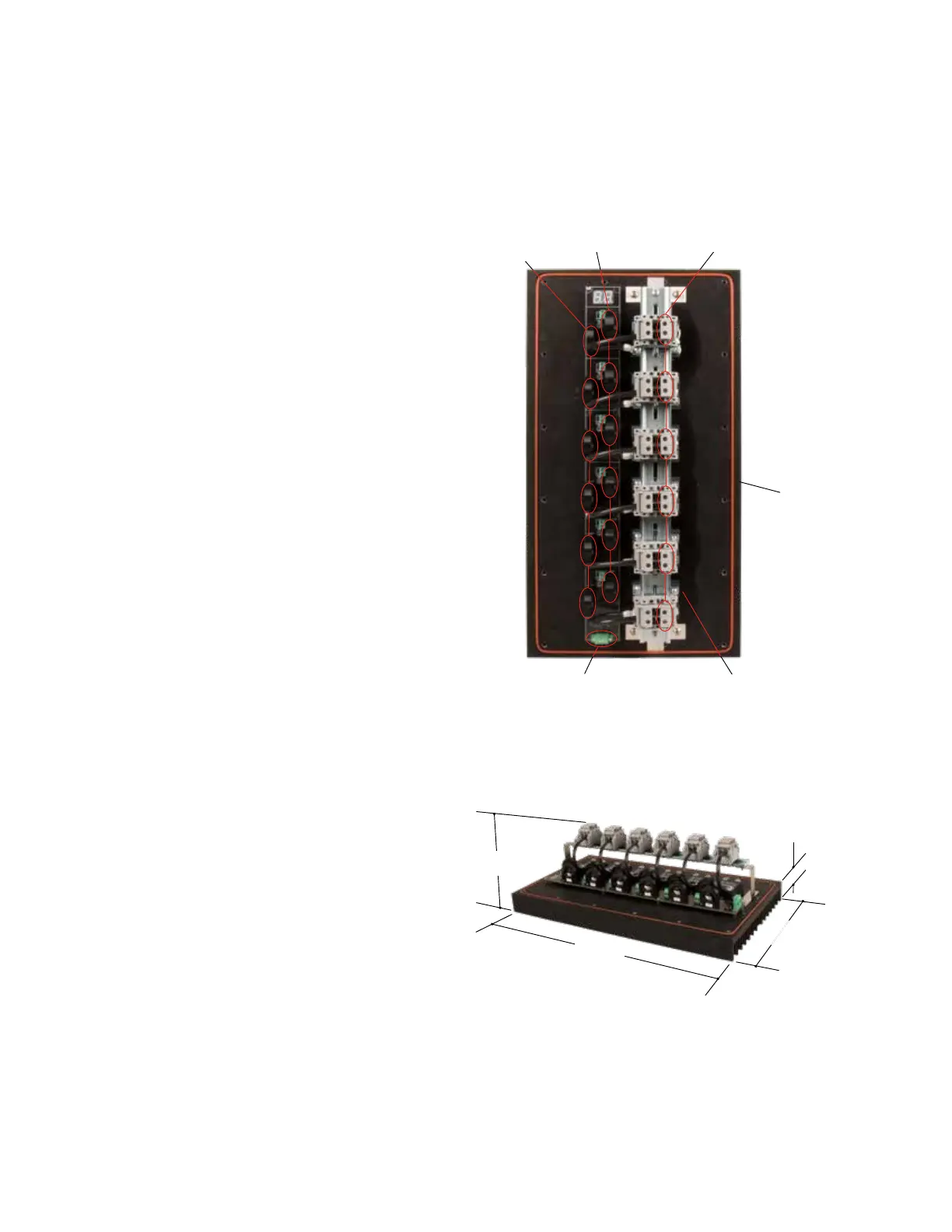

DCM DIMENSIONAL DATA
DCM CONNECTION DIAGRAM
Ground/Earth
Leakage Current
Transformer
Operating Heater
Current Transformer
Power and Communication
Buses
Solid State Relays (Under
Terminal Block)
Output AC Voltage
to Heater
Heat
Sink
41 mm
(1-5/8")
483 mm
(19")
152 mm
(6")
267 mm
(10-1/2")
GENESIS CONTROLLER
CONTROL AND MONITORING SYSTEM
4 THERMON.COM
