Thermoplan TIGER User Manual

19

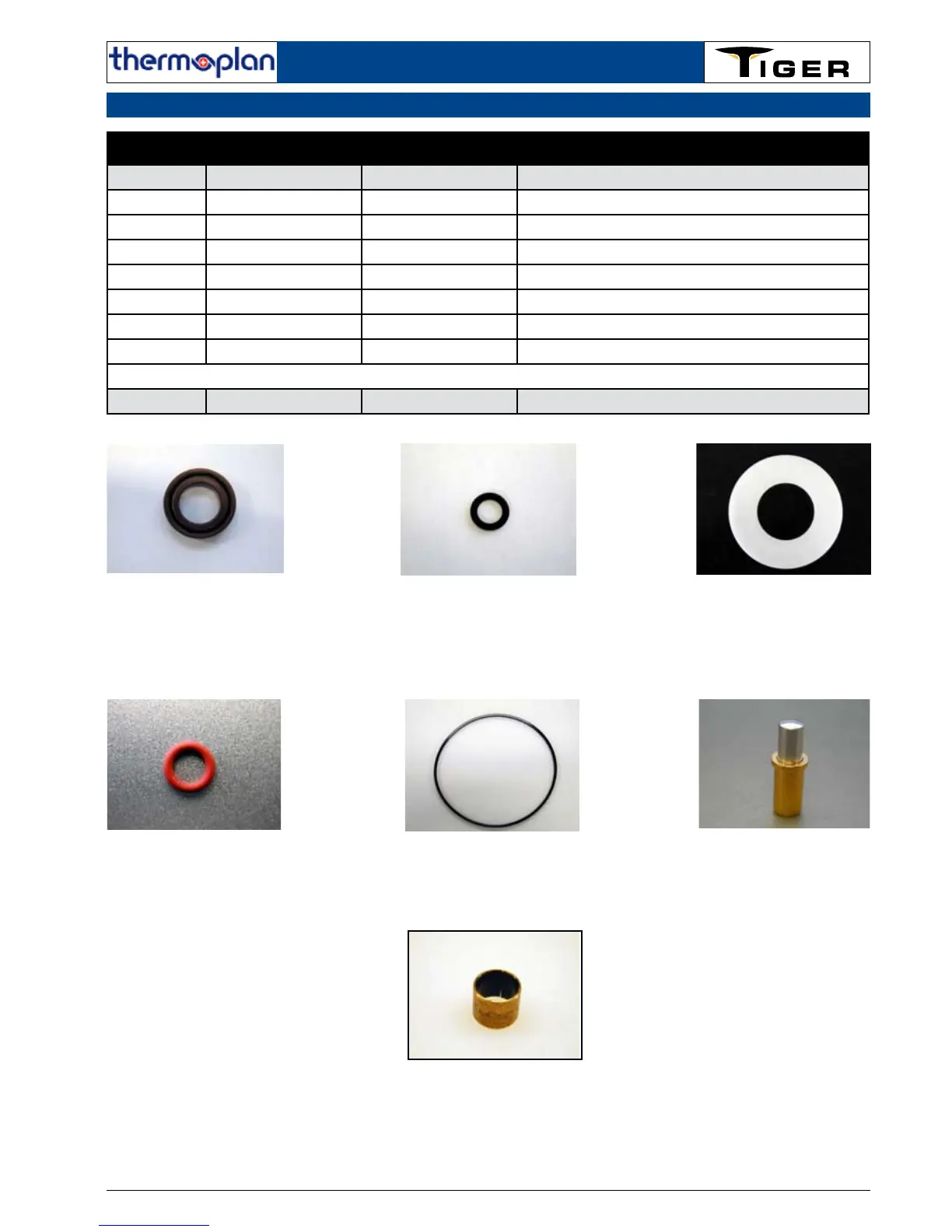

Service Kit Tiger CT/CTM/CTS 30k
70.07.01 Service Kit Tiger CTM 30k
Menge Artikelnummer alt Artikelnummer neu Beschreibung
1 10.09.10 104.793 O-Ring ø5x1.5
1 71.20.0137 101.406 Dichtung Thermoblock
1 71.20.0279 108.106 Wellendichtung ø12x19x5
1 71.20.04 104.795 O-Ring ø6.07x1.78
1 71.41.71 104.947 Permaglide Buchse P11 PAP 1212
2 71.37.27 102.325 Gefederter Kontaktstift
2 71.46.04 104.598 Mühlenscheibe
1 70.07.00 106.448 PM Kit Tiger CTM 30‘000
10.09.10 / 104.793
O-ring ø5x1.5
71.20.0137 / 101.406
Sealing Thermoblock
71.20.04 / 104.795
O-ring ø6.07x1.78
71.46.04 / 104.598
Disc for mill ø54
71.20.0279 / 108.106
Shaft sealing ring
ø12x19x5
71.37.27 / 102.325
Contact pin spring-loaded
71.41.71 / 104.947
Guide sleeve P11 PAP 1212
Technical Manual
© 2006 by Thermoplan, Subject to change
Tiger REV-7
