1.3 Components & Controls
The THINKCAR ADAS calibration tool mainly includes the following items and components:

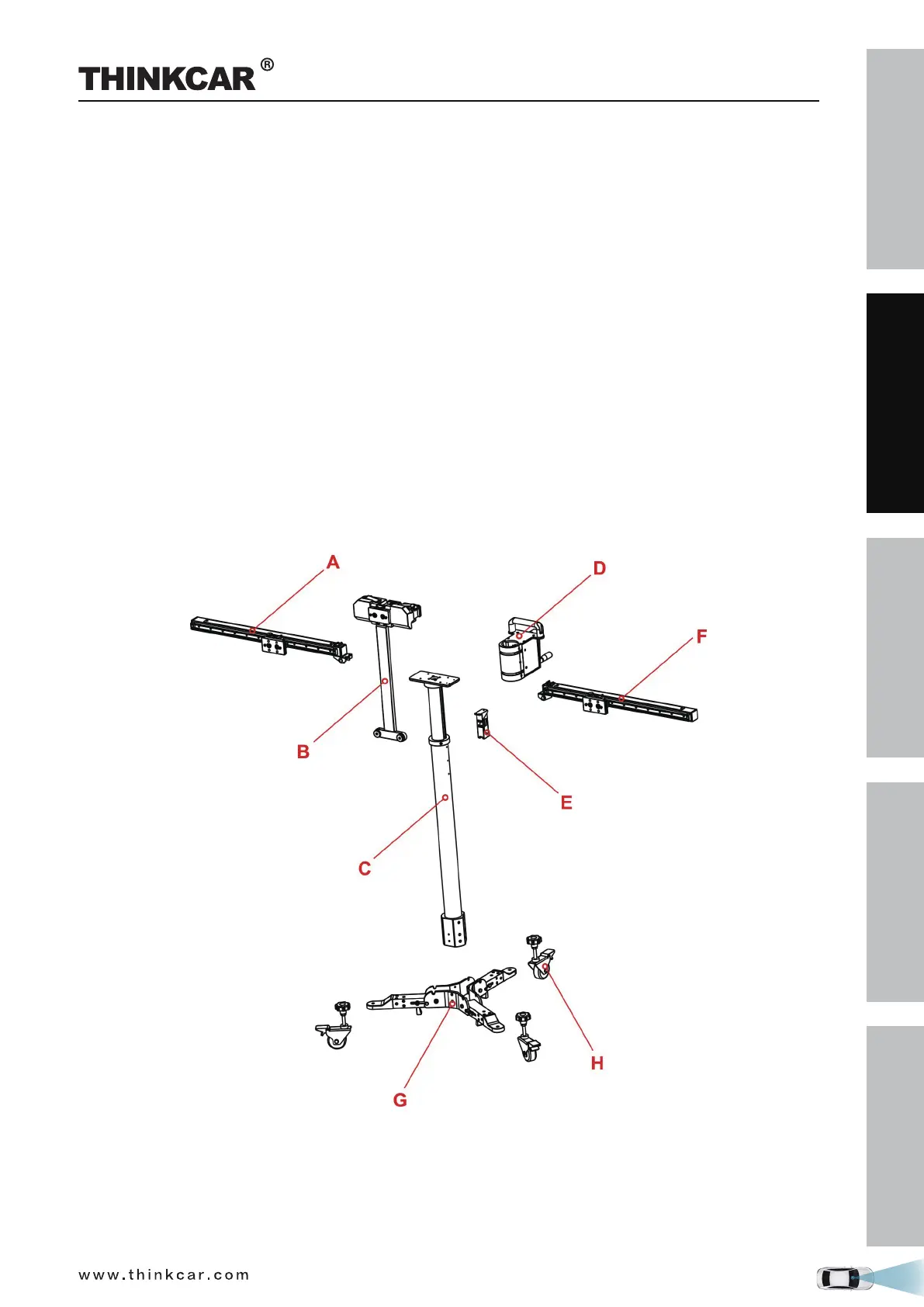

1.3.1 Calibration frame
The calibration frame consists of the following components:
A - Right crossbar
Loaded with a scale ruler, a positioning plate for securing the target boards.
B - Positioning bracket for pattern boards
Loaded with a level gauge, two safety snap hooks for locking the crossbars and a fix-holder for cross
laser module.
C - Lifter
D - Gear box and hand crank
For adjusting the height of the lifter.
E - Laser range finder
F - Left crossbar (same as Right crossbar)
G - Base holder
H - Universal rolling casters
