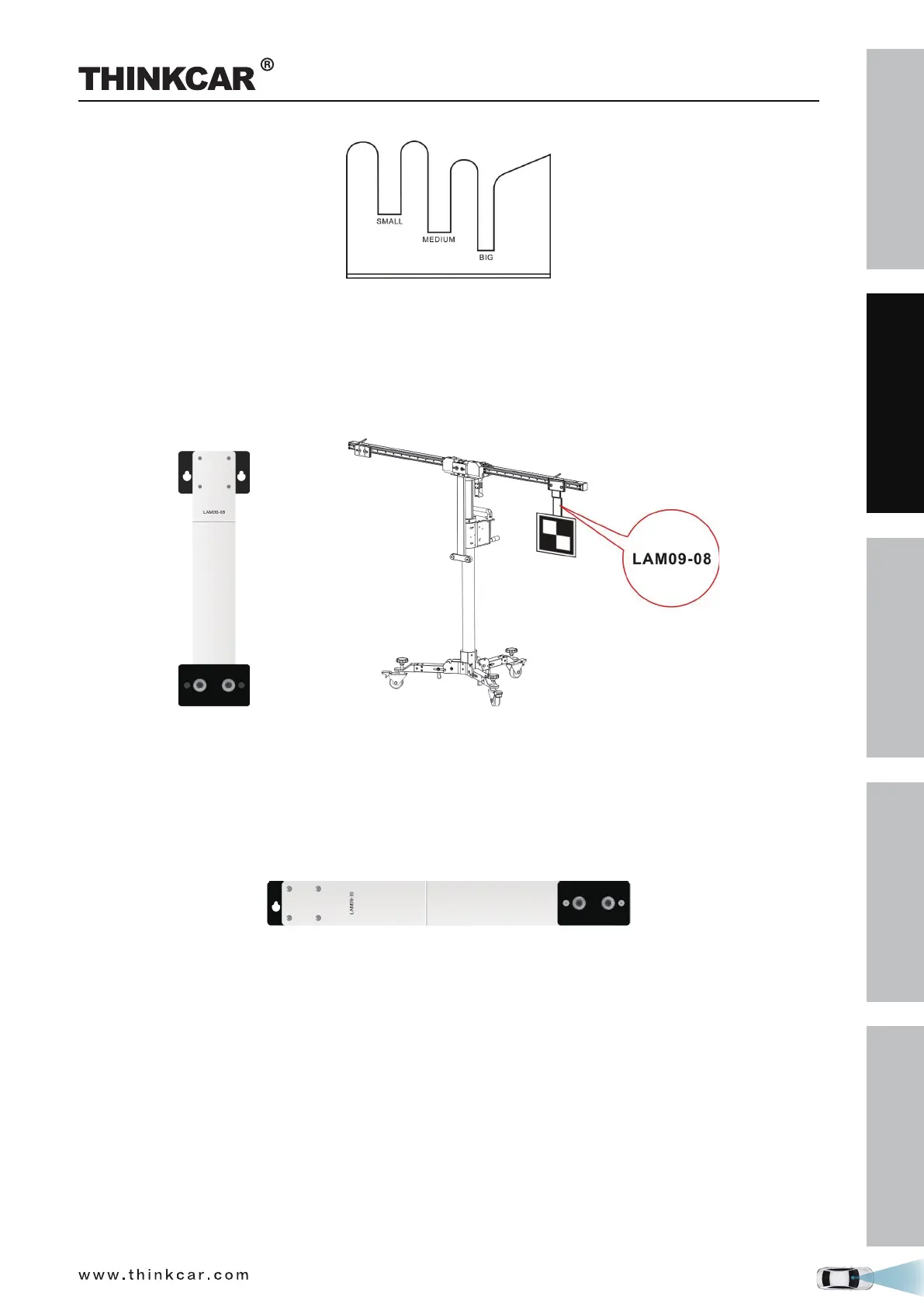

1.3.9 Target extension rod for Toyota (LAM09-08)
Generally the height of the calibration frame is specially designed to meet the calibration requirement of
most vehicles, but for some vehicles with lower calibration height, the target extension rod is required.
The target extension rod is used for LDW system calibration on some Toyota vehicles. It needs to be
secured onto the positioning plate (7) and then the target board attaches onto it.
1.3.10 Target extension rod for Honda (LAM09-09)
Generally the width of the calibration frame is specially designed to meet the calibration requirement of
most vehicles, but for some vehicles with wider calibration distance, the target extension rod is required.
The target extension rod is used for LDW system calibration on some Honda vehicles. It needs to be se-
cured onto the positioning plate (7) and then the target board attaches onto it.
