2.3.2.6 Set the height

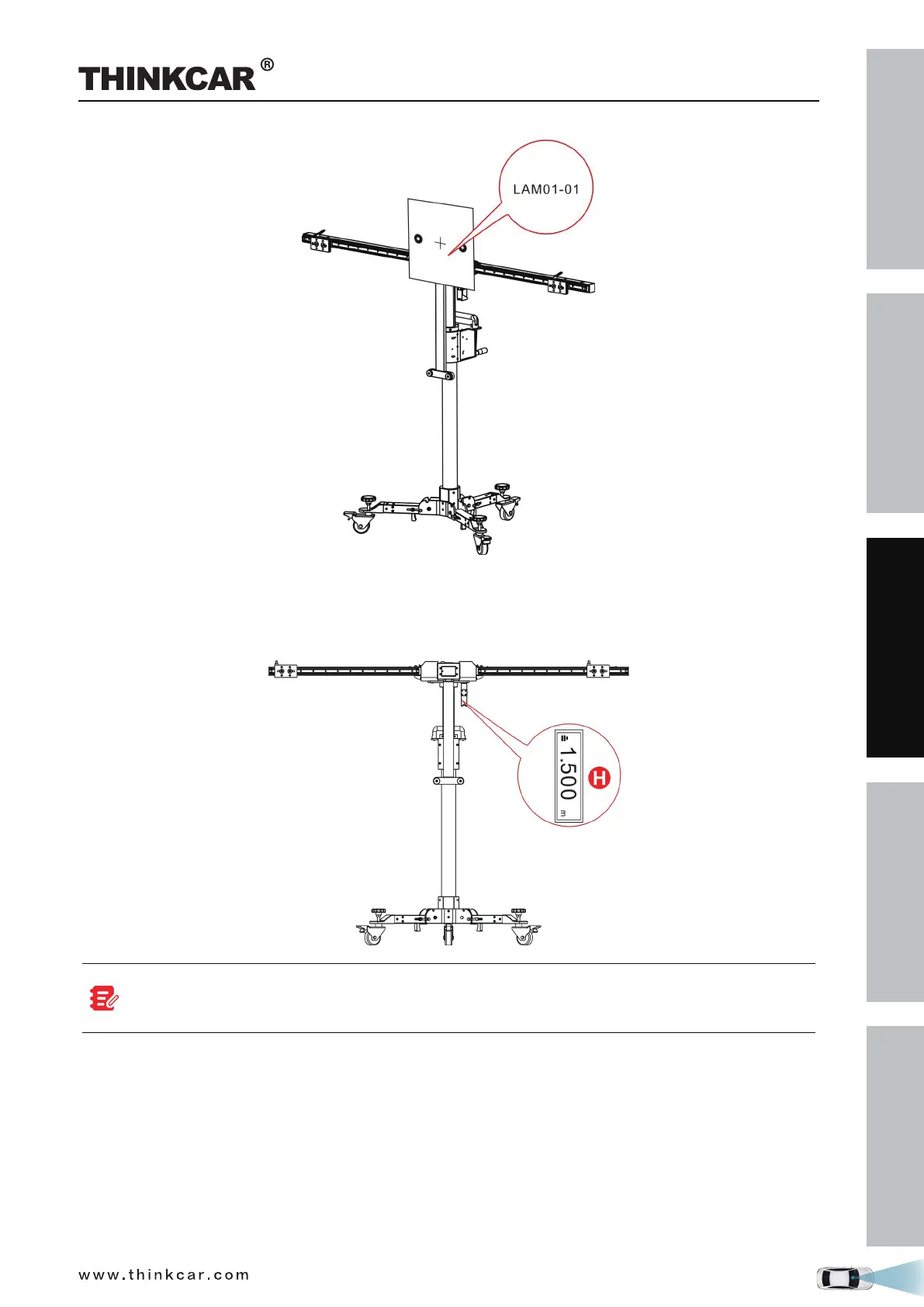

Use the hand crank (18) to adjust the height until the value displayed on the laser range finder matches the
value specified in the on-screen instructions.
Since the laser range finder is not on the same level as the target board/pattern board, a precise
tolerance value is adjusted for the calibration height of each vehicle on the diagnostic tool and no
more settings and calculations are required by users.
