15

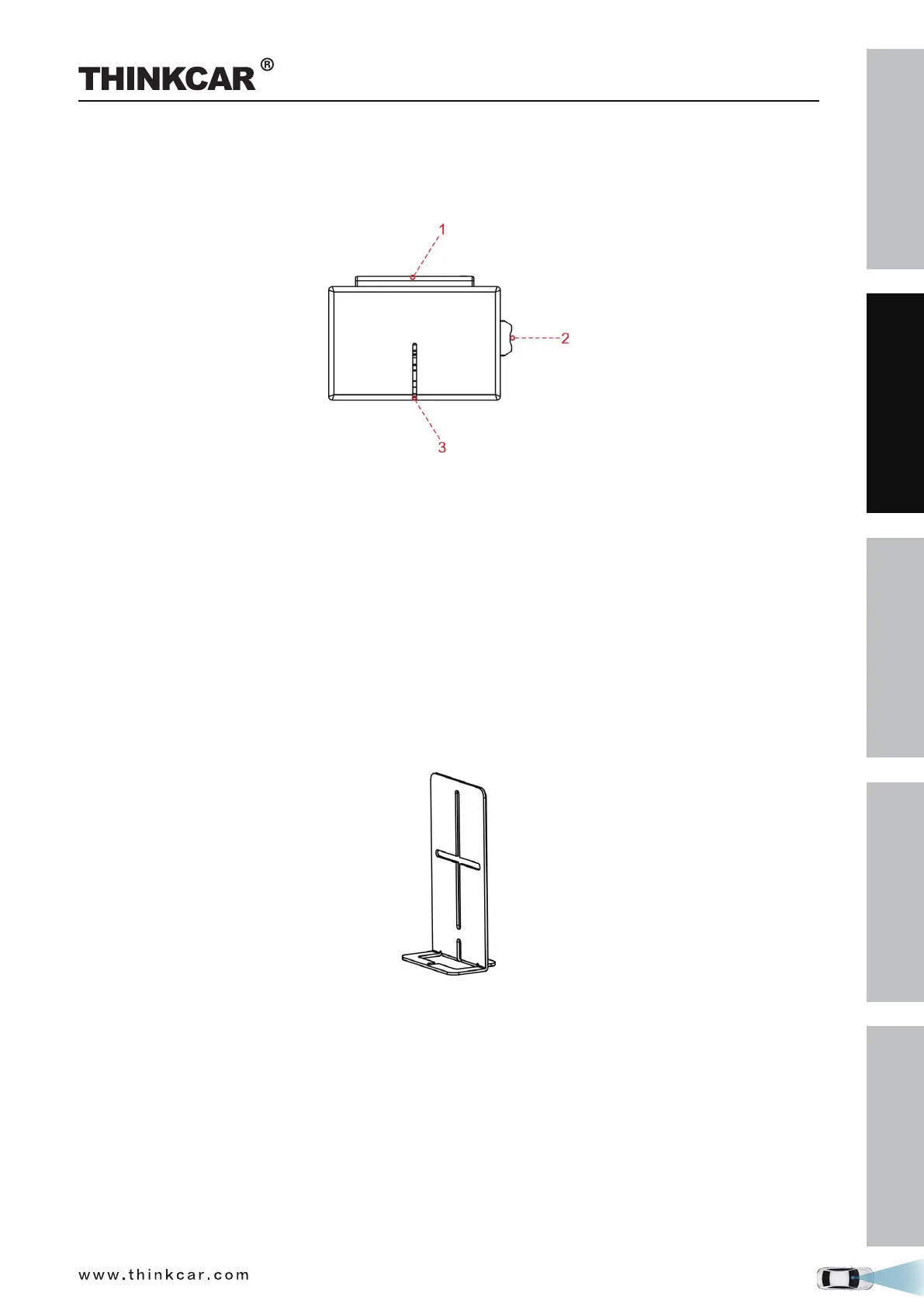

1.3.3 Cross laser module (LAM09-02)
While adjusting the calibration frame in parallel with the vehicle, the laser module can be used.
Generally it should be attracted onto the magnetic laser fix-plate (8) of the calibration frame.
1. Battery cover
2. Switch
3. Laser gap
Installation of the 2 AAA Batteries
1. Open battery cover.
2. Insert 2 new AAA batteries of the same brand, according to the polarity diagram indicated on the inside
of the battery compartment.
3. Reclose the battery cover.
1.3.4 Laser reflector (LAM09-03)
The laser reflector is used to position the center line by confirming front and rear center points of the
vehicle are on the same line.
