18. Hand crank
For adjusting the height of the lifter.
19. Handle

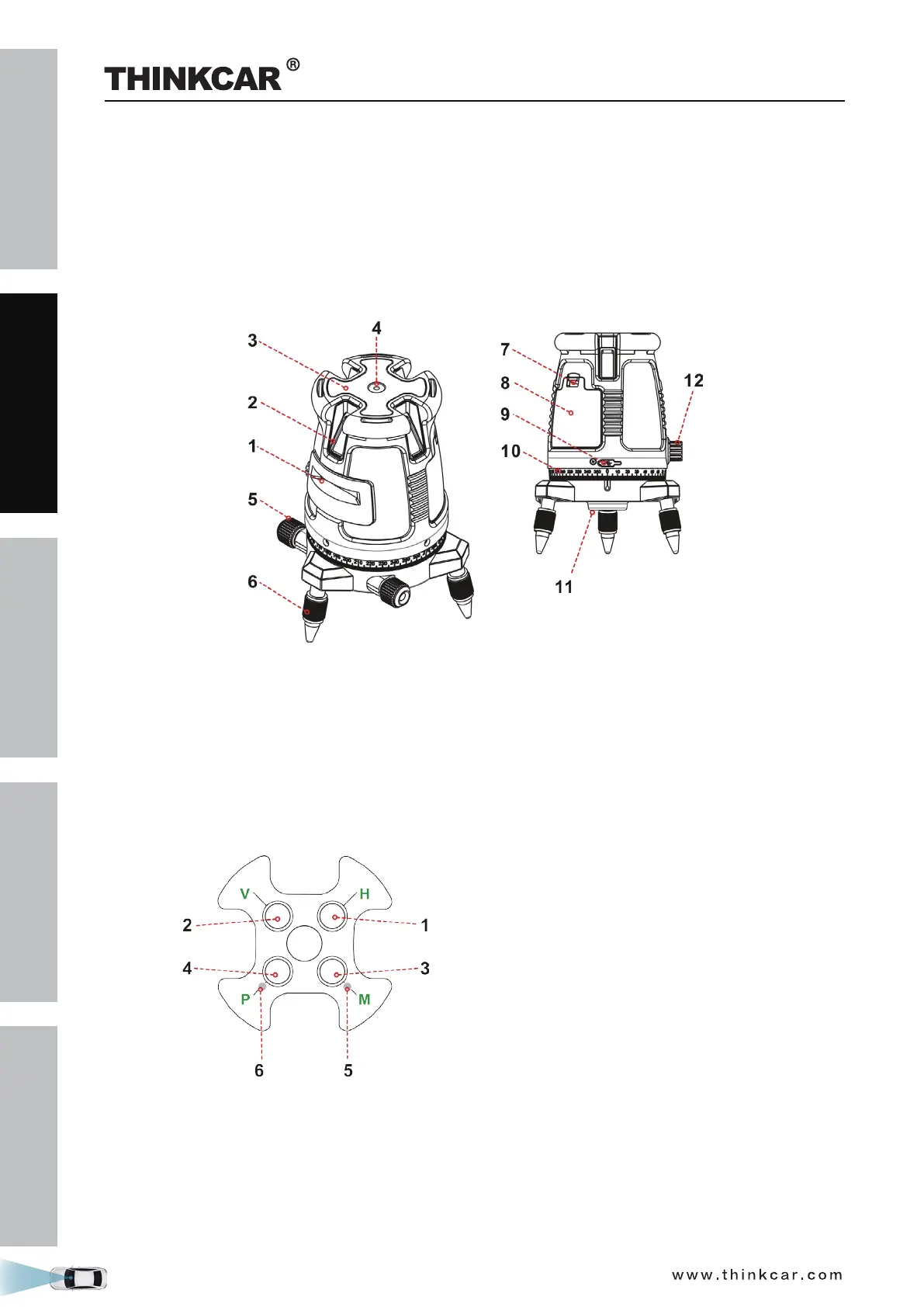

1.3.2 Five-line laser device (LAM09-01)
The five-line laser device is used for aiming laser beams in five directions to position the calibration frame
and vehicle.
1. Horizontal laser output window
2. Vertical laser output window
3. Keypad*
4. Surface level
5. Fine adjustment knob
6. Adjustable support legs
7. Battery cover
8. Battery compartment
9. Charging port
10. Graduated scale
11. 5/8” Tripod threaded adaptor
12. Pendulum safety lock
*Keypad
1. Horizontal line button
2. Vertical lines button
3. Manual mode button
4. Pulse mode button
5. Manual mode red LED indicator
6. Pulse mode green LED indicator
This tool can be operated either by designated lithium-ion battery pack, or 4 AA alkaline batteries.
THINKCAR ADAS Calibration Tool
To Next Page
