3.2.2 Operation Notes
Make sure the following conditions are met:

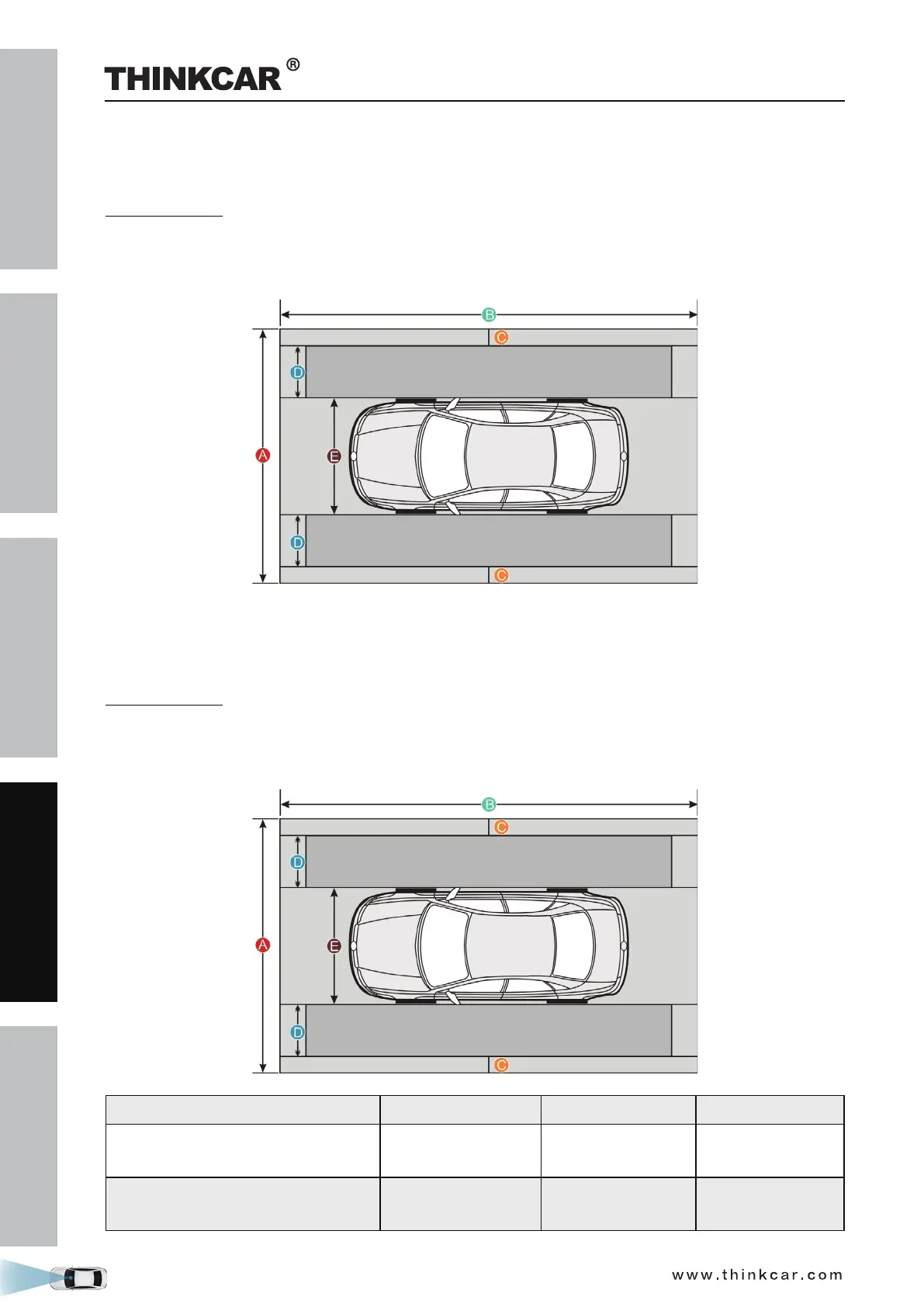

WorkStation Size
For calibrating the rear & AVM camera, the whole workstation size depends on the vehicle size and
the calibration reference pattern. The following illustration describes the maximum workstation size for
reference only.
3.2.2 Operation Notes
Make sure the following conditions are met:
WorkStation Size
For calibrating the rear & AVM camera, the whole workstation size depends on the vehicle size and
the calibration reference pattern. The following illustration describes the maximum workstation size for
reference only.
American vehicles European vehicles Asian vehicles
Distance A
(the width of the whole workstation)
about 7.3m
(287.4inch)
about 4.5m
(117.2inch)
about 6.1m
(240inch)
Distance B
(the width of the whole workstation)
about 12m (472inch)
about 7m
(275.6inch)
about 9.5m
(374inch)
