47
Distance C
(a lane for technician to walk through)
at least 0.5m
(19.7inch)
at least 0.5m
(19.7inch)
at least 0.5m
(19.7inch)
Distance D
(the width of the calibration reference
pattern. It varies from vehicle to
vehicle)
about 1.7m (67inch)
about 0.8m
(31.5inch)
about 1.6m (63inch)
Distance E
(the width of the vehicle, varies from
vehicle to vehicle)
about 2.9m (114inch)
about 1.9m
(74.8inch)
about 1.9m
(74.8inch)
On vehicle & diagnostic tool
• Use the AUDI diagnostic software version 28.50 or above to perform the calibration.
• Make sure that there should be no direct light reflecting on the calibration pattern. Reflecting light affects
the image recognition of the camera and calibration failure becomes possible.
• Make sure that the VCI device has been plugged into the vehicle’s DLC.
• Turn on the ignition.
• The backup camera has been activated (Backup camera image can be seen).
• The vehicle is in good condition and no one is allowed to sit in the vehicle.
• Fuel tank is full.
• Maintain the standard wheel pressure.
On calibration tool

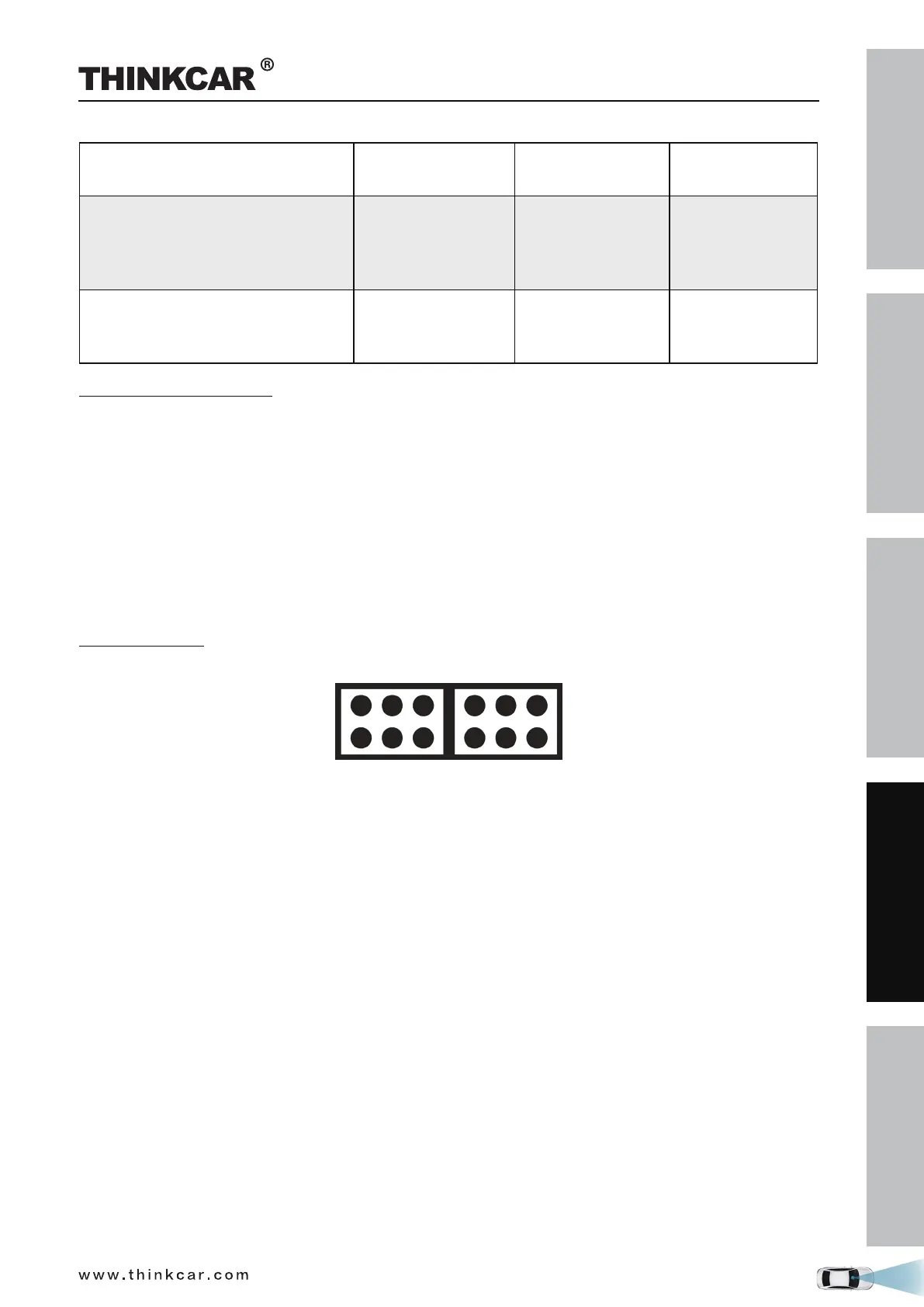

• Use the LAC02-03 calibration pattern.
LAC02-03
• Ruler or tape measure is necessary.
• Calibration tool setting: The calibration pattern is parallel to the axis of the rear wheel of the vehicle and is
centred. The distance from the edge of the LAC02-03 to the center of the rear wheel is 1500 ± 10 mm or
59.055 ± 0.394 inch. For Phaeton, it is 1700±10 mm or 66.929 ± 0.394 inch.
