• If the target board extension rod (e.g. LAM09-08 / LAM09-09) is required (in the condition that the
height or width of the THINKCAR ADAS cannot meet the specified value), first attach the extension
rod on the positioning plate, and then install the target board on the extension rod.

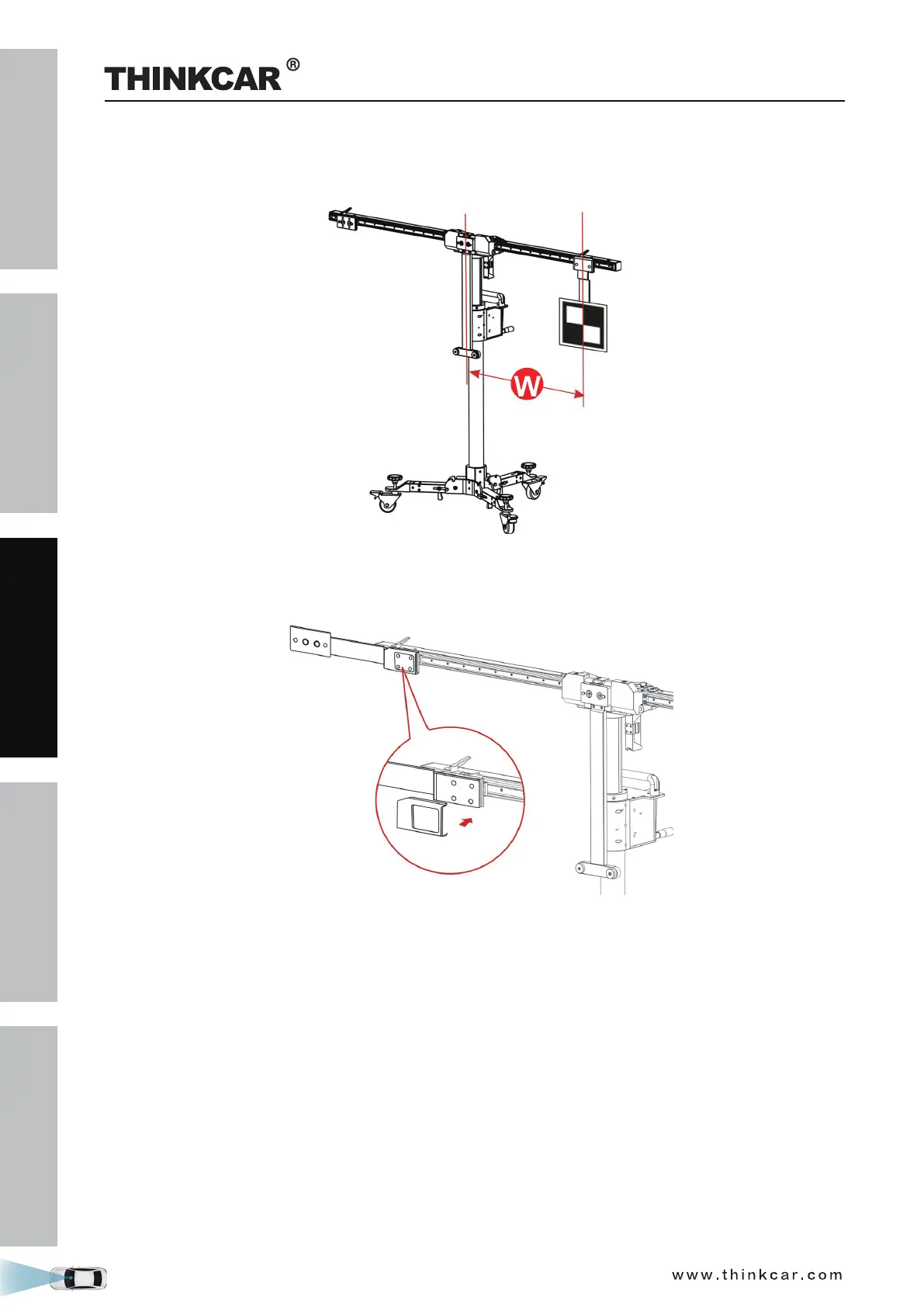

For LAM09-08 horizontal extension rod, you are recommended to use the included lock cover to lock
the extension rod to prevent it from being displaced due to the installed heavy target board. Hold it
and cover it on the extension rod (See the following figure).
• If the target board (e.g. LAM01-01) is installed on the center positioning plate, go to the next step.
