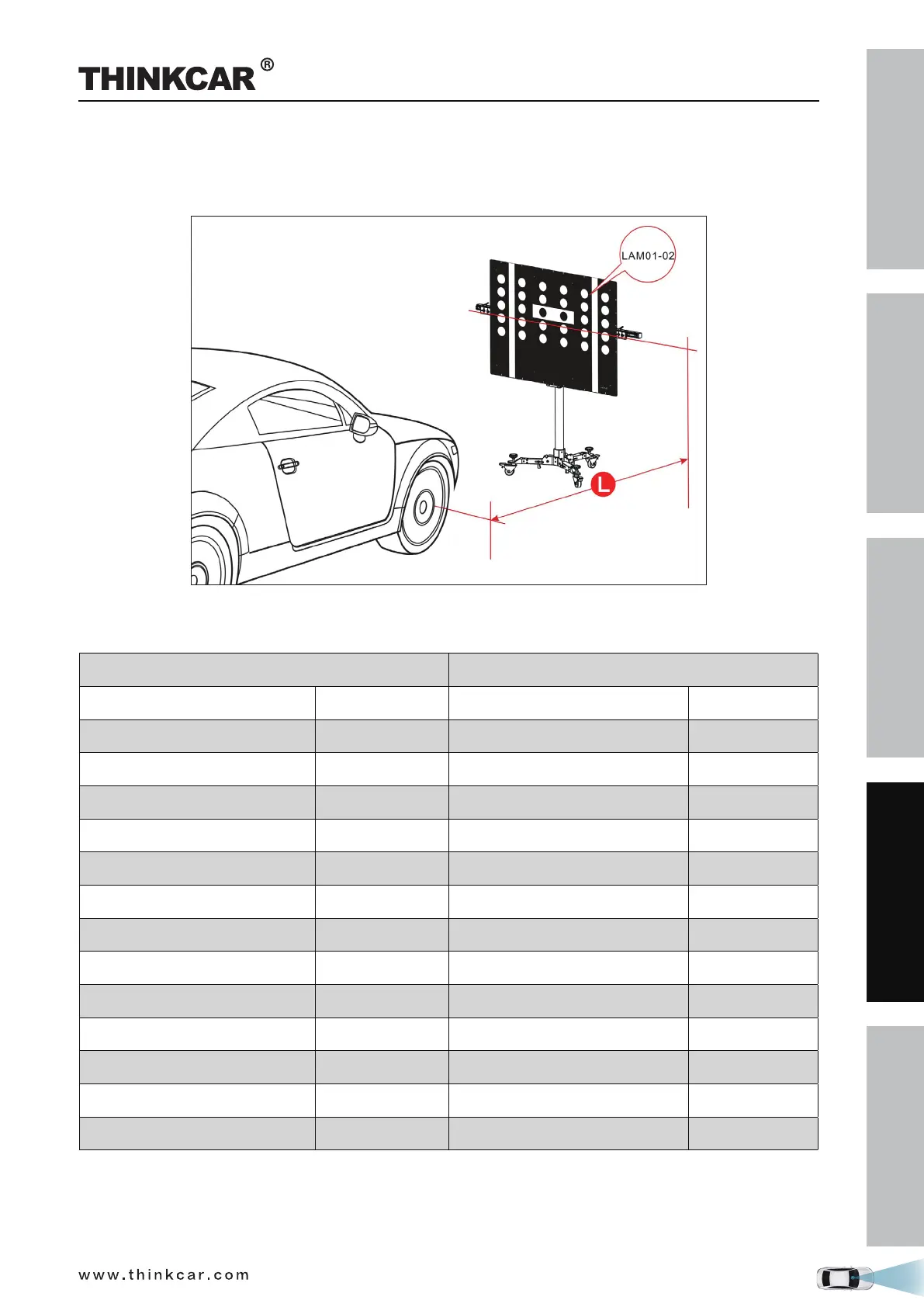

• ADAS calibration pattern is placed in parallel in front of the vehicle.
• ADAS calibration pattern is placed in the center of the front of the vehicle.
• The distance from calibration pattern to the center point of the front wheel hub is 1.5m (59inch).
The following table formulates the reference distance range for other Audi models when performing front
camera calibration.
1.5m (59inch) 1.7m (67inch)
AUDI A3 2013> 2013~2018 AUDI Q2 2017> 2017~2018
AUDI A3 USA /CANADA 2013> 2014~2018 AUDI Q3 2012> 2012~2018
AUDI A4 2016> 2016~2018 AUDI Q3 USA /CANADA 2012> 2014~2018
AUDI A4 USA /CANADA 2016> 2016~2018 AUDI Q5 2017> 2017~2018
AUDI A5 2017> 2017~2018 AUDI Q5 USA /CANADA 2017> 2017~2018
AUDI A6 2011> 2011~2018 AUDI Q7 2016> 2016~2018
AUDI A6 USA /CANADA 2011> 2011~2018 AUDI Q7 USA /CANADA 2016> 2015~2018
AUDI A7 2011> 2011~2018
AUDI A7 USA /CANADA 2011> 2011~2018
AUDI A8 2010> 2010~2018
AUDI A8 USA /CANADA 2010> 2010~2018
AUDI A5 USA /CANADA 2016> 2017~2018
AUDI TT 2015> 2015~2018
AUDI TT USA /CANADA 2015> 2015~2018
• Make sure the value displayed on the laser range finder screen is 1.13m or
44.5inch (the height from the
center of the calibration pattern to the ground).
