52

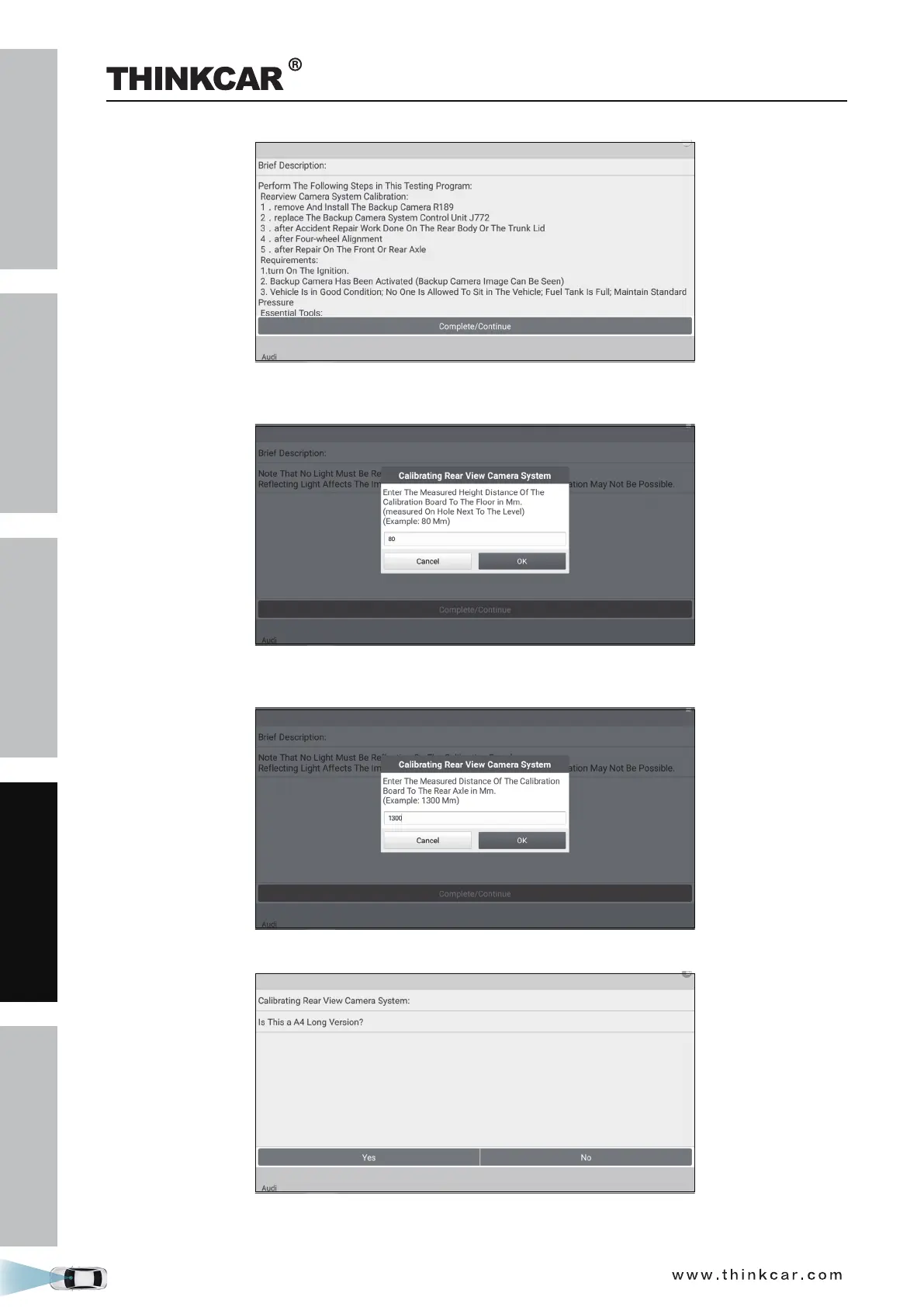

7. Input the measured height distance of the calibration pattern to the floor in millimeter (for example:
80mm), and tap OK to confirm.
8. Input the measured distance of the calibration pattern to the rear axle in millimeter (for example:
1300mm), and tap OK to confirm.
9. Double check whether it is a A4 long version or not. If yes, tap Yes.
10. Enter the measured ground clearance of the camera lens perpendicular to the ground in millimeter (for
