THK KRF - Speed and Load Capacity Characteristic Diagram

4-2
KRF
4. Specifications
4-2

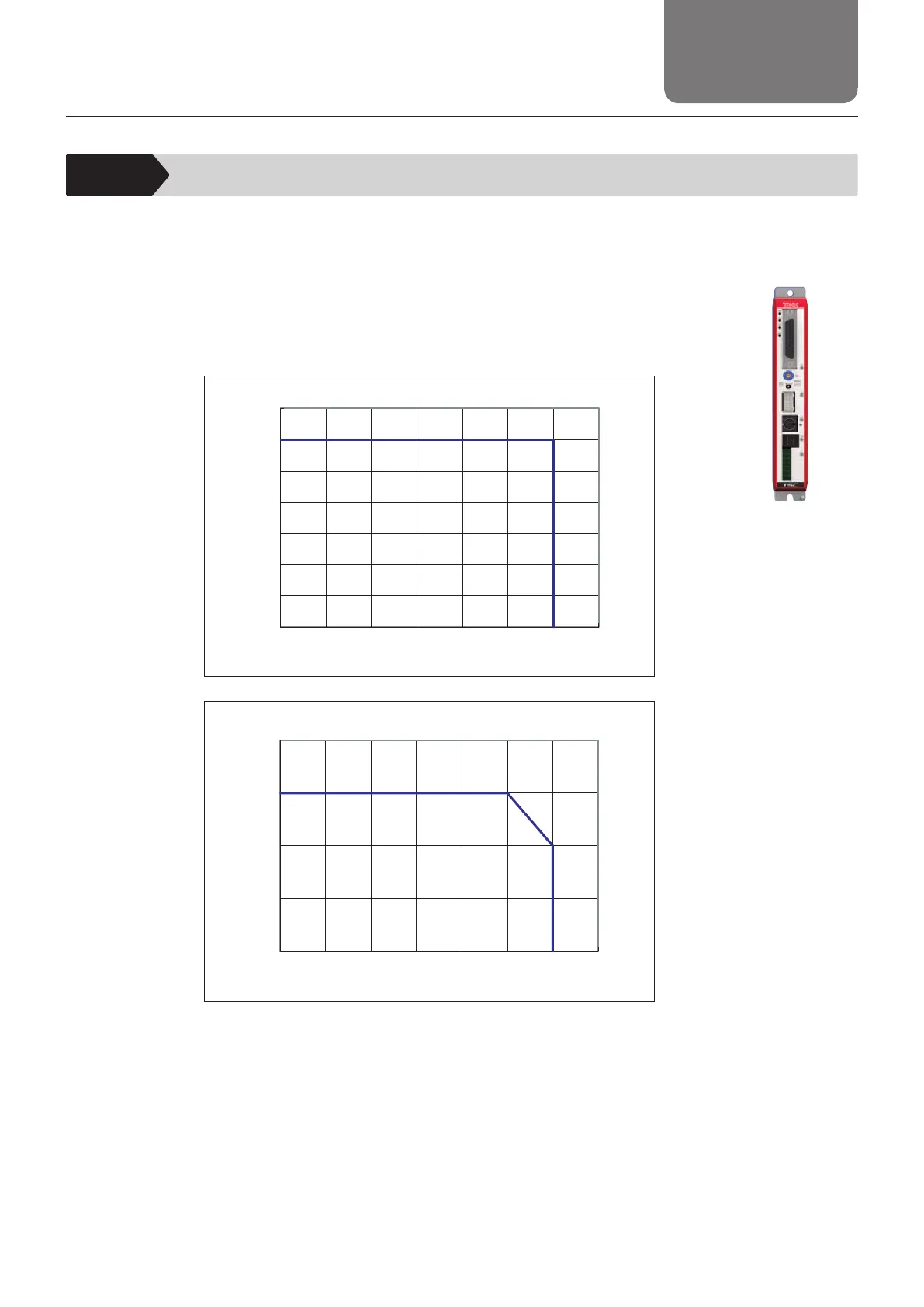

Speed and load capacity characteristic diagram
Load capacity and maximum speed vary with usage conditions.
Use the product within the range of following characteristic diagram.
KRF3 (28P)∙∙∙∙Stepper driver controller TSC
 Lead 6 mm
Horizontal/wall-mount
Speed [mm/s]
Load capacity [kg]
0
0.5
1
1.5
2
2.5
3
3.5
0 50 100 150 200 250 300 350
Vertical mount
Speed [mm/s]
Load capacity [kg]
0
0.5
1
1.5
2
0 50 100 150 200 250 300 350
4.
Specifications
