Method for supplying grease
[KRF3]

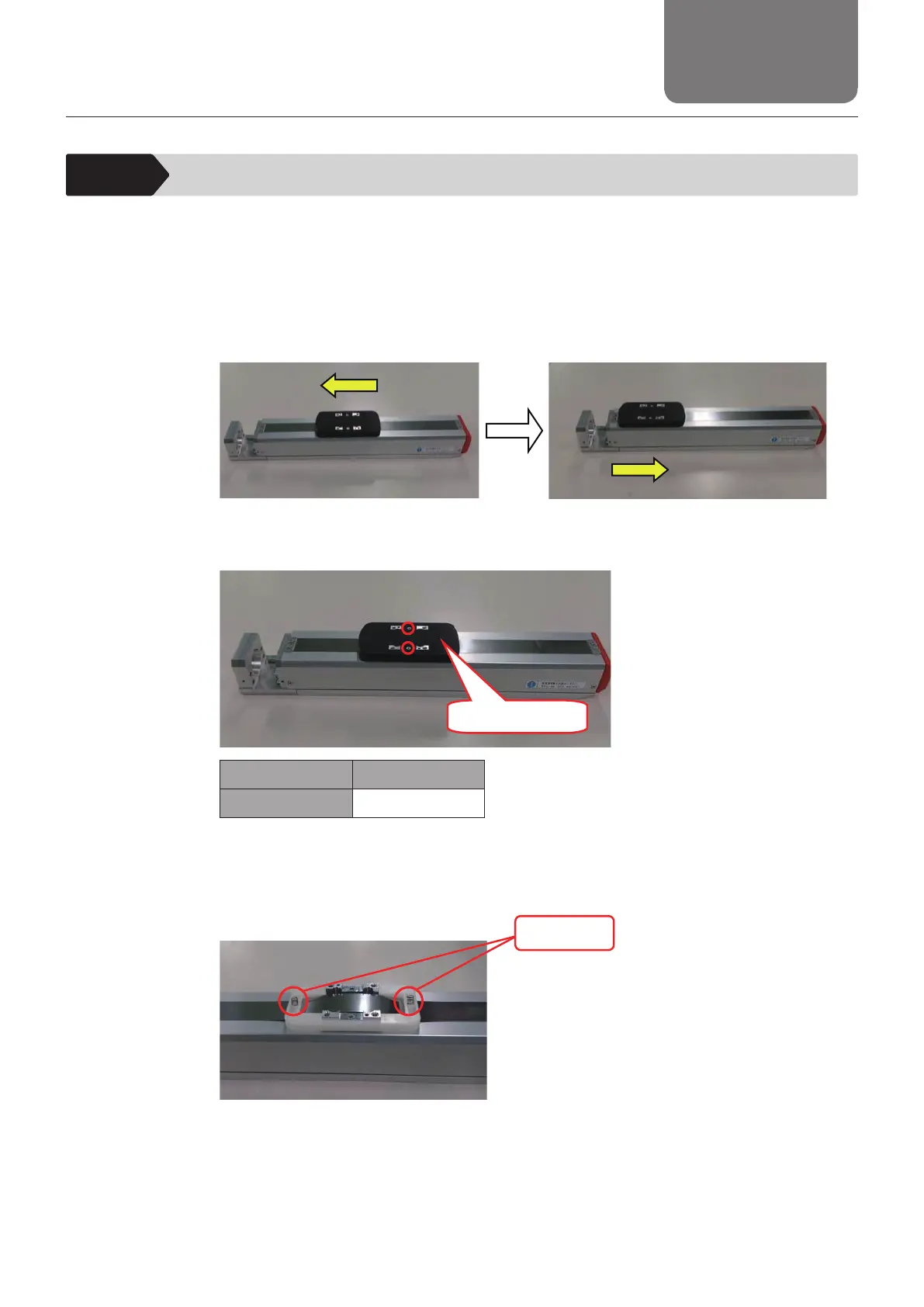

The following gure shows a KRF representative greasing method for your reference.
Procedure
1. Move the table to the motor mounting side, place it on the stopper, and then move it back by 50
mm to the reverse motor side.
Place it on the stopperMotor side
Move it back by
about 50 mm
2. Remove the table cover.
Table cover
Model number Bolt size
KRF3 M2.6 × 4L
Thin head FH type head screws
3. Remove the springs (2 pcs.).
Spring
* Be careful not to lose the springs.
