8. Maintenance

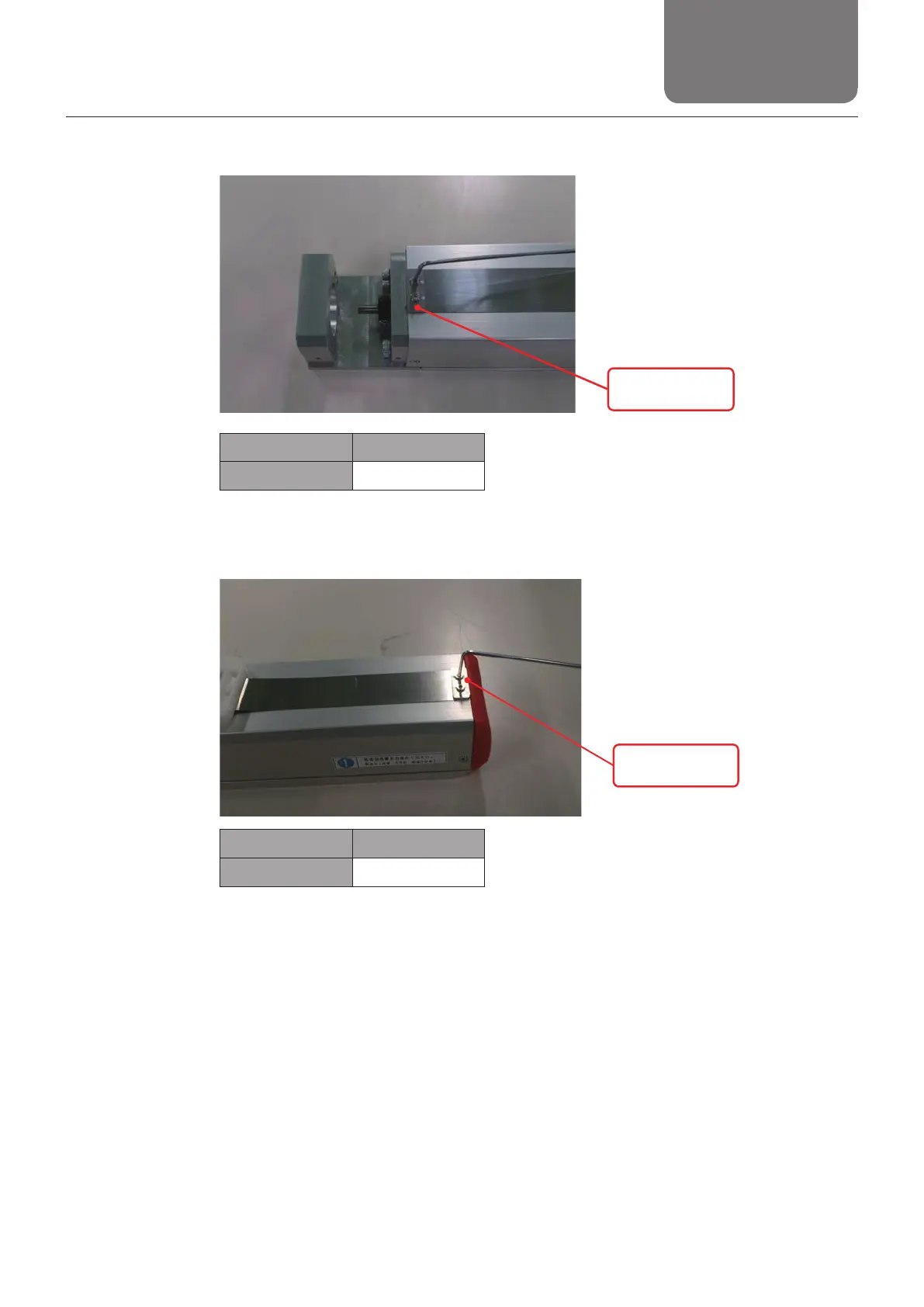

4. Remove the strip seal holder (on the motor side).
Strip seal holder
Model number Bolt size
KRF3 M2.6 × 4L
Thin head FH type head screws
5. Remove the strip seal holder (on the reverse motor side).
Strip seal holder
Model number Bolt size
KRF3 M2.6 × 4L
Thin head FH type head screws
