8. Maintenance

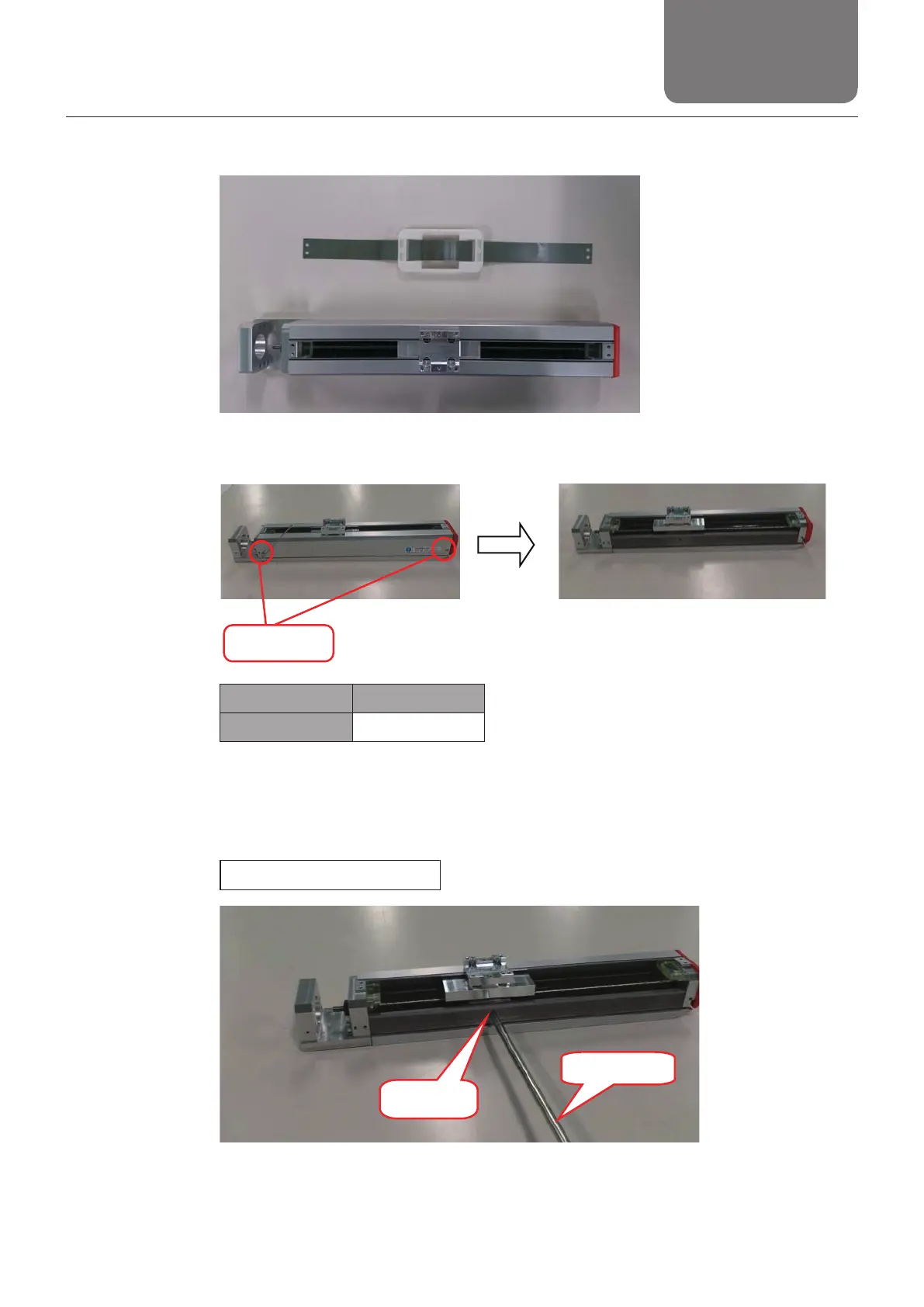

6. Remove the strip seal and the strip seal guide from the main unit.
7. Remove the side cover.
Mounting bolt
Model number Bolt size
KRF3 M2.6 × 4L
Thin head FH type head screws
* Remove them on the both side.
8. Supply grease using a grease gun as indicated in the gure below.
Lubrication of LM Guide
Grease inlet
Grease gun
