7-6
KRF
7.
Installation and Operation
7.
Installation and Operation
7.
Installation and Operation

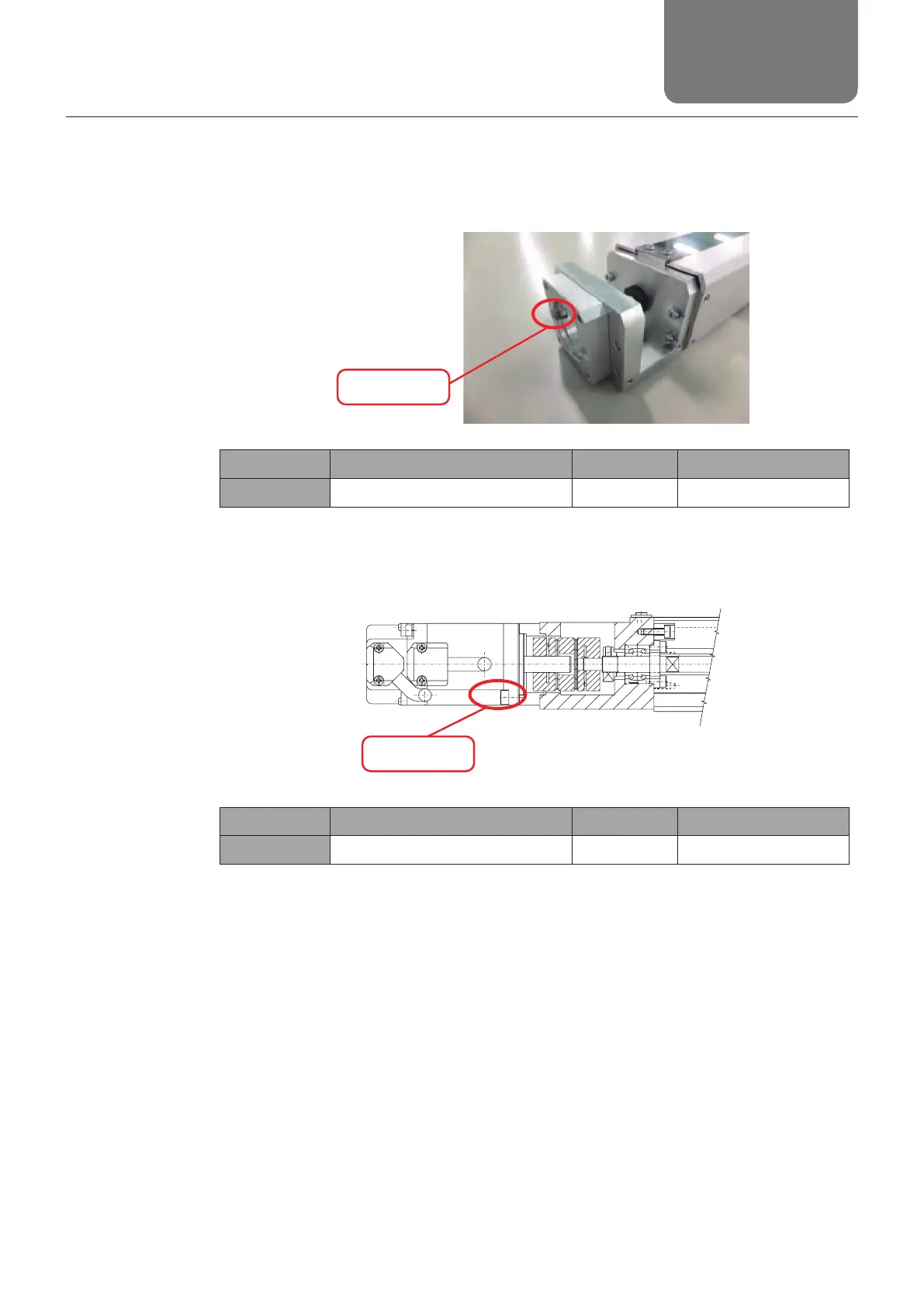

5. When mounting the motor after mounting the intermediate ange to housing A.
Mount the intermediate ange onto the housing A.
Intermediate ange types and the bolts used are shown in the following table.
Mounting bolt
Model number Intermediate ange type Bolt size Tightening torque [N·cm]
KRF6 P,Q,T,U M3 × 8L 125
Bolt type: Hexagonal-s
ocket-hea
d type bolt
And then, mount the motor and coupling assembled in procedure 2 onto the intermediate ange.
Mounting bolt
Model number Motor models Bolt size Tightening torque [N·cm]
KRF6 TS4603 (Tamagawa Seiki Co., Ltd.) M4 × 10L 329
6. Secure the coupling and ball screw shaft.
To Next Page
