7-8
KRF
7.
Installation and Operation
7.
Installation and Operation
7.
Installation and Operation

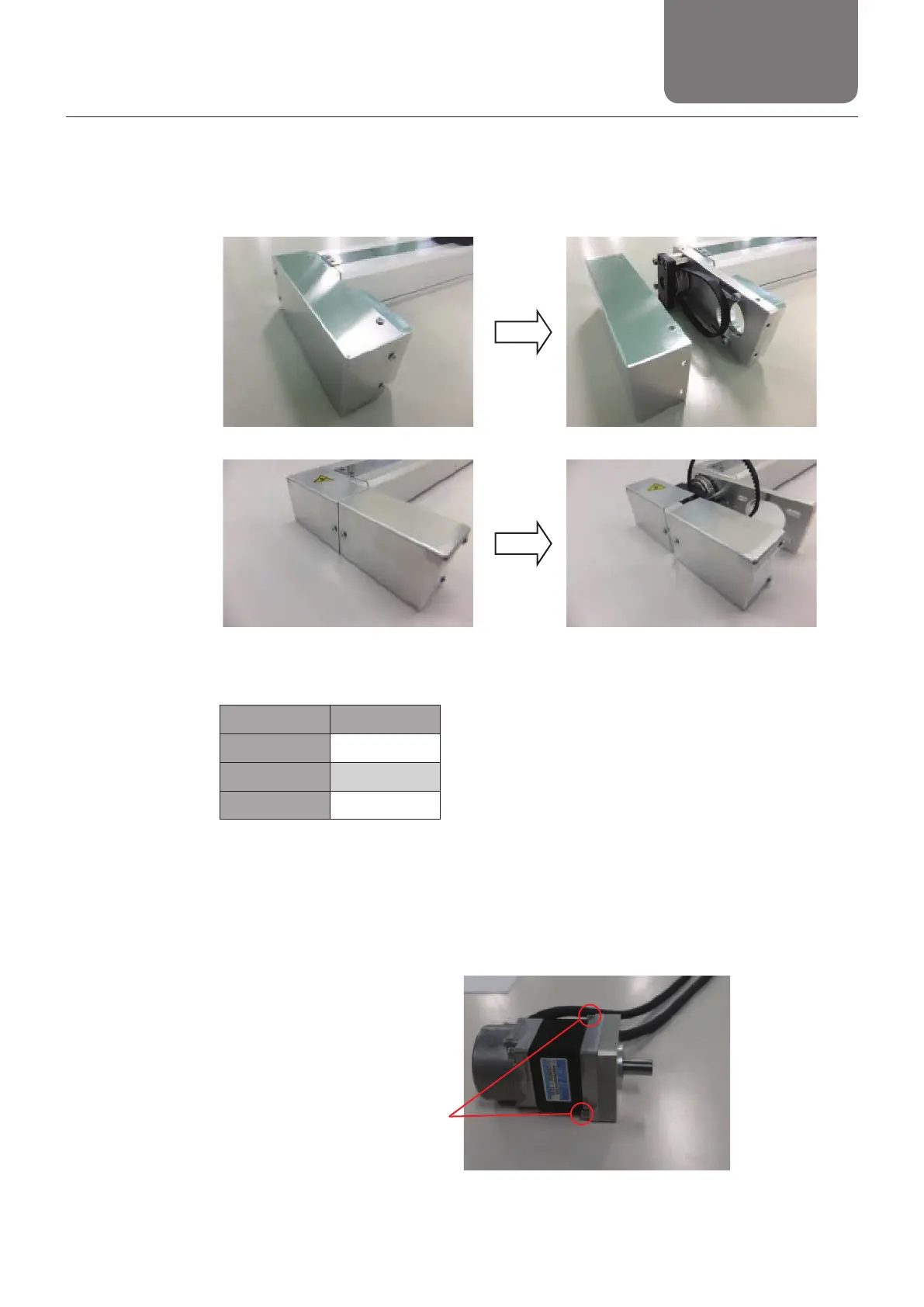

[Return type specification]
1. Remove the mounting bolt, and remove the return cover.
KRF4R/5R
KRF6R
Model number Bolt size
KRF4R M2.6×4L
KRF5R M2.6×4L
KRF6R M3 x 5L
Bolt type: Thin head
(FH type)
head scre
ws
2. Mount the motor mounting plate on the motor.
Mount the motor paying attention to the orientation of the motor mounting plate.
Check that the mounting bolt is not protruded beyond the motor mounting plate.
Mounting bolt
