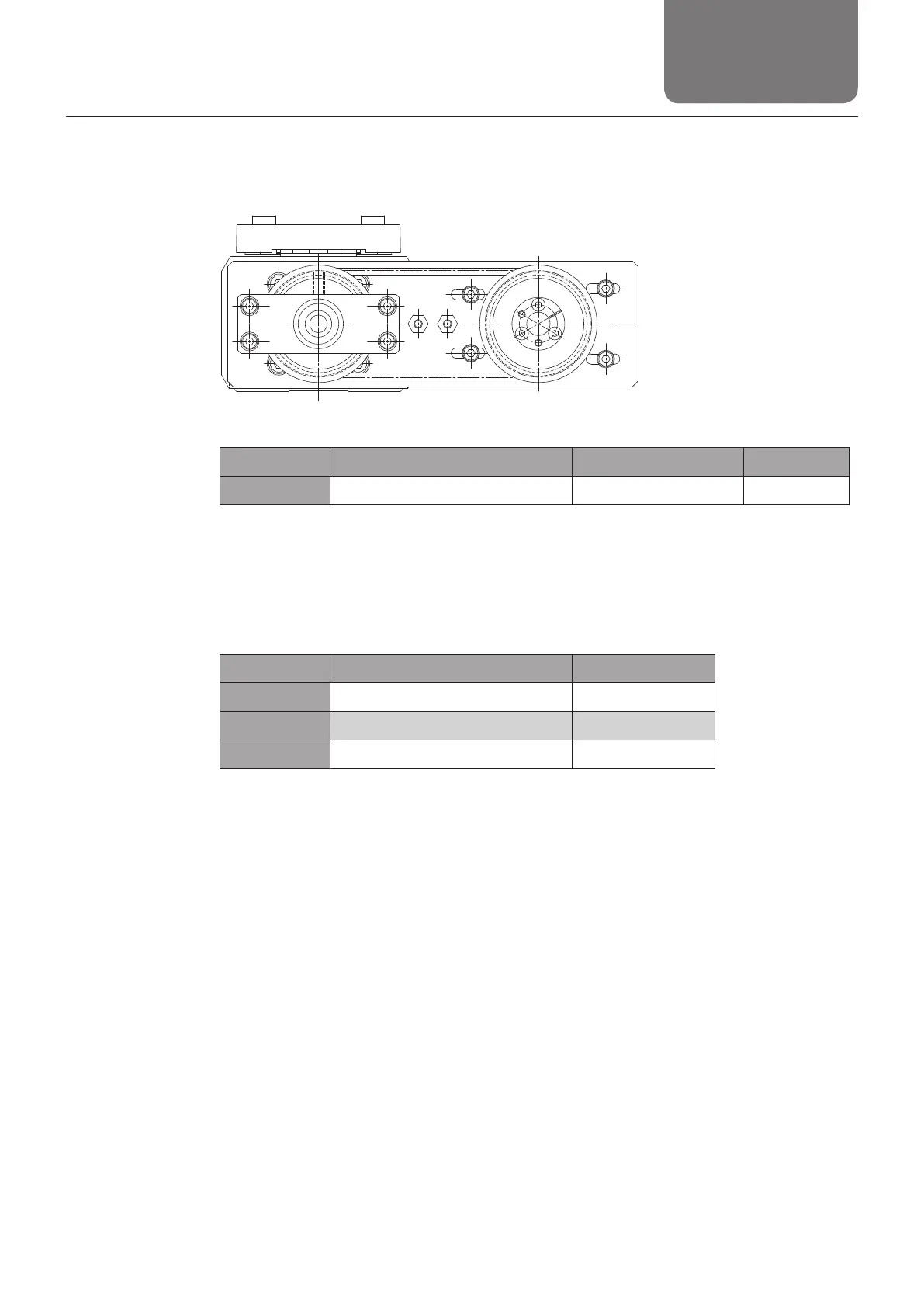

· For tightening type M
Mount the
timing pulley and mecha lock that come with the product.
Mecha lock: PSL-D-8 (Miki Pull
ey Co., LT
D.)
Model number Number - Nominal x Length Tightening torque [N·cm]
Screw hole for removing
KRF6R 3-M2.5 × 10 100 2-M2.5
Retighten the mounting bolts e
venly in d
iagonal order. And then, tighten all the bolts evenly using
a torque wrench according to the recommended tightening torque until it comes to a stop. Do
not use any bolts other than the ones attached to the mecha lock unit.
5. Mount the timing belt.
The table below
s
pecies timing belts corresponding to each model.
Model number Belt manufacturer Belt model
KRF4R Gates Unitta Asia Company 184-2GT-6
KRF5R Gates Unitta Asia Company 204-2GT-6
KRF6R Gates Unitta Asia Company 264-3GT-4
To Next Page
