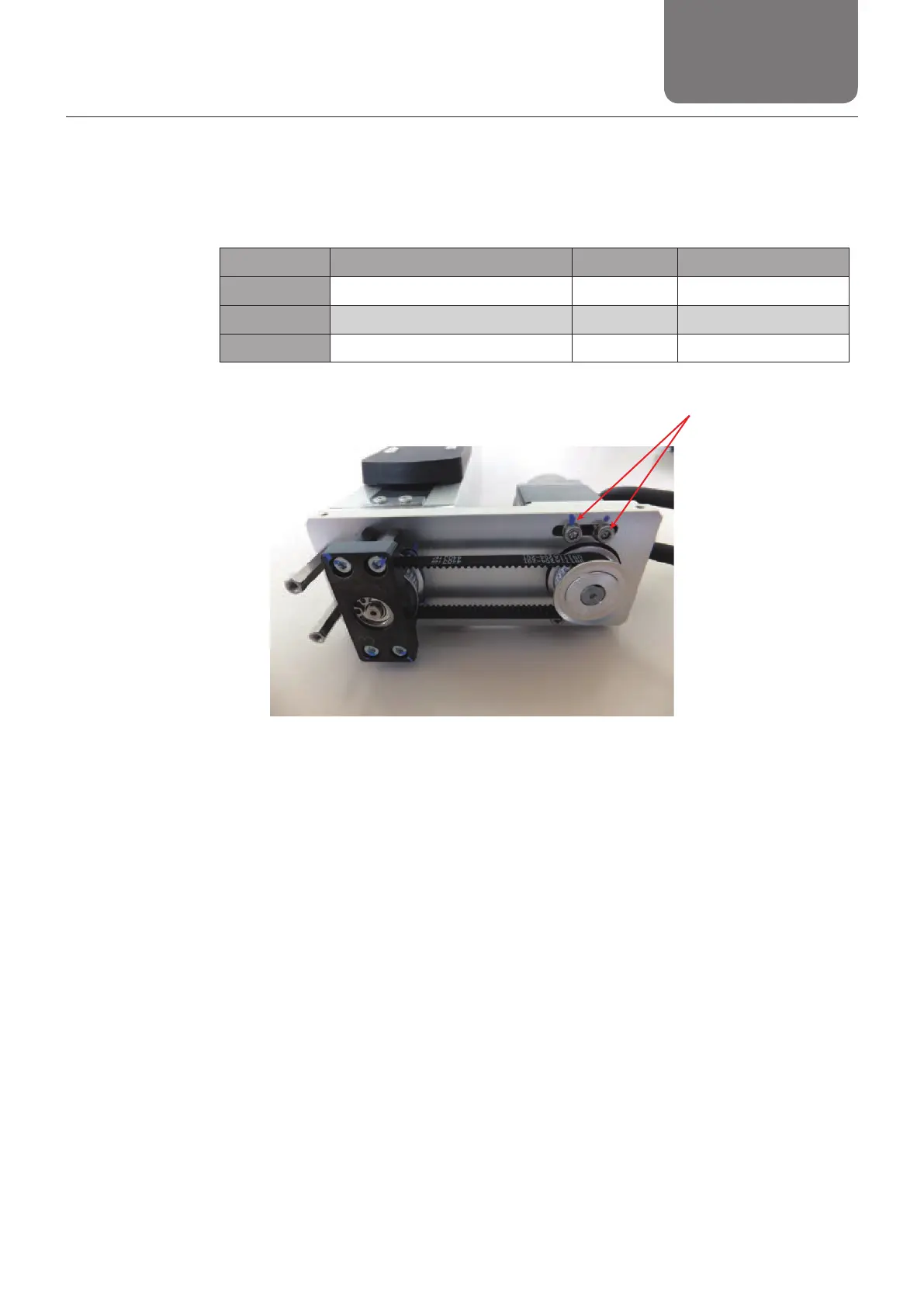

7. Fasten the bolts.
F
asten hexagon socket
head cap screw using the specied tightening torque. (plain washer, 4
holes)
Please measure it by the tensimeter once again after fastening the bolt.
Model number Intermediate ange type Bolt size Tightening torque [N·cm]
KRF4R WM, WN, WP, WQ M3 × 6L 125
KRF5R WM, WN, WP, WQ M3 × 6L 125
KRF6R WP, WQ M3 × 6L 125
Bolt type: Hexagonal-socket-he
ad type bo
lt
Fasten the bolt
