8.
Maintenance
8-17
KRF
8. Maintenance

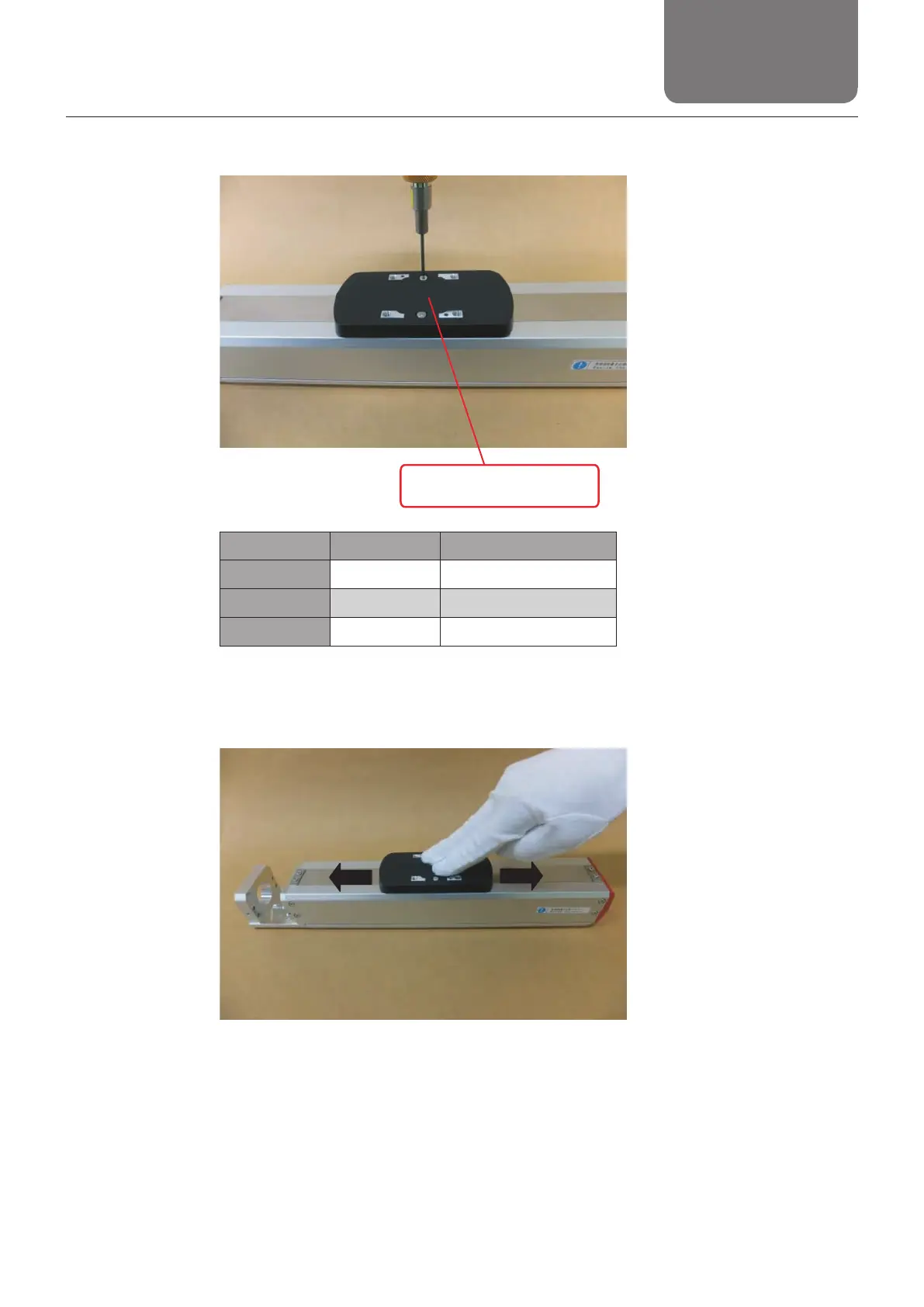

14. Mount the strip seal adjustment jig.
Strip seal adjustment jig
Model number Bolt size Tightening torque [N·cm]
KRF4 M2.6 × 4L 9
KRF5 M3 × 5L 17
KRF6 M3 × 5L 17
Thin head FH type head screws
15. Move the table back and forth for three rounds covering the entire stroke. Stop the table around
the stroke center.
