8.
Maintenance
8-22
KRF
8. Maintenance

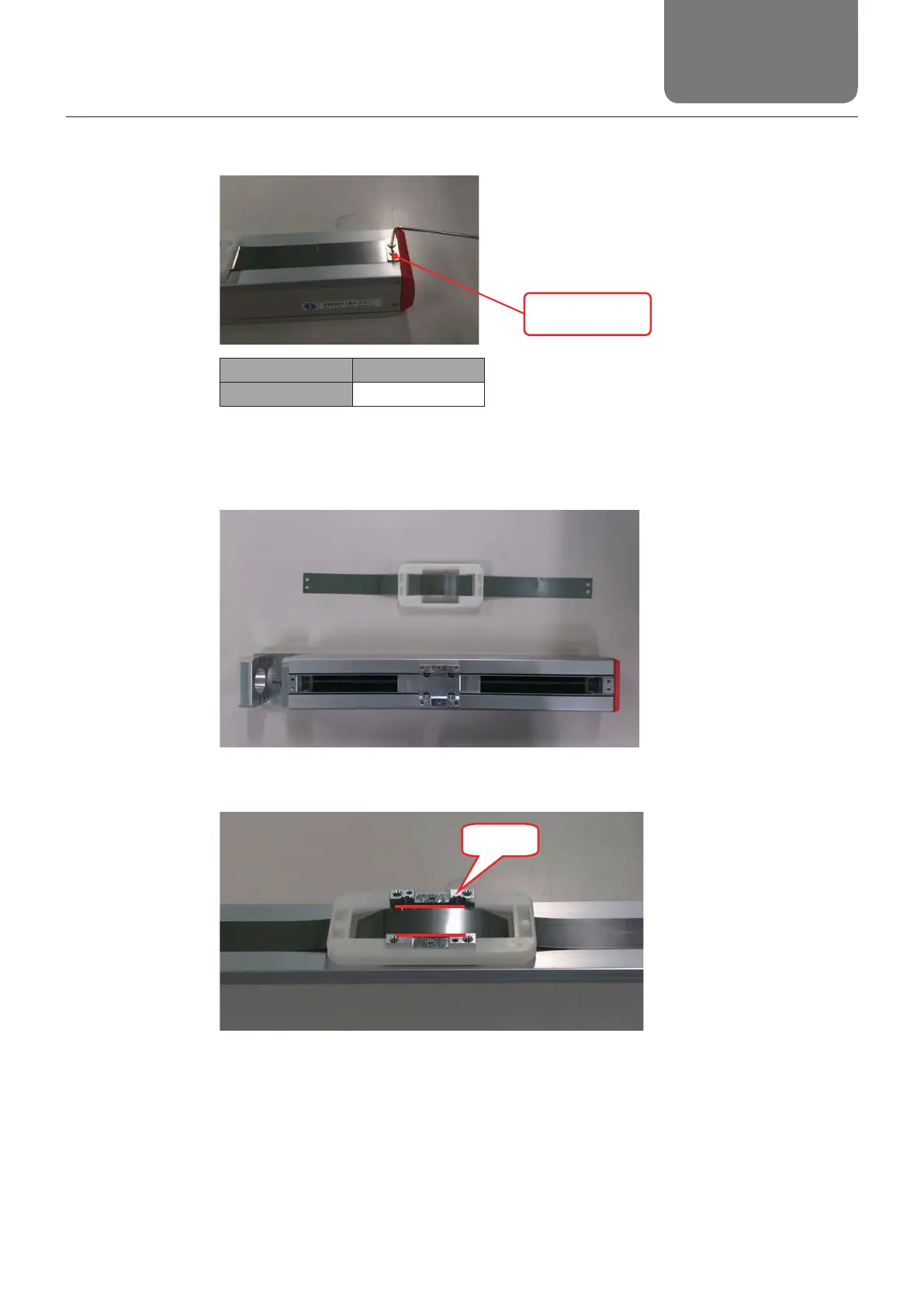

4. Remove the strip seal holder (on the reverse motor side).
Strip seal holder
Model number Bolt size
KRF3 M2.6 × 4L
Thin head FH type head screws
5. Remove the strip seal and the strip seal guide from the main unit, and replace it with the new
one.
6. Place the strip seal guide and strip seal on the table.
Table
* Mount the strip seal holder, adjusting the table and strip seal so that they do not touch over the
entire stroke, and so that the strip seal does not lift.
To Next Page
