8. Maintenance

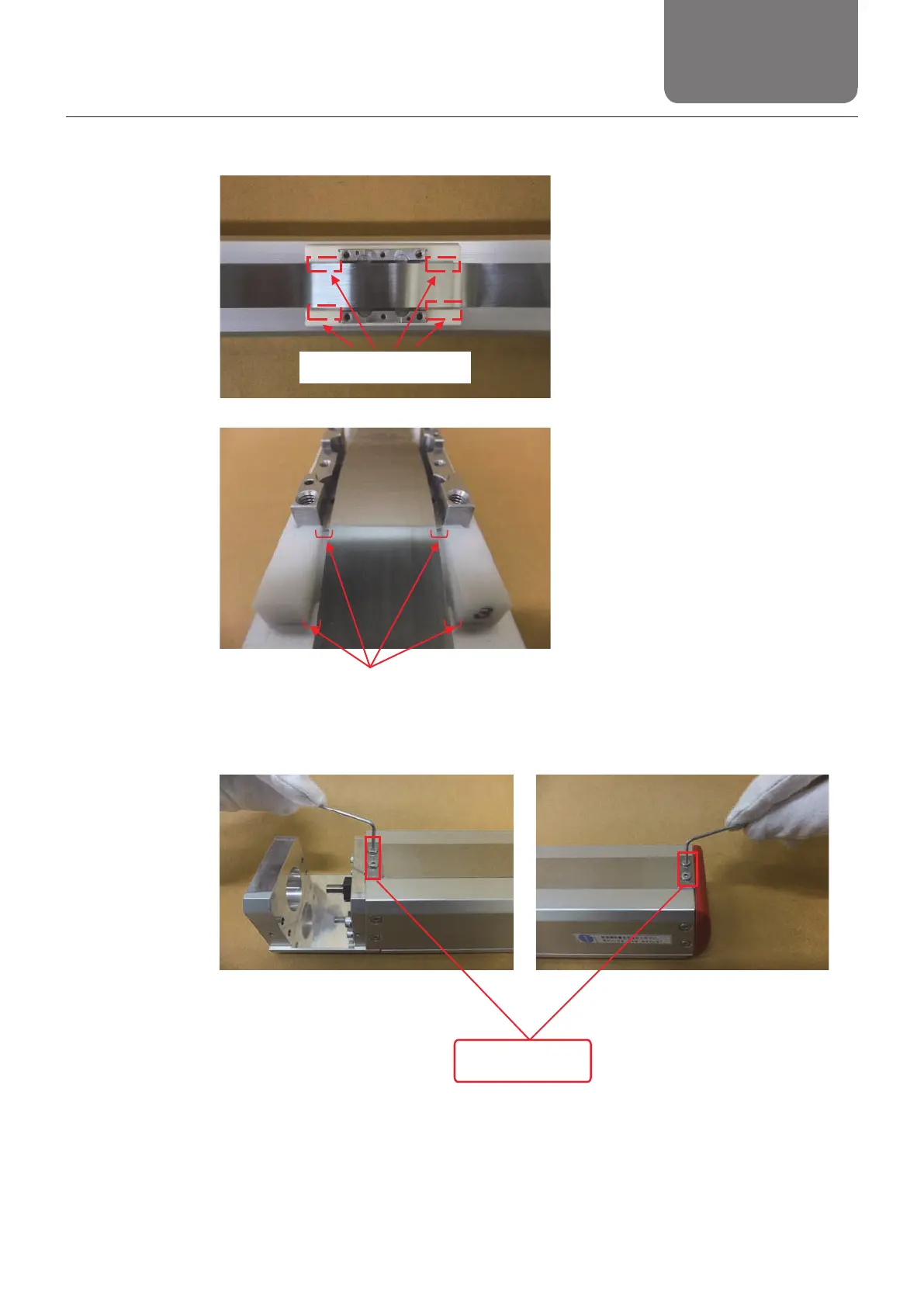

5. Adjust the strip seal position at the center of the strip seal guide and even out the clearances.
Even out the clearances
Even out the clearances
6. Tighten it until the strip seal holder stays in place. Loosen the thin head screw by one turn.
Strip seal holder
