8. Maintenance
14. Check the clearance of the strip seal. Verify the height of the strip seal and table cover mounting
surface to make sure that the strip seal is located lower than the table cover mounting surface.
If the strip seal is higher than the table cover mounting surface, re-adjust the strip seal from the
temporary assembly process.

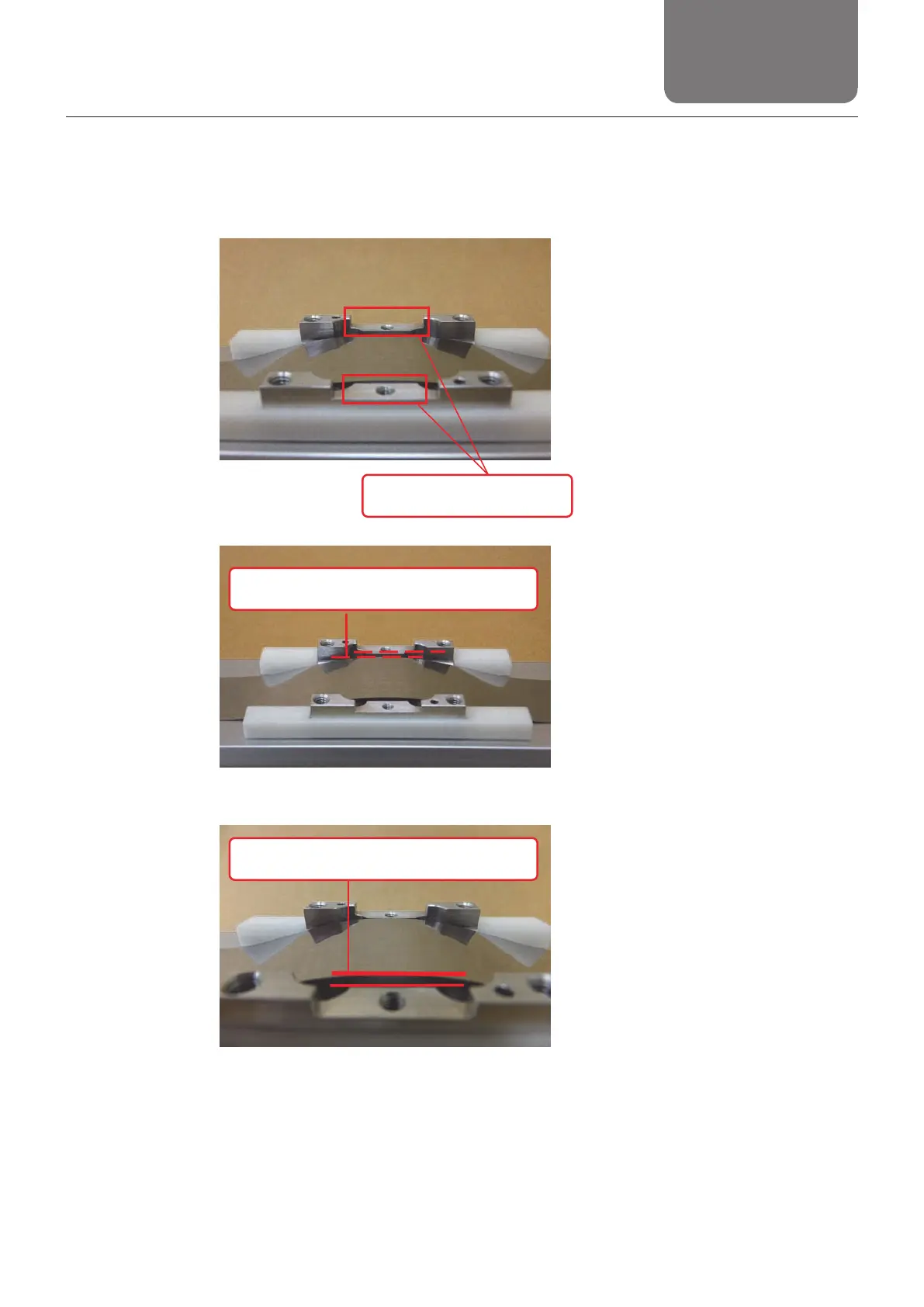

Example of appropriate mounting state
Example of inappropriate mounting state
Strip seal is higher than the mounting surface
Strip seal is lower than the mounting surface
Table cover mounting surface
