10
ZIP 22
CAUTION:
Keep away both Hands and Arms from the cutting area !

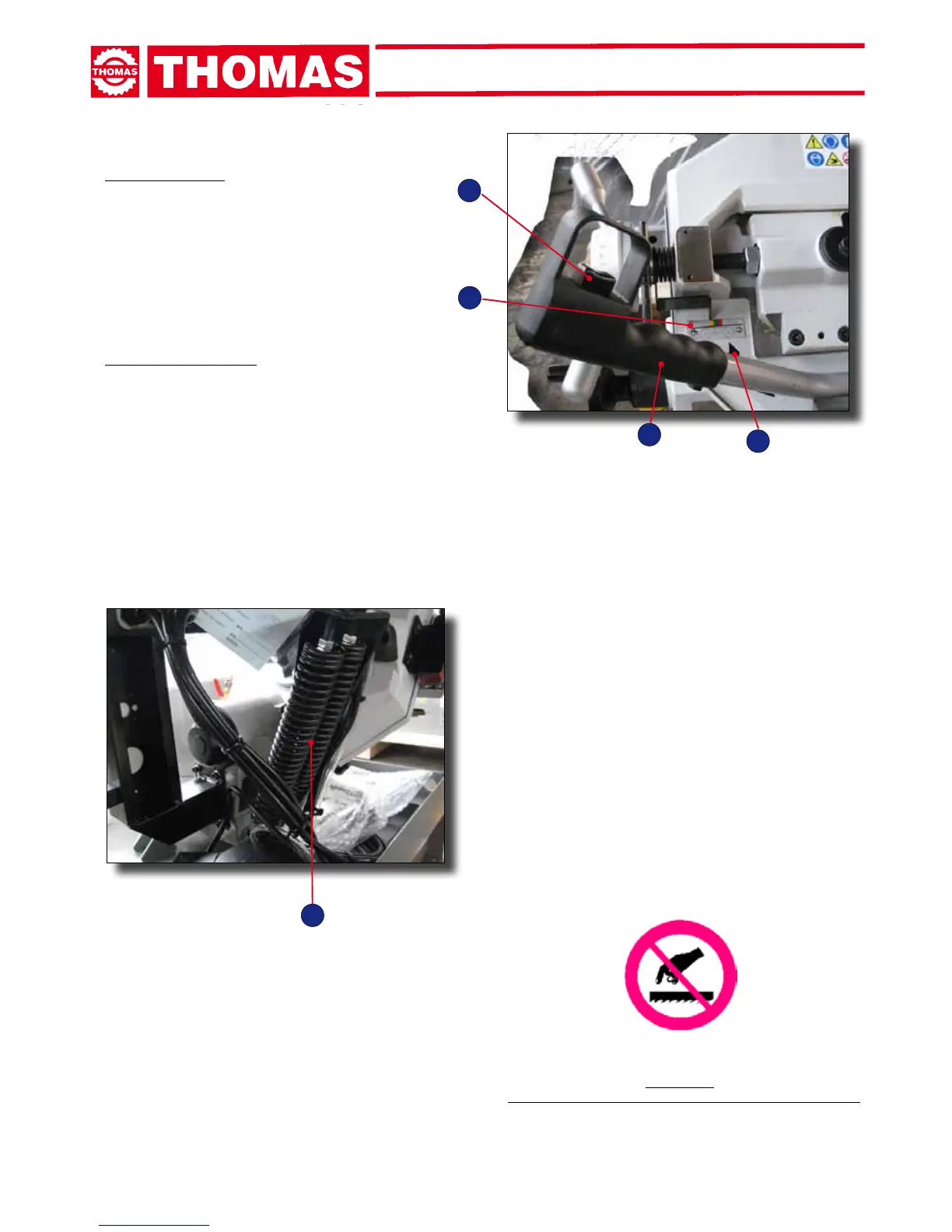

6) Dead man's Switch
A dead man's switch is a switch that is automatically operated
if the human operator becomes incapacitated, such as though
death, loss of consciousness or being bodily removed from
control. This switch merely brings back the machine to a safe
state while leaving the machine ready to resume normal ope-
ration once control is reestablished.
7) Sawframe holder Spring
This is a set of of one or two springs to hold up the sawframe
to the top position before introducing the material to cut into
the vice. Successively, once the preliminary operations have
been completed such as:
- The Blade has been tensioned
- The Blade rotation speed has been selected
- The Material to cut has been loaded and clamped in the vice
- The Motor has been started to run the blade and the coolant
liquid.
The operator can pull down the sawframe at the recommended
feed rate and cut the material.
Once the cut is completed, the sawframe raises to the top
position through the spring pull.
-
- Make sure that the blade rotates in the sense shown by the
arrow ( 9 ) located on the sawframe and that the electropumps
delivers the coolant liquid properly. The coolant liquid should
be consisting of water and 8-10% emulsion oil.
Now the machine is ready to use. Pay attention to the following
CUTTING PARAMETERS:
- BLADE SPEED, SAWFRAME DOWNFEED SPEED and
BLADE TOOTH PITCH. These are fundamentals which guar-
antee proper cutting quality and machine performance.
For more information see Chapter:
MATERIAL CLASSIFICATION and TOOL CHOICE
- In case of danger or trouble, press the red emergency push-
button to stop any function.
8
9
10
6
7
