TECHNICAL DATA

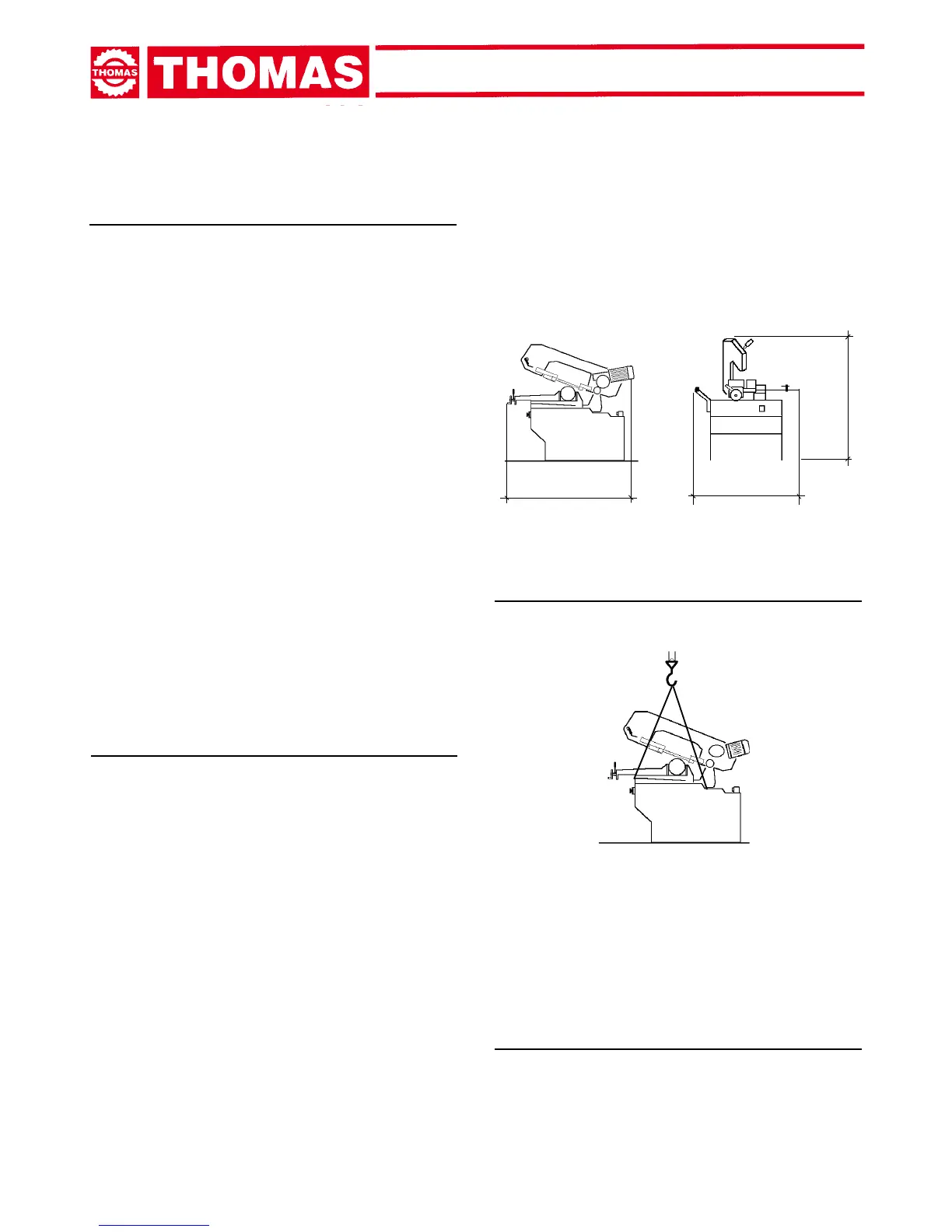

3.1 - Cutting Capacity and Technical Data
3
Electric Motor ............................................. kW 0,37/0,75
Electropump, Coolant Liquid ...................... kW 0,07
Sawband, Dimensions ................................ mm 2095x20x0,9
Flywheel, Diameter ..................................... mm 270
Sawband, Cutting Speed ............................ m/min 35/70
Vice Opening .............................................. mm 215
Working Table, Heigth ................................ mm 970
Mitre cutting ................................................ 45°÷ 60°
Machine-Dimensions .................................. mm 1280x510x1370
Machine-Weight .......................................... kg.180
Voltage........................................................ V 400
Frequency................................................... Hz 50
Max. power Absorption ............................... A 2,5
Coolant tank, Capacity ............................... l 16
Technical Data
Round 0° ................................................... ø mm 180
Round 45° ................................................ ø mm 115
Round 60° ................................................. ø mm 70
Square 0° ................................................... mm 180x180
Square 45° ................................................. mm 110x110
Square 60° ................................................. mm 70x70
MACHINE DIMENSIONS
TRANSPORT
INSTALLATION
DISMANTLING
4.2 - Transport and handling of the machine
If the machine has to be shifted in its own packing, use a fork-lift
truck or sling it with straps as illustrated.
4.3 - Minimum requirements for the premises
housing the machine
- Mains voltage and frequency complying with the machine motor
characteristics.
- Environment temperature from -10 °C to +50 °C.
- Relative humidity not over 90%.
