4. Installation
4.1 Product label
The product label can be found on the side of the cover tube. It will tell you which model of actuator
you have, its basic performance data and where it is manufactured. Please study the product label
to determine actuator type before starting any installation or service on the actuator. If you need any
assistance from Thomson, please provide the serial number, manufacturing date and the designation
of the actuator(s) in question. You can also use the QR code on the label to directly access Electrak LL
information on www.thomsonlinear.com.
4.2 Terminology
4.3 Operation environment
1. Operation temperature range is -40 to +85° Celsius (-40 to +185° Fahrenheit).
2. Protection degree against the ingress of water and particles is IP66 / IP69K.
3. Relative humidity range is 10 - 90 % non-condensing.
Installation
Min. -40° C (-40° F) Max. +85° C (+185° F) IP66 / IP69K

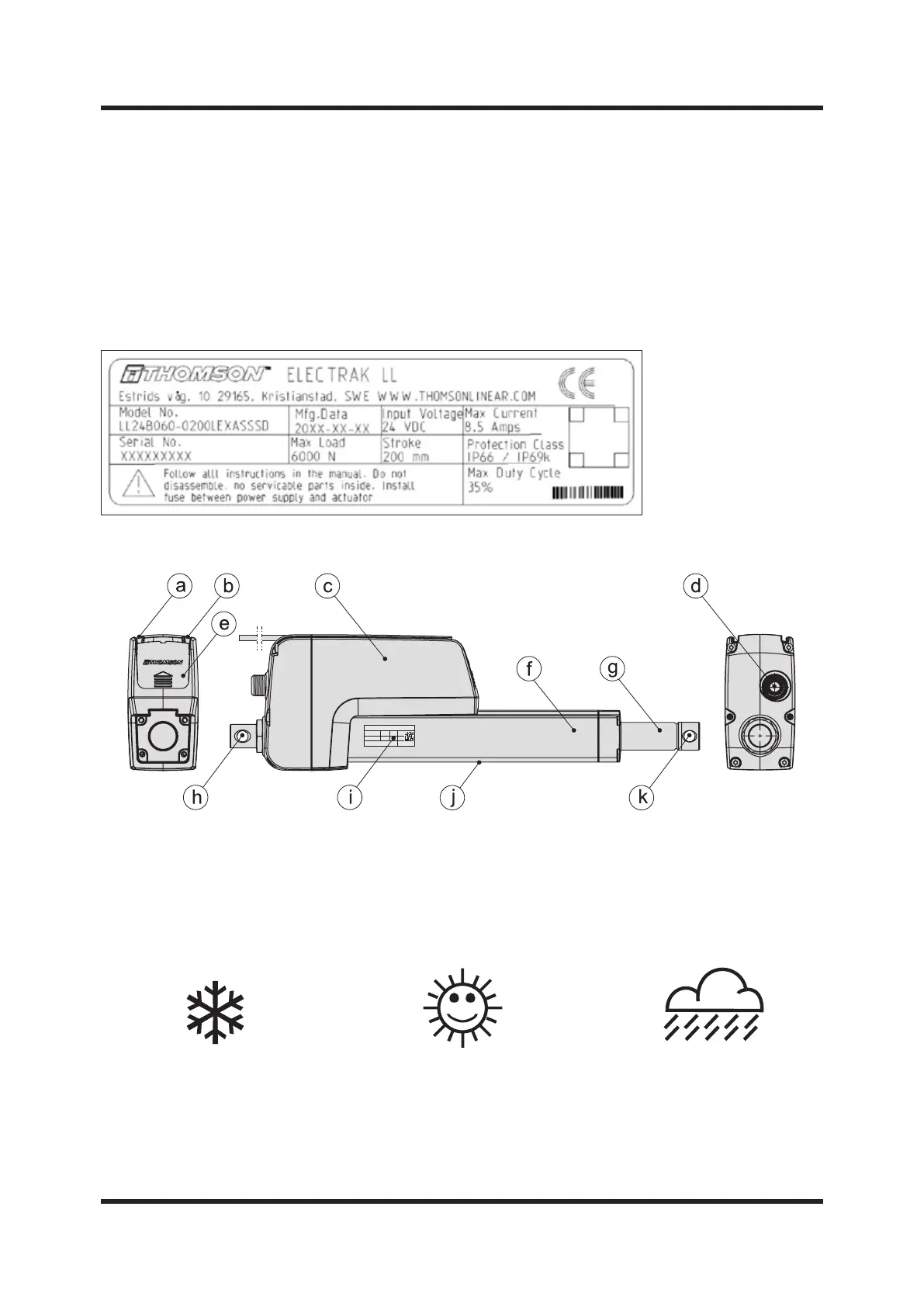

a. power cable b. signal cable c. housing
d. hand wind input e. cable connector cover plate f. cover tube
g. extension tube h. rear adapter i. product label
j. limit switch slots k. front adapter
