118

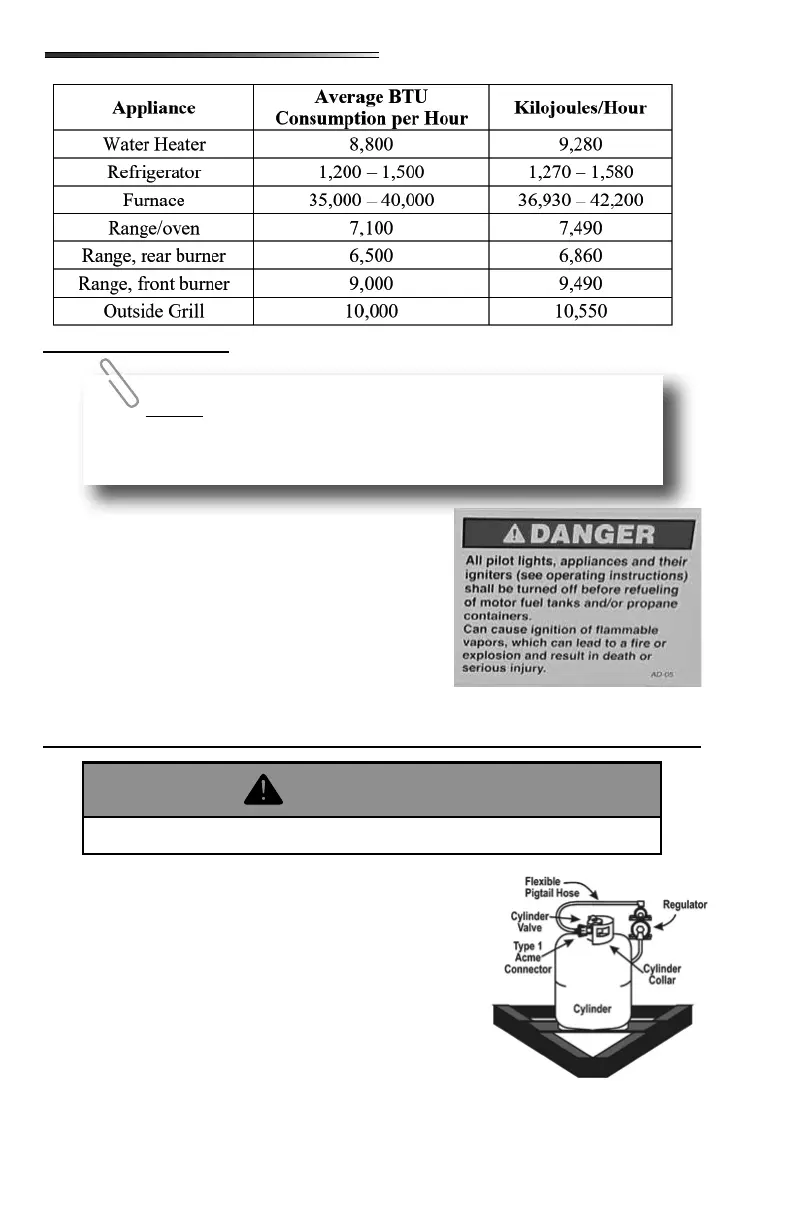

Installing Propane Cylinder(s)
1. Connect the 3/8” low pressure hose to the outlet of the
two stage regulator.
2. Attach the regulator with the “Z” bracket on the center
of the front wall with the vent pointing down.
3. Attach the protective plastic cover to the regulator.
4. The regulator has a 90° elbow that directs the inlet to-
ward the trailer curbside.
5. Place the cylinder on the bracket provided on the A-
frame and position it so the outlet of the cylinder valve
is pointed directly outward to the curbside wall.
Make sure all fasteners are secured before traveling.
Use care when fueling your motor fuel tanks and/or
propane containers. Make certain your propane tank is
properly fastened in place.
This label should be kept permanently axed to your
recreation vehicle.
Some states prohibit propane appliances to be operated during
travel, especially in underground tunnels. Know the laws for the areas
where you travel.
