VII. Operation of the TD 166 MkII

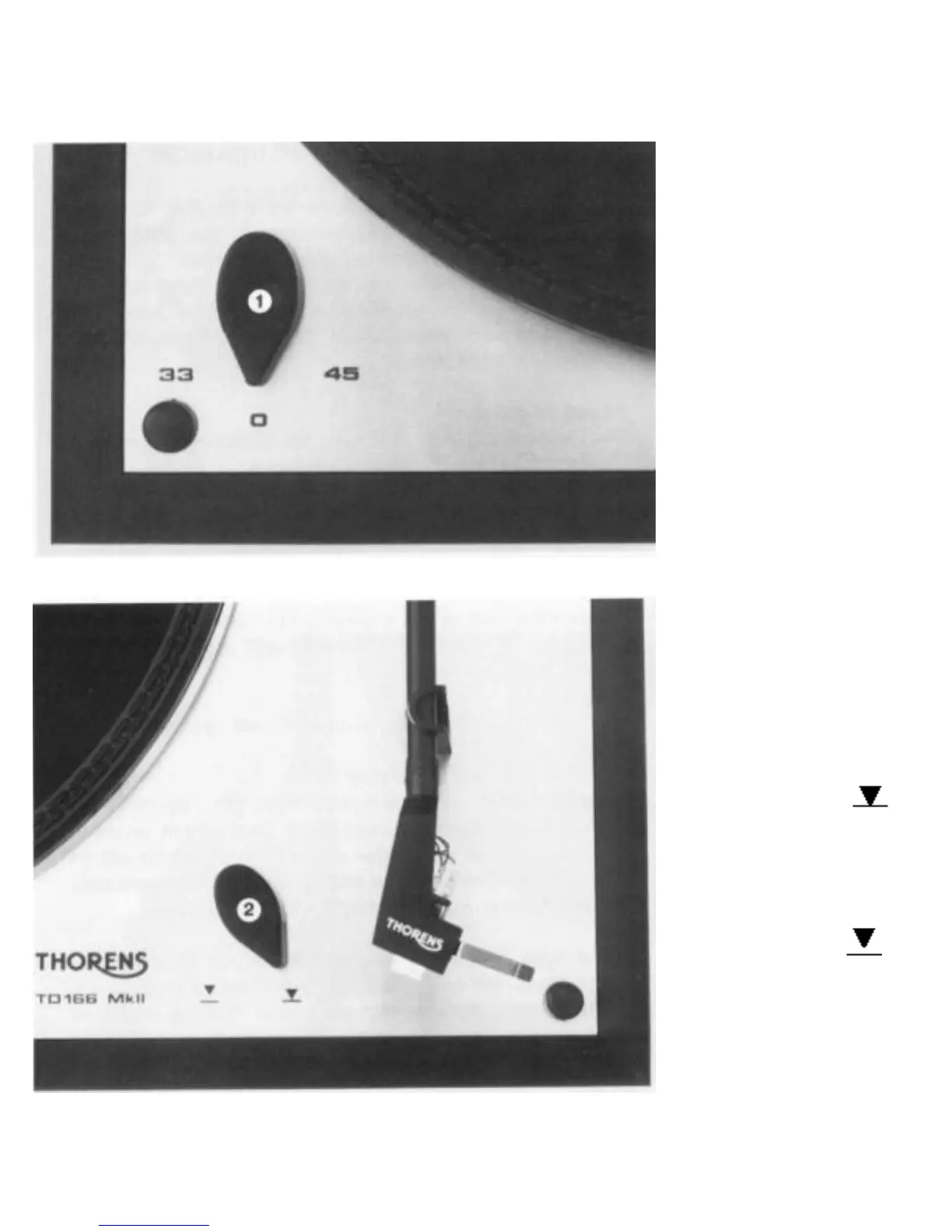

Figure 16
The knob (1) to the left in
of the turntable platter is
used to turn on the unit
and select the speed
simultaneously.
Turning the knob (1) to
"33" selects 33 1/3 RMP,
turning to "45" selects 45
RPM.
Figure 17
The lift knob (2) at the
right allows the tone arm
to be lowered onto, or
raised from, any desired
point on the record.
Turning the lift knob (2)
to the play position
lowers the tone arm onto
the record.
Turning the lift knob (2)
to the rest position
raises the tone arm.
The adapter (4) at the
center of the turntable
platter may be reversed for
playing 7 inch records
with large center hole.
