VI. Operation of the TD 146 turntable

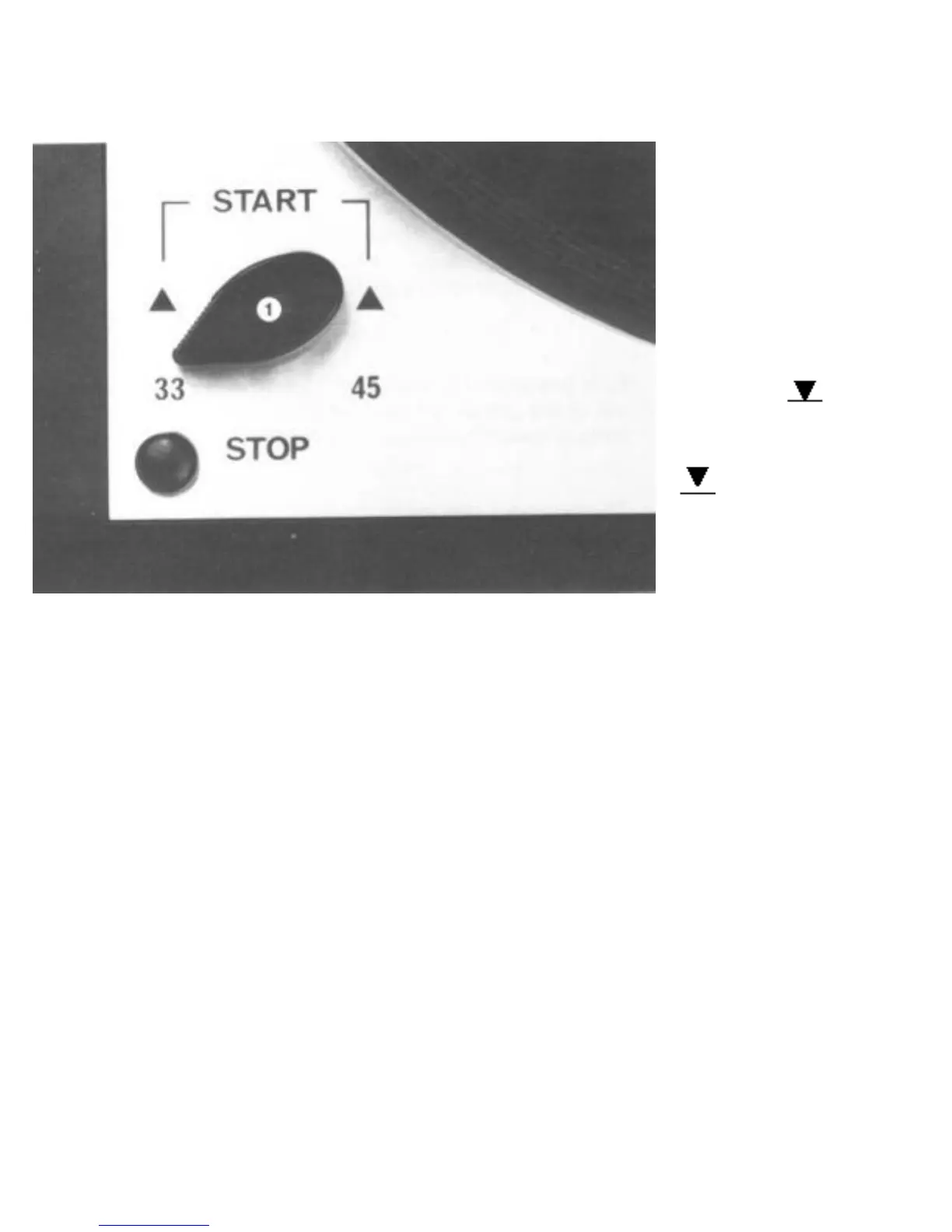

Figure 13
The knob (1), situated left
in front of the turntable
platter, controls the
turntable speed, the
starting of the turntable
and the interruption of
record play. Turning the
control knob on the right
hand side of the unit (2) to
the position
lowers
the tone arm onto the
record. When turned to
the knob lifts the tone
arm off the record.
Speed selection
The speed (33 1/3 or 45
RPM) is selected by
turning the knob (1) to the
corresponding figure. The
adapter (4) is employed at
the center of the turntable
platter for records with a
large center hole.
