VIII. Mounting and adjustment of the pickup cartridge
Figure 18
Figure 19
The TP 63 cartridge wand
has been designed for low
effective mass and for
functional convenience in
interchangeable use of
more than one pickup
cartridge with the
turntable. It can be kept
safely in the hinged storage
case when not in use.
If the pickup cartridge
intended for use is not
already installed in the
cartridge wand, it is to be
mounted according to the
following instructions:

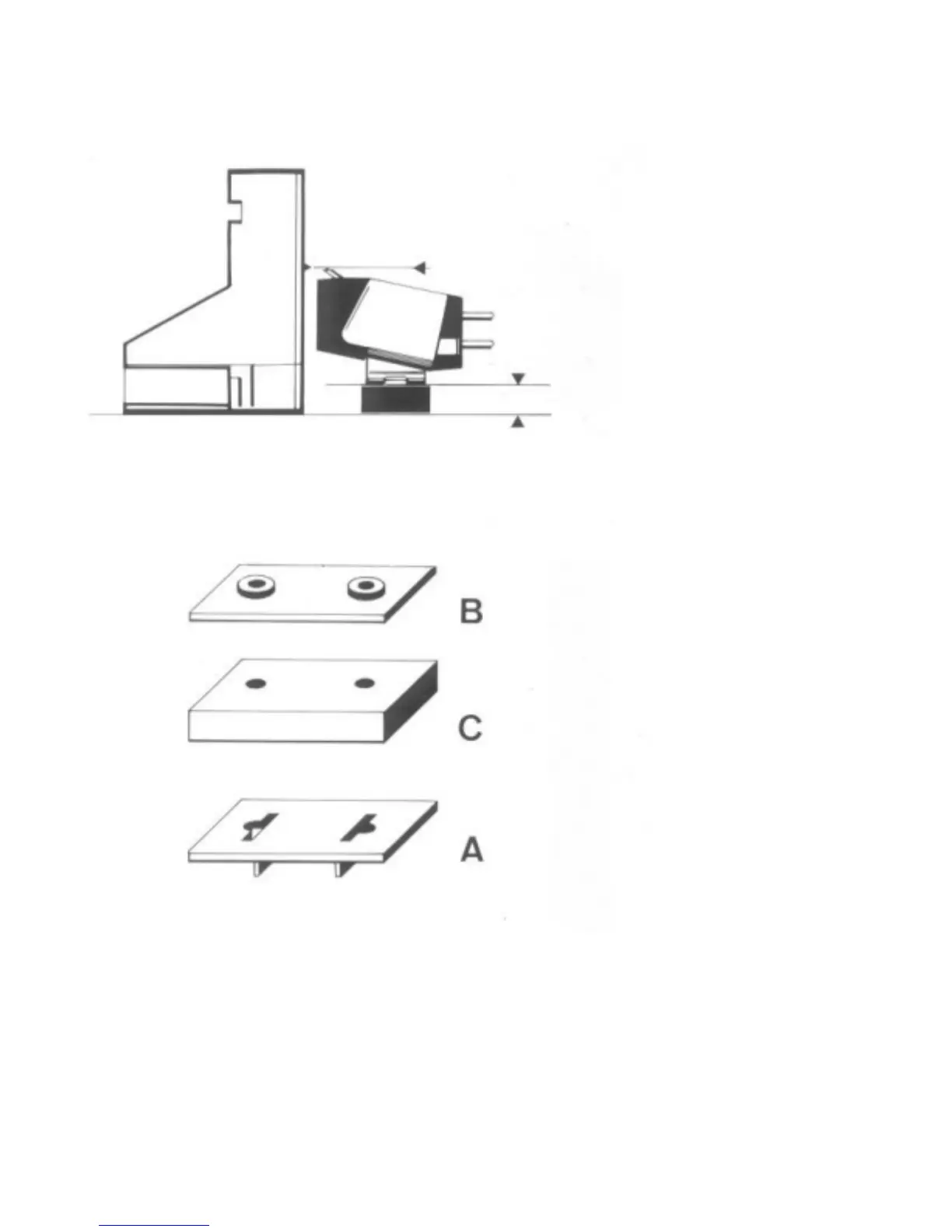

1. Place the pickup
cartridge facing the
transport mounting
guide as shown in
Figure 18.
2. Compare the height
of the stylus tip
with that of the
sighting graduations
on the front side of
the guide. Select the
appropriate spacer
to bring the stylus
in line with the
marks. There are 5
different C-spacers
available, from 1 to
3 mm thick.
3. Two of the spacers,
