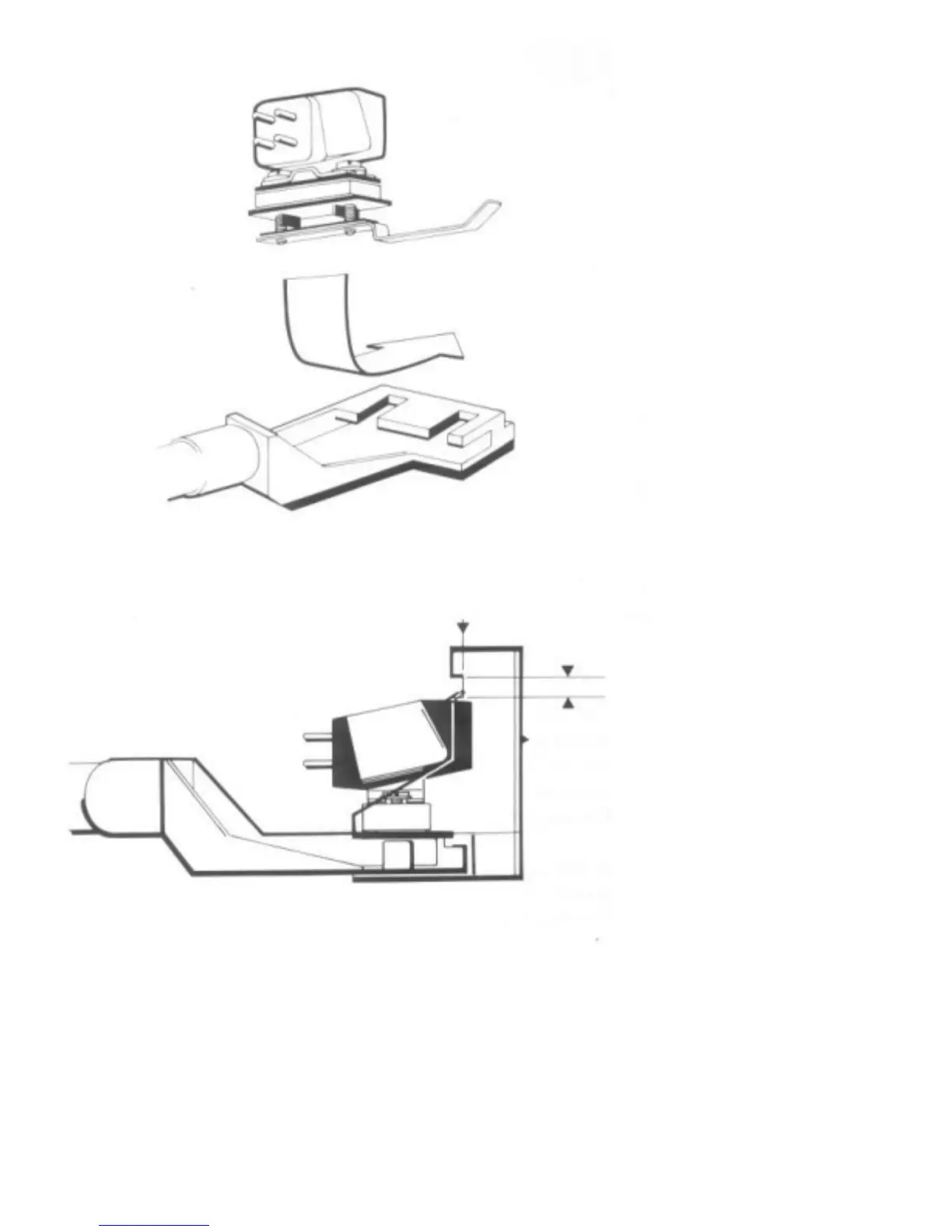

Figure 20
Figure 21
A and B, fulfill
additional
functions; as a
consequence, the
assembly scheme
indicated in Figure
19 should be
maintained.
The A-spacer is
identifiable by the
guiding ridge along
each mounting hole.
The shoulders fit
into the mounting
slits of the cartridge
wand to prevent
misalignment of the
spacer assembly,
and, therefore, this
spacer must always
be used.
The B-spacer
possesses an
embossed 0.5 (mm)
identification and a
collar around each
hole. This spacer is
intended for pickup
cartridges with
large mounting
holes only; the
collars snap into the
holes to prevent
misalignment of the
cartridge.
4. Remove the metal
lifting handle
assembly from the
headshell. The
following steps are
performed outside
