THORENS TD 166 MKII User Manual

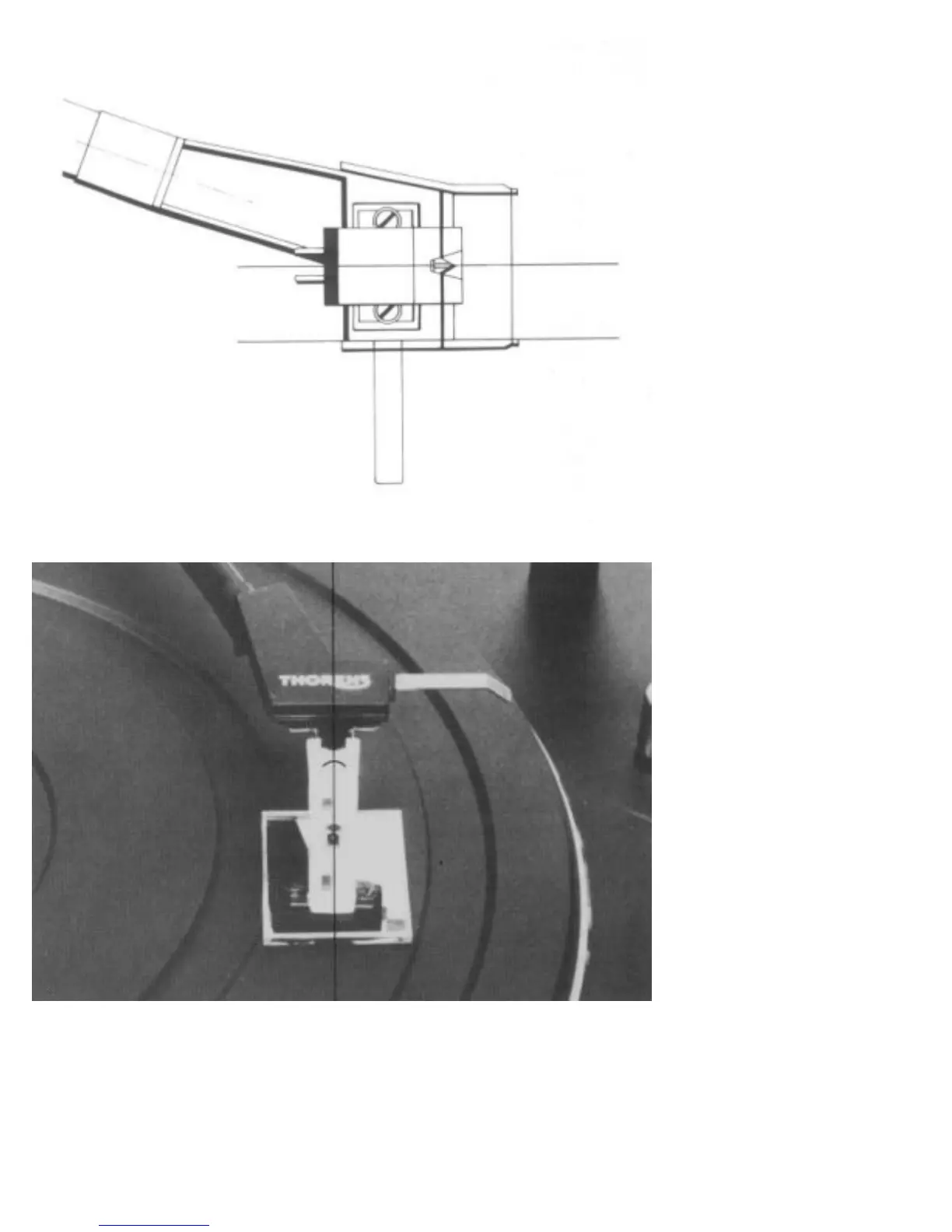

Figure 22
Figure 23
of the wand.
Disassemble it.
Select two screws
of appropriate
length together with
washers and insert
them through the
mounting holes of
the pickup cartridge
and the spacers.
Secure the
assemblagee by
screwing on the
metal lifting handle
with the attached
insulating spacer.
The screws
employed should
not now extend
more than 1 mm out
of the handle when
fastened.
5. Slide the mounted
pickup cartridge
onto the cartridge
wand (Figure 20).
6. Slide the cartridge
wand as far as
possible into the
mounting gauge.
Figure 21 illustrates
the correct positon
of the stylus tip.
The longitudinal
position of the
stylus can be varied
by sliding the
cartridge with
respect to the arm.
If the spacers have
been properly

THORENS TD 166 MKII Specifications

General

Brand	THORENS
Model	TD 166 MKII
Category	Turntable
Language	English
