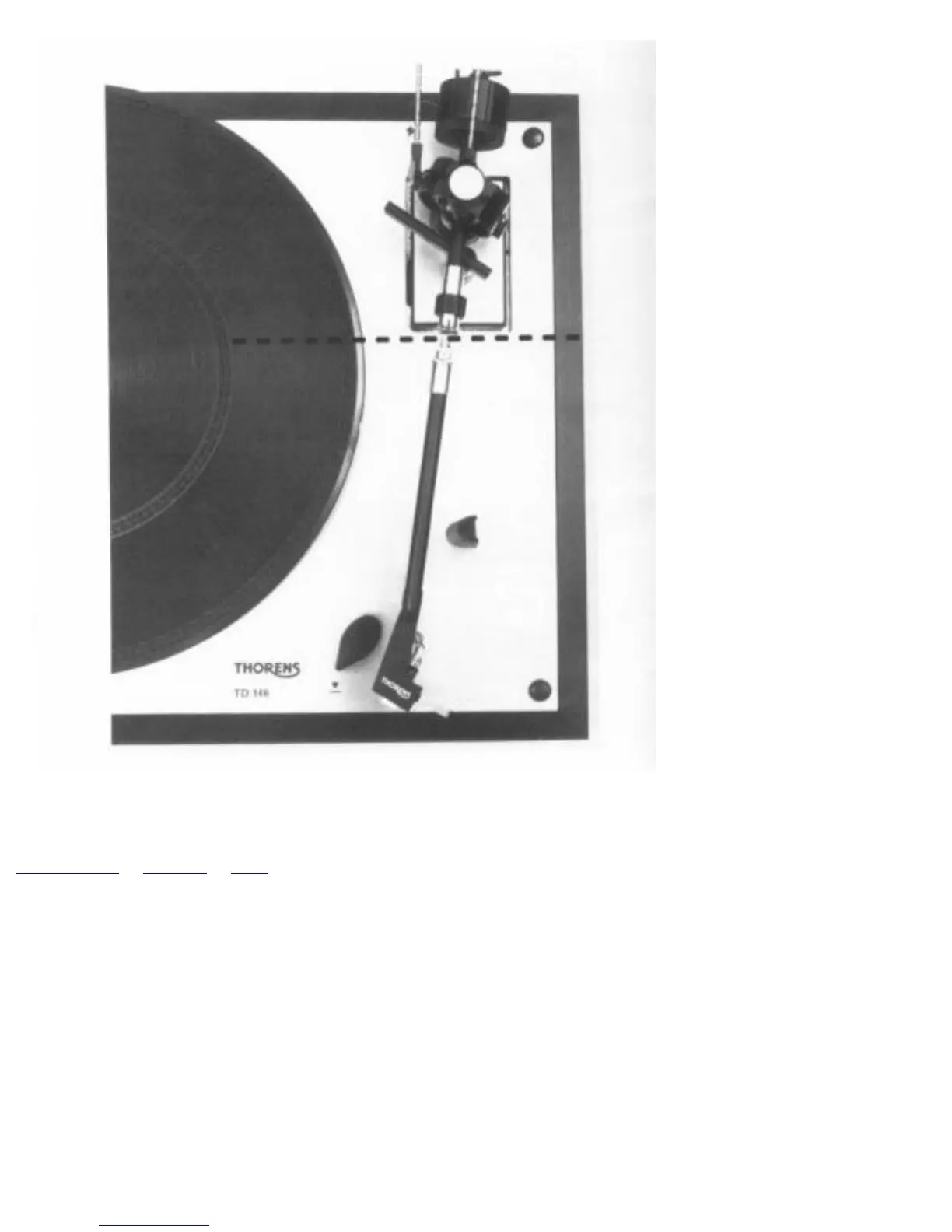

Figure 7
The TP 11 Mk III tone
arm consists of the bearing
assembly and the TP 63
cartridge wand, illustrated
in Figure 7. The cartridge
wand with pickup
cartridge is plugged into
the bearing assembly and
secured by tightening the
knurled collar.
Instructions for mounting
a pickup cartridge are
given in Section VIII.
Tighten the counterweight
temporarily into position
at the rear end of the tone
arm (see Figure 10 in
Section IV).
Remove the dust cover
from the upper packing
enclosure and fit it into the
hinges (3) of the turntable
base (Figure 1).
