Loop the drive belt around the sub-platter and then
around the motor pulley. ➔ Fig. 2
Avoid oil or grease coming into contact with the belt,
pulley or sub-platter. If necessary, these parts can be
cleaned with glass cleaner or pure alcohol and a lint-
free cloth.

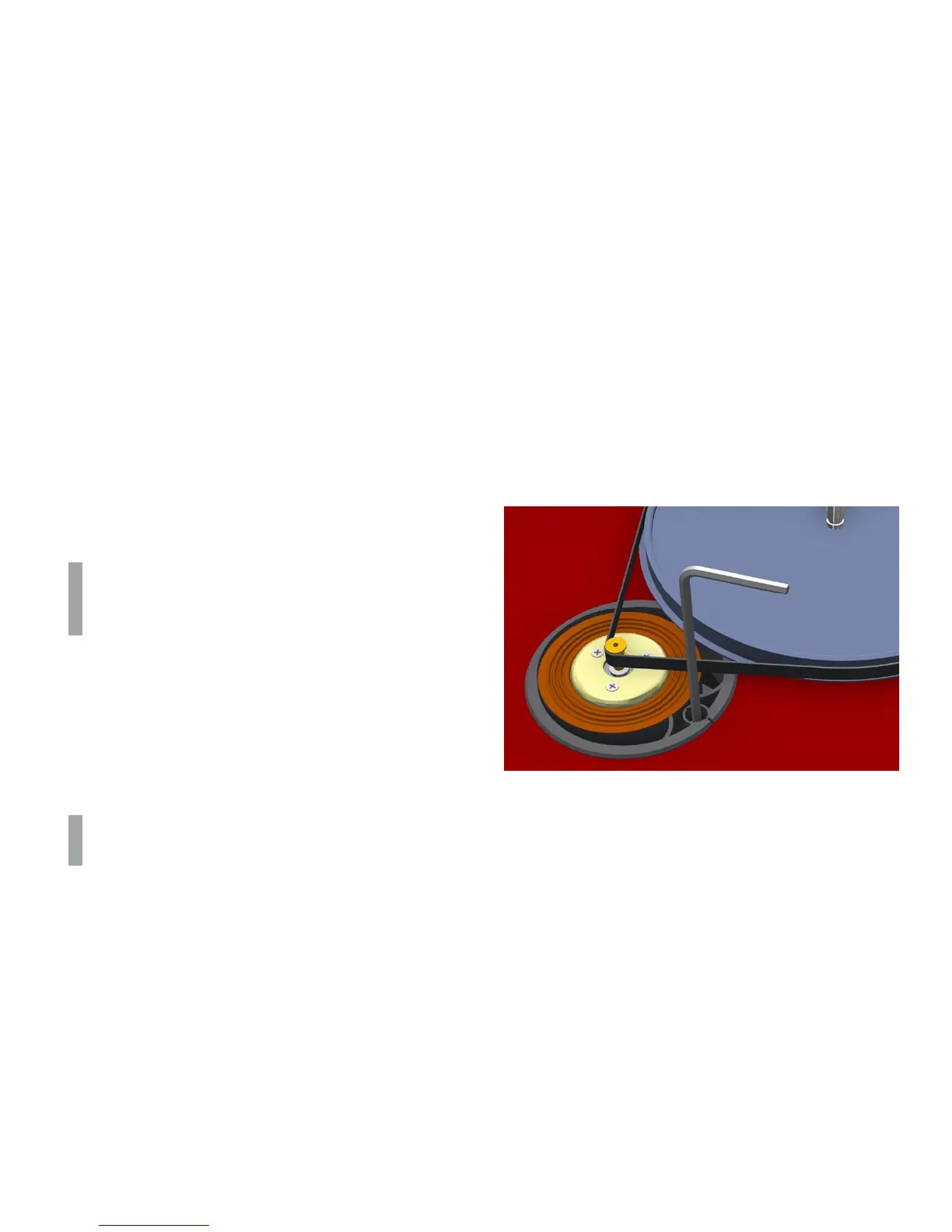

The belt tension is factory-adjusted. If it needs to be re-
adjusted (e.g. to compensate for gradual belt stretch),
loosen the locking screw of the eccentric motor support
ring and carefully rotate the ring. ➔ Fig. 2
If the belt tension is changed, the platter speed will
need to be reset. ➔ Page 27
The drive belt should be replaced every few years.
Thorens replacement belts are available from any
Thorens dealer or distributor.
25
Setup and Assembly
Fig. 2
