Tonearm and Pick-Up Cartridge
Your Thorens turntable is delivered with a pre-installed
TP 90 tonearm and an TAS 267 pick-up cartridge. ➔ Fig. 8
The tonearm is factory-adjusted; however, to avoid dam-
age, the tonearm counterweight is removed for ship-
ping. Screw the counterweight onto the rear end of the
tonearm and adjust the tracking force. ➔ Page 31
The TP 90 tonearm can accommodate most pick-up
cartridges with a distance of 12.5 mm (½ ”) between the
mounting holes.
To connect the pick-up cartridge, push the four colour-
coded cartridge tags onto the cartridge pins.
If the cartridge pins are not colour-coded, connect them
as follows:
R right channel (signal) ➔ red
G right channel (earth) ➔ green
L left channel (signal) ➔ white
G left channel (earth) ➔ blue

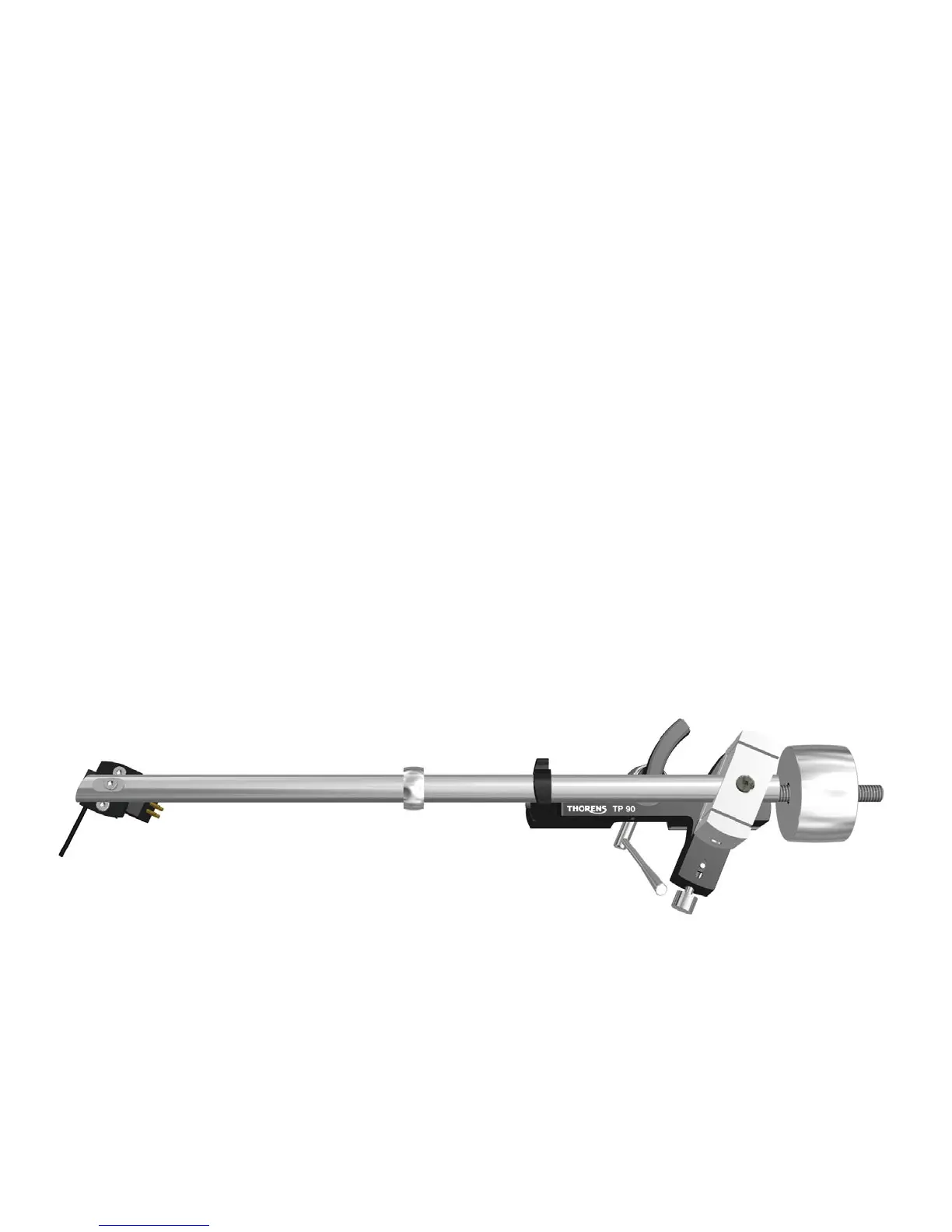

Fig. 8
