THORLABS FW102C User Manual

Motorized Filter Wheel Chapter 7: Specifications
Rev H, October 2, 2014 Page 16
15
96

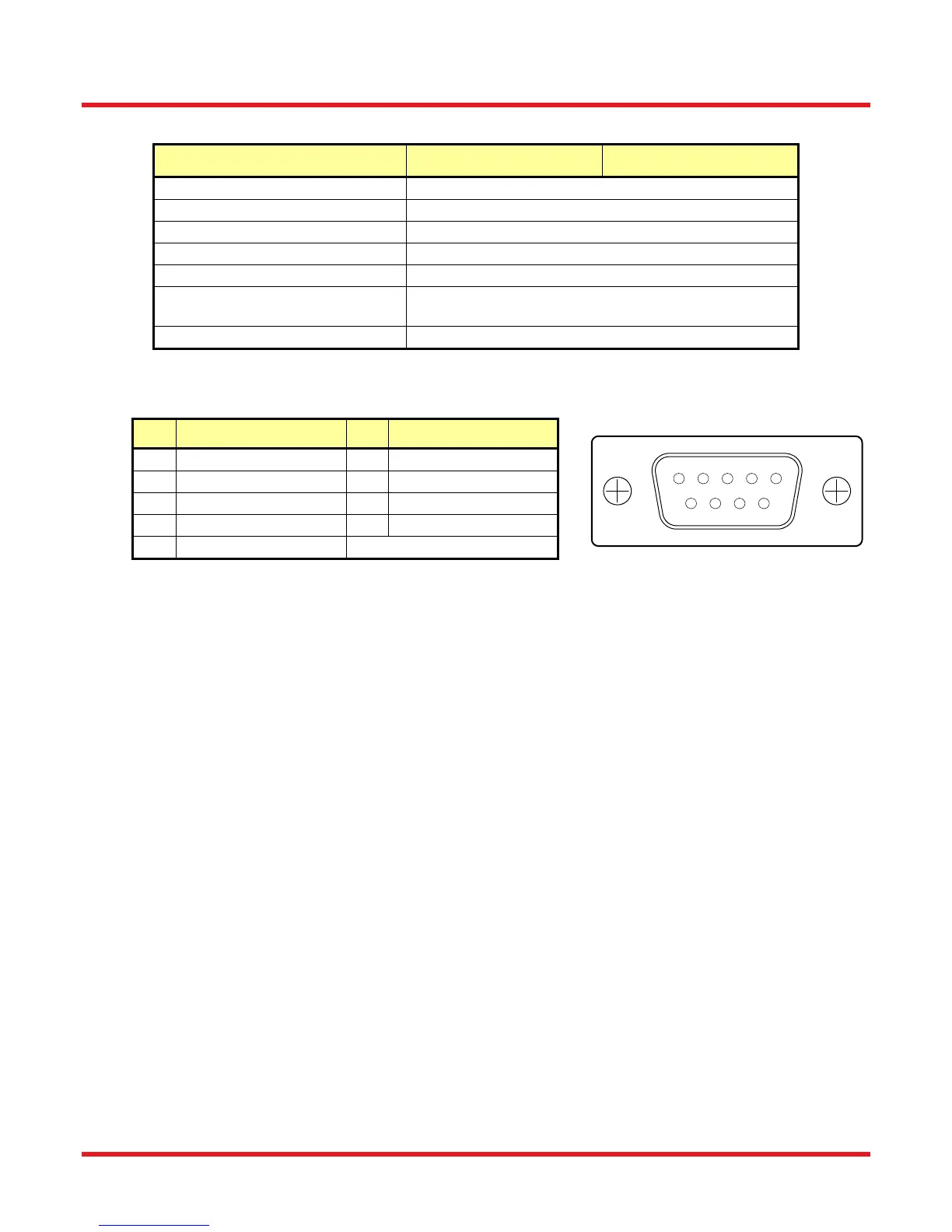

Physical characteristics and Interface 7.3.
Parameter FW102C(NEB) FW212C(NEB)
Trigger Jack
BNC Female
Power Jack
Male 2.1 MM
USB Connector
Mini B
Mounting
(2) 1/4"-20, 8-32, (2) M6, M4, (2) SM1 Thread
Max Planar Filter Width
0.25" (6.35 mm)
Dimensions (L x W x H) 5.44" x 1.85" x 4.39"
(138 mm x 47 mm x 112 mm)
Weight (Without Power Supply)
1.65 lbs. (0.75 kg)
Pin Diagram 7.4.
Pin Connector Pin Connector
1 N.C. 6 N.C.
2 TR2 (From Housing) 7 Connected to Pin 8
3 RX2 (To Housing) 8 Connected to Pin 7
4 N.C. 9 N.C.
5 Signal Ground
