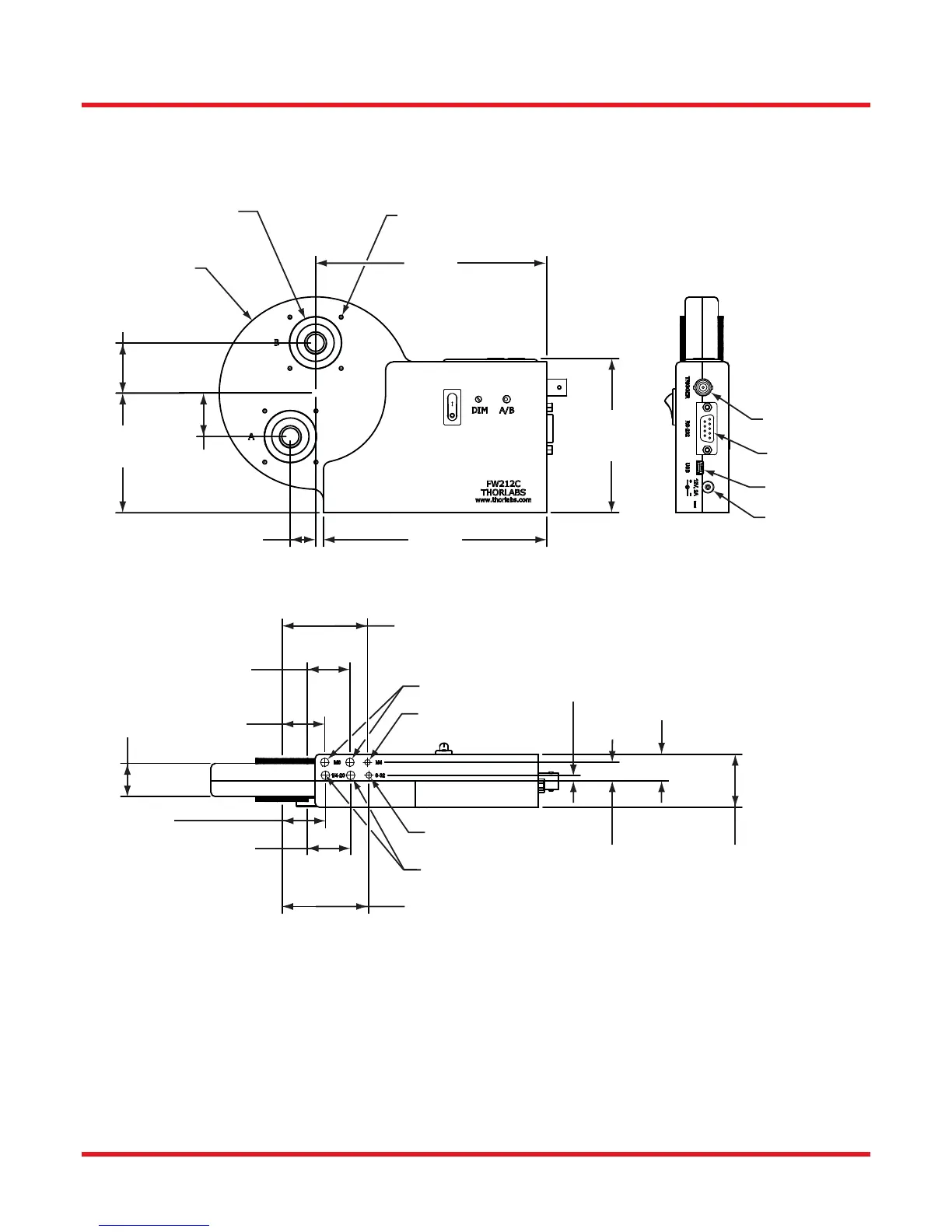

Motorized Filter Wheel Chapter 8: Mechanical Drawings
Rev H, October 2, 2014 Page 18
FW212C, FW212CNEB
8.2.
In/Out Trigger
Serial Port
USB Port
Power
8X 4-40 For 30 mm Cage Plate
5.33"
(135.4 mm)
Ø4.44"
(Ø112.7 mm)
SM1 (Ø1.035-40) Thread
2 Places Both Sides
1.16"
(29.5 mm)
2.76"
(70.1 mm)
1.00"
(25.5 mm)
0.58"
(14.7 mm)
5.15"
(130.8 mm)
0.76"
(19.4 mm)
1.00"
(25.4 mm)
2.00"
(50.8 mm)
1.00"
(25.4 mm)
0.98"
(25.0 mm)
1.97"
(50.0 mm)
0.98"
(25.0 mm)
0.13"
(3.2 mm)
0.43"
(10.8 mm)
0.62"
(15.6 mm)
1.23"
(31.1 mm)
8-32
M6X1.0
M4X0.7
1/4"-20
3.56"
(90.4 mm)
