Chapter 6 Interface Connector
The interface connector on the SHB025(T) is a 4-pin mini-DIN shielded female
connector that accepts the 4 pin mini-DIN male connector.
The pin descriptions are as follows:
Pin
Description
1
Shutter Detect
2
Modulation +
3
+5 VDC
4
Modulation -
SHIELD
GND

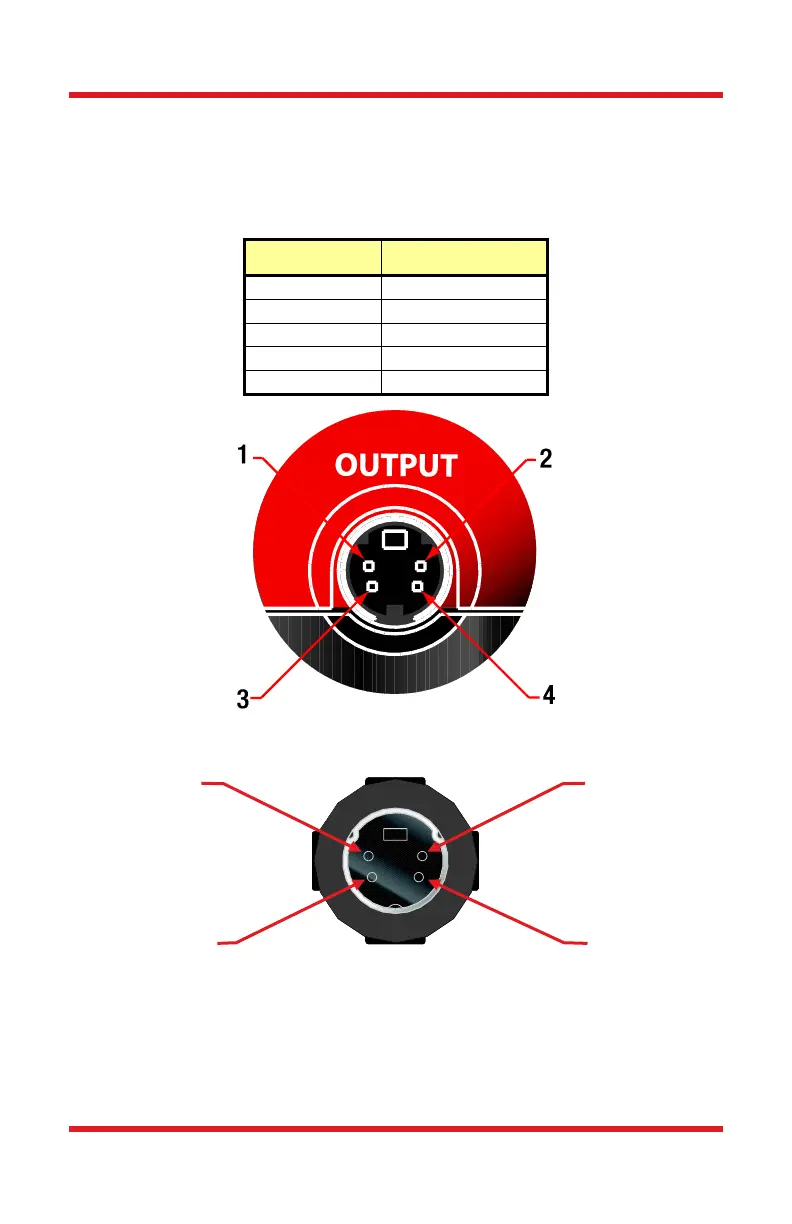

Figure 6 SHB025(T) Controller Pin-Out
Figure 7 SHB025(T) Shutter Pin-Out
3
4
1
2
