Ø1/4" Shutters and Controller Chapter 3: Description
Rev F, January 18, 2023 Page 5

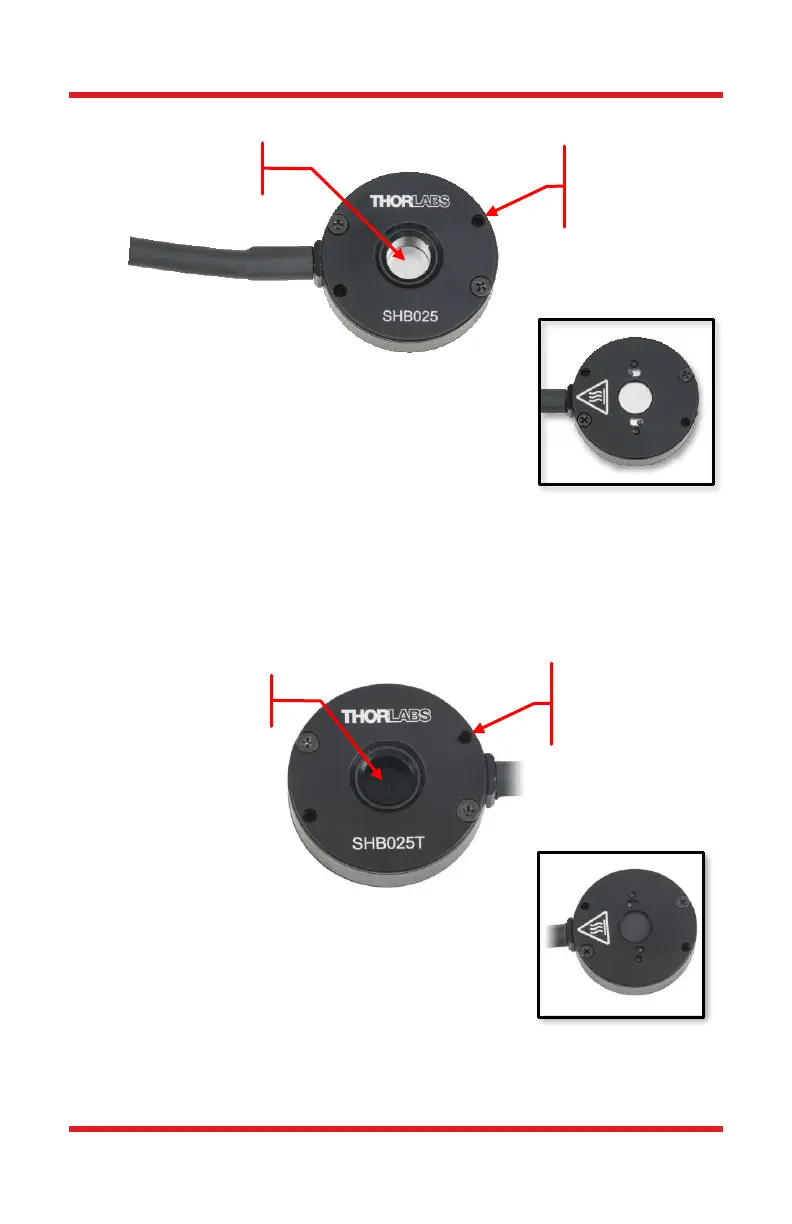

Figure 3 Shutter Head Front and Rear Views
Ø0.25" 2-Bladed
Aperture
Ø0.25" 2-Bladed
Aperture
SHB025 Shutter Head, Front
SHB025 Shutter Head, Rear
SHB025T Shutter Head, Rear
SHB025T Shutter Head, Front
Ø0.06"
Mounting
Through Hole,
2 Places
