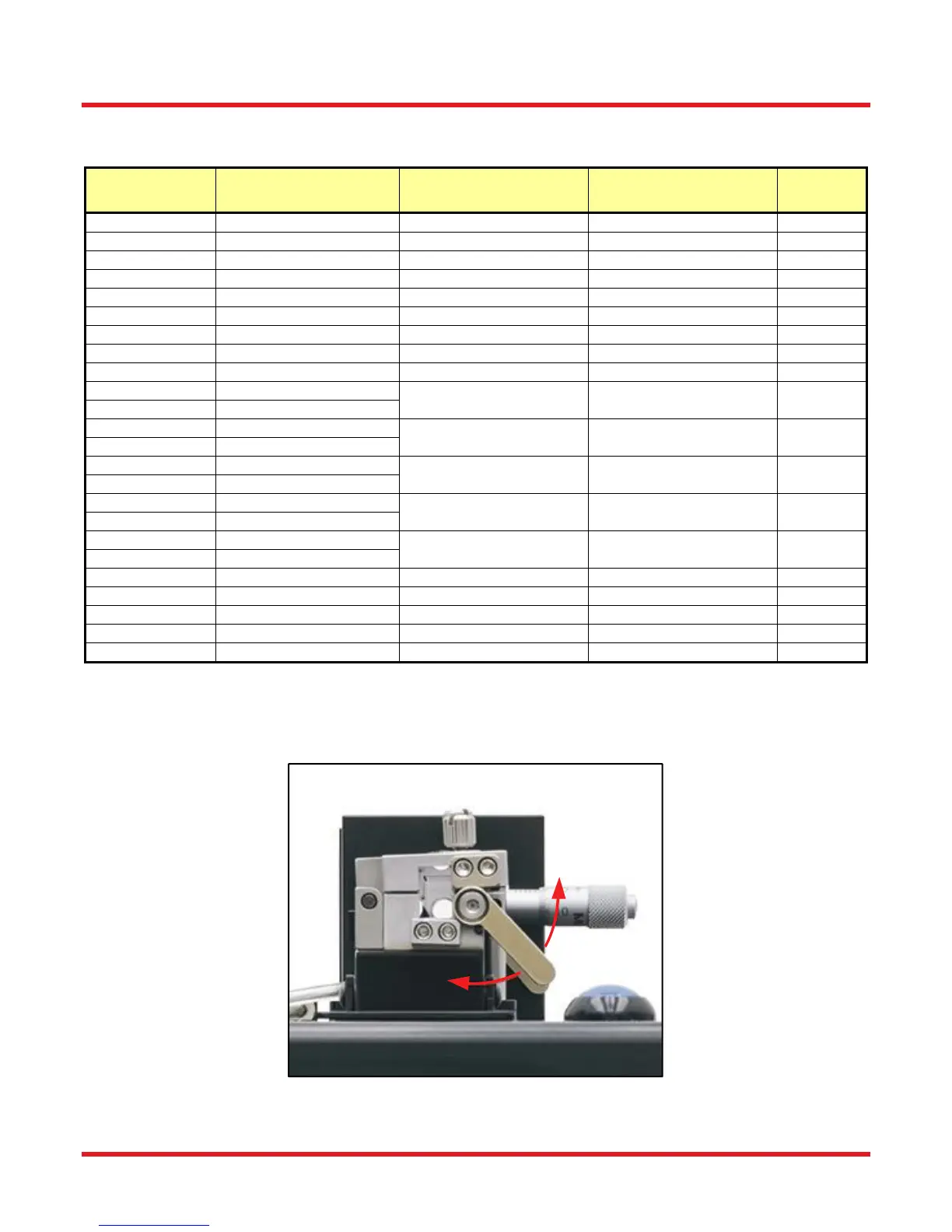

LDC401 & LDC401A Automated Cleavers Chapter 7: Cleaving
Page 12 TTN100064-D02
In the event that you wish to use a fiber that is between insert sizes, refer to the chart in Section 10.1 to determine
which inserts would be most suitable or use the Insert Selection tool in Tablet Controller.
Item #
Fiber Holder Insert
Type
Side 1 Min/Max
Accepted Diameter
Side 2 Min/Max
Accepted Diameter
Vacuum
Holes
VHA00
Top 57 µm / 759 µm 275 µm / 970 µm N/A
VHA05
Top 410 µm / 1008 µm 560 µm / 1269 µm N/A
VHA10
Top 812 µm / 1515 µm 1036 µm / 1770 µm N/A
VHA15
Top 1288 µm / 2022 µm 1534 µm / 2268 µm N/A
VHA20
Top 1772 µm / 2505 µm 2032 µm / 2944 µm N/A
VHA25
Top 2278 µm / 3029 µm N/A N/A
VHA30
Top 2609 µm / 3198 µm N/A N/A
VHD080
Bottom 57 µm / 100 µm N/A Yes
VHD125
Bottom 88 µm / 161 µm N/A Yes
VHD160
Bottom
112 µm / 208 µm N/A Yes
VHF160
Transfer Bottom
VHD250
Bottom
177 µm / 320 µm N/A Yes
VHF250
Transfer Bottom
VHD400
Bottom
279 µm / 519 µm N/A Yes
VHF400
Transfer Bottom
VHD500
Bottom
346 µm / 795 µm N/A Yes
VHF500
Transfer Bottom
VHD750
Bottom
516 µm / 1047 µm N/A Yes
VHF750
Transfer Bottom
VHE10
Bottom 773 µm / 1271 µm 1034 µm / 1523 µm No
VHE15
Bottom 1280 µm / 1769 µm 1534 µm / 2007 µm No
VHE20
Bottom 1787 µm / 2267 µm 2033 µm / 2513 µm No
VHE25
Bottom 2270 µm / 2844 µm N/A No
VHE30
Bottom 2692 µm / 3198 µm N/A No
Lifting levers are used to overcome the very high clamping forces of the FHB magnets. To lift the FHB lid, press
down on the lifting lever first, and then lift the Lid. When closing an FHB Lid, make sure that the lever is in the
downward position: this will prevent the FHB lid from slamming down on the fiber, possibly damaging it. After the
lid comes to rest on its lifting lever cam, it can be closed gently by lifting the lever.
Figure 11 A Lifting Lever Propping up the FHB Lid
