LDC401 & LDC401A Automated Cleavers Chapter 9: Controlling the LDC401 and LDC401A
Page 38 TTN100064-D02

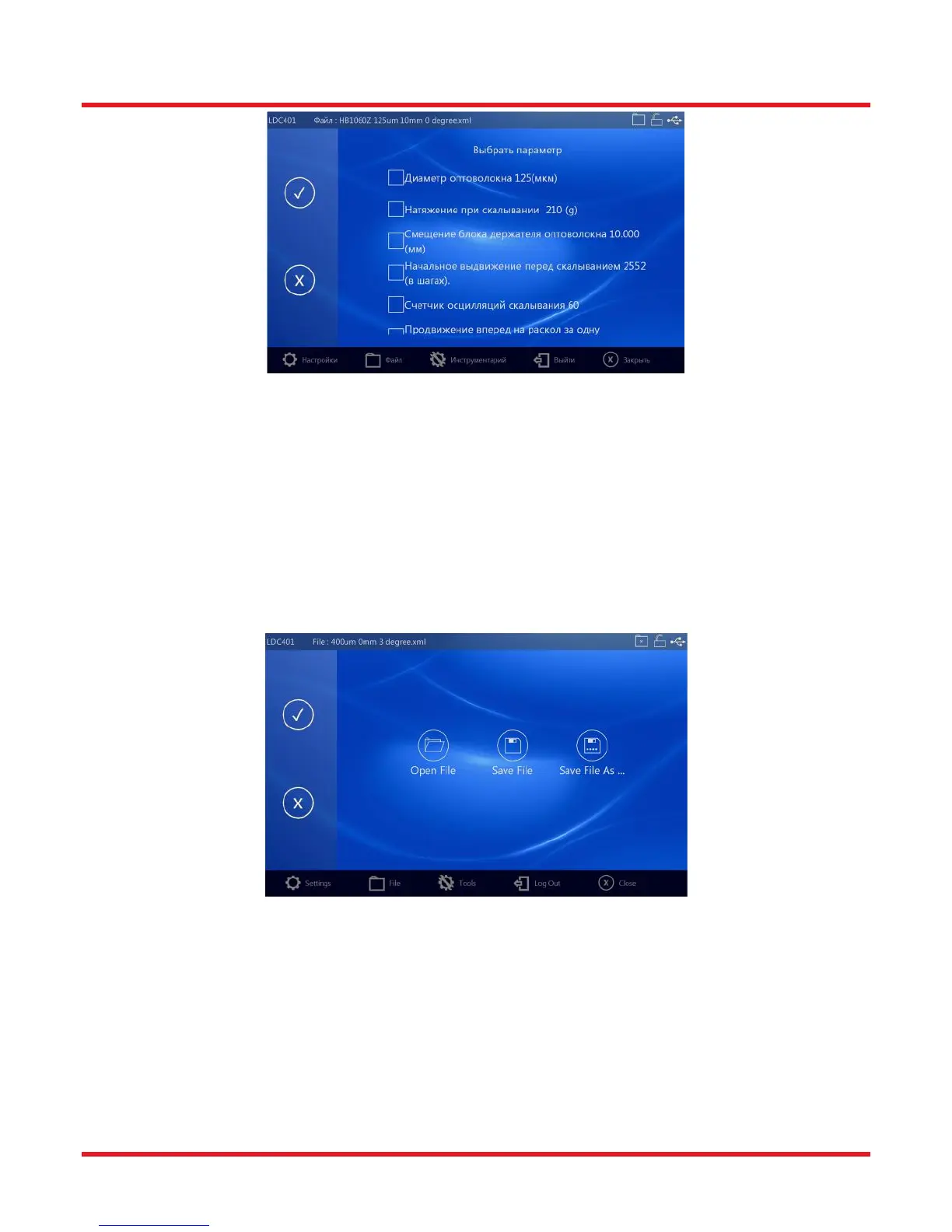

Figure 53 LDC Parameters Select in Russian
9.3.5. Comm Ports
The Comm Ports screen lists all communications ports detected by Tablet Controller which can be useful when
fault-finding a missing connection. Tablet Controller will normally auto-detect the correct USB serial Comm Port to
communicate with the LDC.
9.4. Files
Files are opened, saved or saved-as from Toolbar-File. The user is presented with those options. Note that if no file
is open, selecting Save File will open the Save File As screen and the current machine parameters will be saved to
the file specified. Open File and Save File As will open a file selection screen.
Figure 54 Toolbar – File Options Screen0.
