LDC401 & LDC401A Automated Cleavers Chapter 9: Controlling the LDC401 and LDC401A
Rev B, July 19, 2017 Page 33

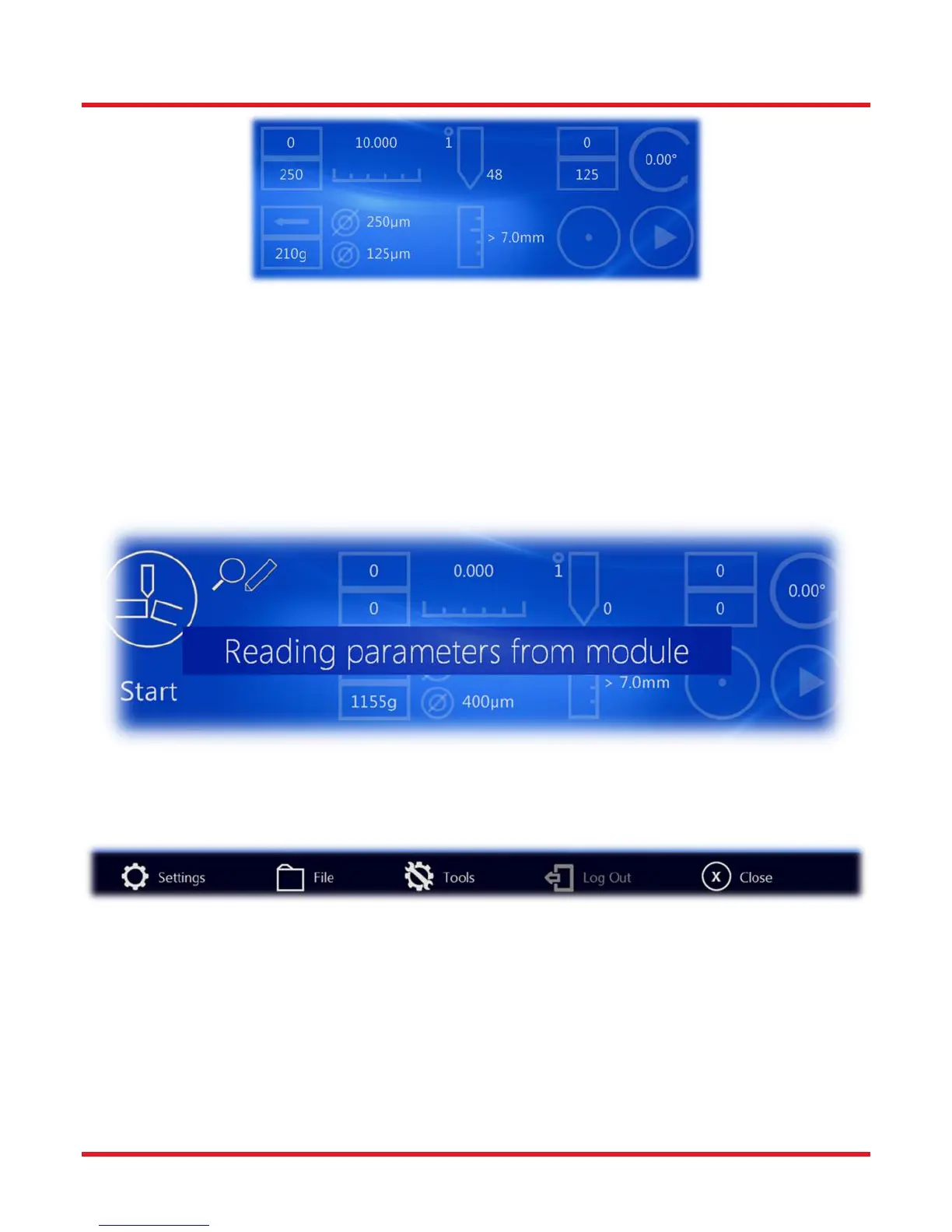

Figure 42 LDC Main Screen – Cleave Widget
From bottom left to bottom right:
Target tension
Fiber cladding and jacket diameter
Micrometer Backstop position
Regular cleave/Sub-critical cleave
Ready/Busy indicator
Runtime messages are displayed on the LDC Home screen when something important is happening such as
reading parameters from the LDC and uploading new parameters to the machine.
Figure 43 LDC Main Screen – Toast Messagers
The toolbar provides access to Tablet Controller settings, the file system, LDC specific tools, a fast Log-Out feature
and a close button to allow the user to exit the LDC Main Screen.
Figure 44 LDC Main Screen – Toolbar
9.3. Settings
Touch the toolbar Settings button to bring up the Settings Screen. These options are for configuring the Tablet
Controller and are generally not PTR/LDC dependent.
