LDC401 & LDC401A Automated Cleavers Chapter 9: Controlling the LDC401 and LDC401A
Page 30 TTN100064-D02
Once tension is reached, the Cleave Peck Indicator is also displayed.

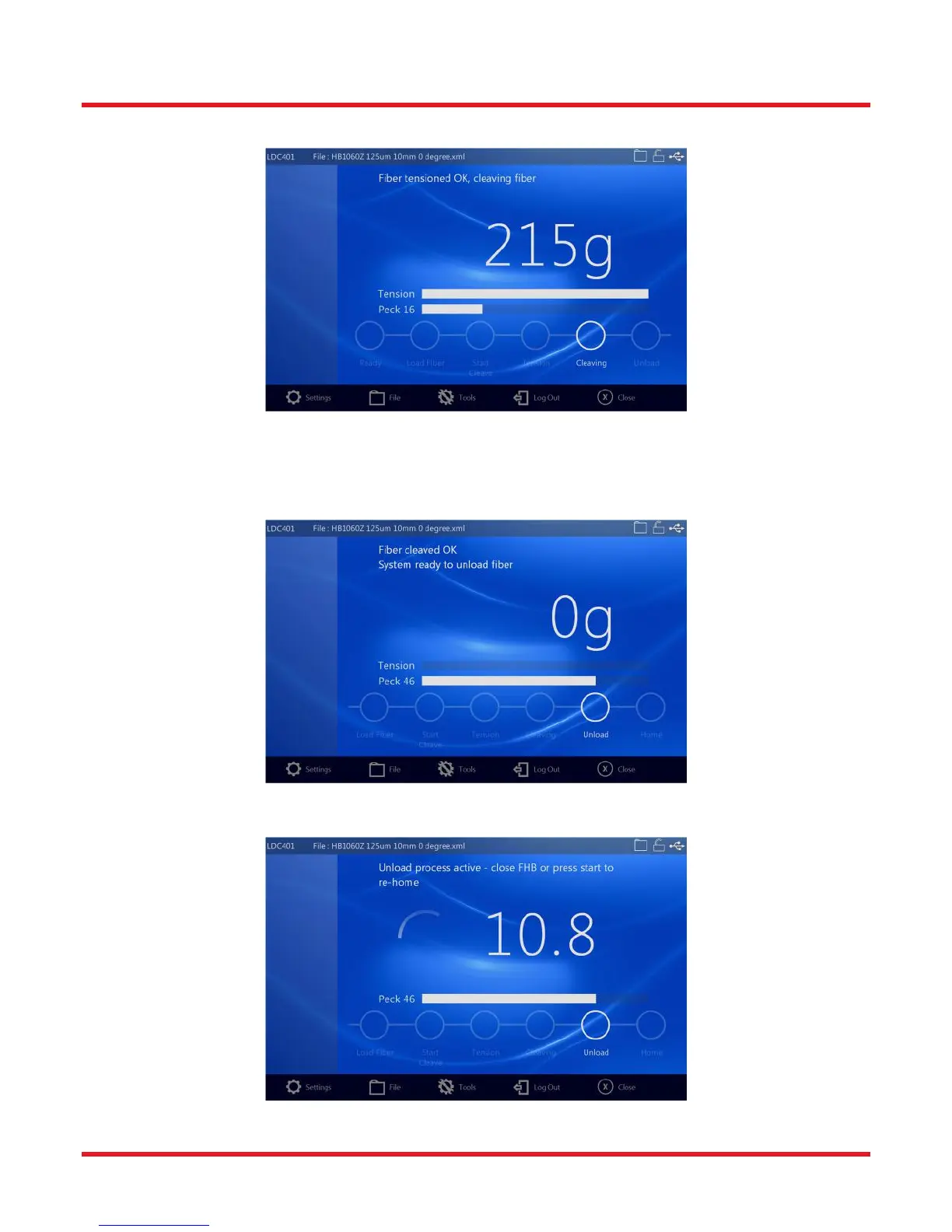

Figure 35 Cleave Screen – Tension and Peck
When the fiber is cleaved, the tension will drop to zero and the Cleave Peck Indicator remains on screen. The LDC
will wait for the user to start unloading the fiber (raising the left FHB lid).
Figure 36 Cleave Screen – Cleave Complete
Figure 37 Cleave Screen – Unload
