8

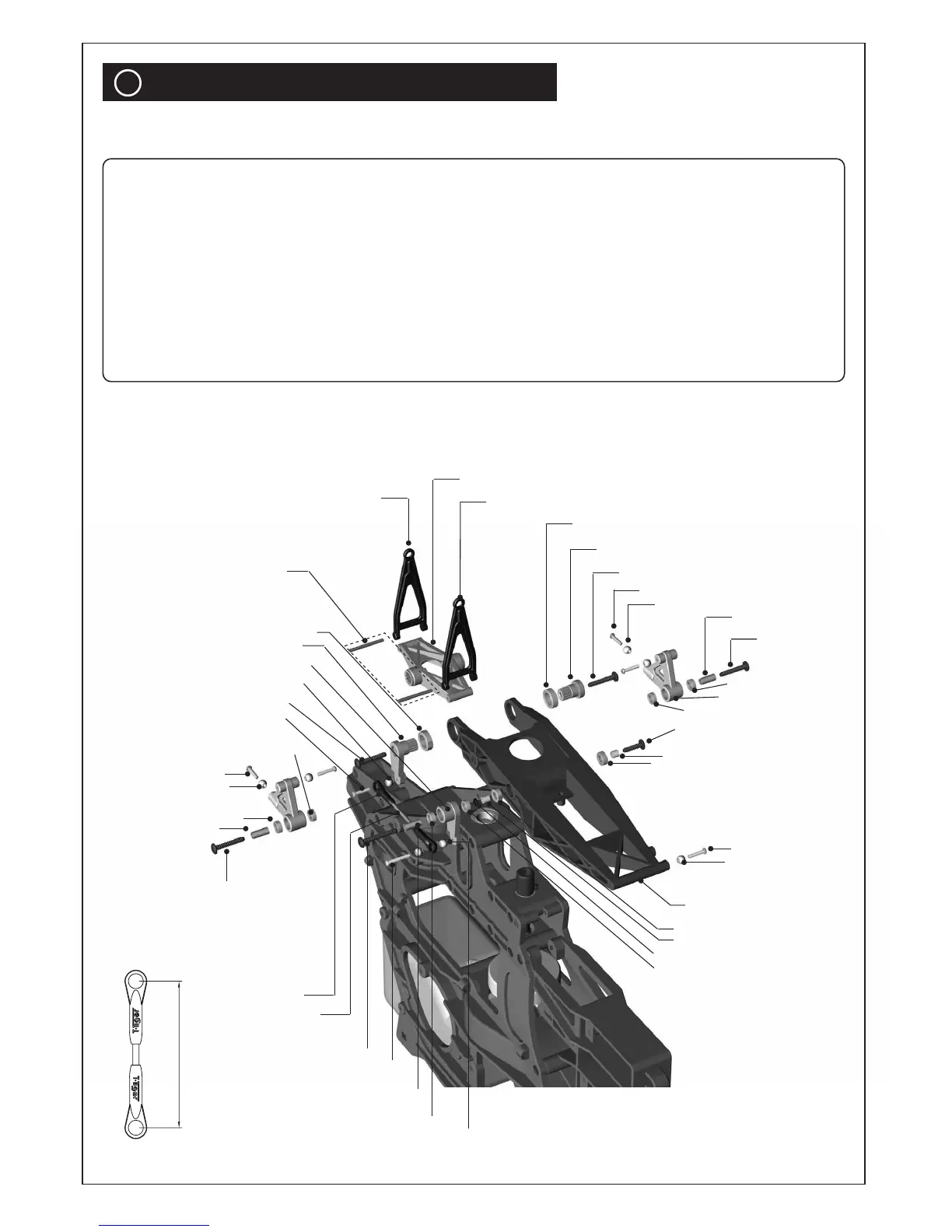

6Main Frame Assembly-Part2
Add a drop of CA to the two screws at the pivoting point of the collective pitch control arm.
Attach the linkage rod to the parallel elevator linkage balls.
(1) HSE3-18B
(2) HSE3-12B
(3) HMJ3-22B
(4) HMJ2-14N
(5) HMJ2-10N
(6) HMV1280
(7) HMV740ZZ
(8) HMV840ZZ
(9) BK0076
(10) BK0078
(1) HSE3-18B
(12) BK0084
(13) BK0075
(14) BK0023
(15) BK0018
(16) BK0020
(17) BK0022
(18) BK0019
(20) BK0093
(21) BK0021
(22) BK0017
(14) BK0023
(7) HMV740ZZ
(5) HMJ2-10N
(13) BK0075
(8) HMV840ZZ
(10) BK0078
(11) BK0088
(7) HMV740ZZ
(13) BK0075
(7) HMV740ZZ
(9) BK0076
(6) HMV1280
(13) BK0075
(1) HSE3-18B
(5) HMJ2-10N
(7) HMV740ZZ
(5) HMJ2-10N
(13) BK0075
(7) HMV740ZZ
(9) BK0076
(1) HSE3-18B
(19) BK0086
Warning, do not over-torque the self-tapping screws.
(1) HSE3-18B Self Tapping Screw(M3x18)....4
(2) HSE3-12B Self Tapping Screw(M3x12)... 1
(3) HMJ3-22B Self Tapping Screw(M3x22)....1
(4) HMJ2-14N Self Tapping Screw(M2x14)... 1
(5) HMJ2-10N Self Tapping Screw(M2x10)... 6
(6) HMV1280 Bearing (d8xD12xW3.5)......... 2
(7) HMV740ZZ Bearing (d4xD7xW2.5)........ 6
(8) HMV840ZZ Bearing (d4xD8xW3)............ 2
(9) BK0076 Collar......................................... 3
(10) BK0078 Collar ...................................... 2
(11) BK0088 Flat Washer ......................... 1
(12) BK0084 Pin .......................................... 2
(13) BK0075 Linkage Ball..............................8
(14) BK0023 Elevator Control Arm Link........ 2
(15) BK0018 Elevator Control Arm................ 1
(16) BK0020 Elevator Arm Control Shaft.......1
(17) BK0022 Aileron Control Lever................ 2
(18) BK0019 Elevator Arm Parallel Lever...... 1
(19) BK0086 Ball Link....................................2
(20) BK0093 Linkage Rod ............................ 1
(21) BK0021 Elevator Control Lever..............1
(22) BK0017 Collective Pitch Control Arm.....1
66mm
To Next Page
